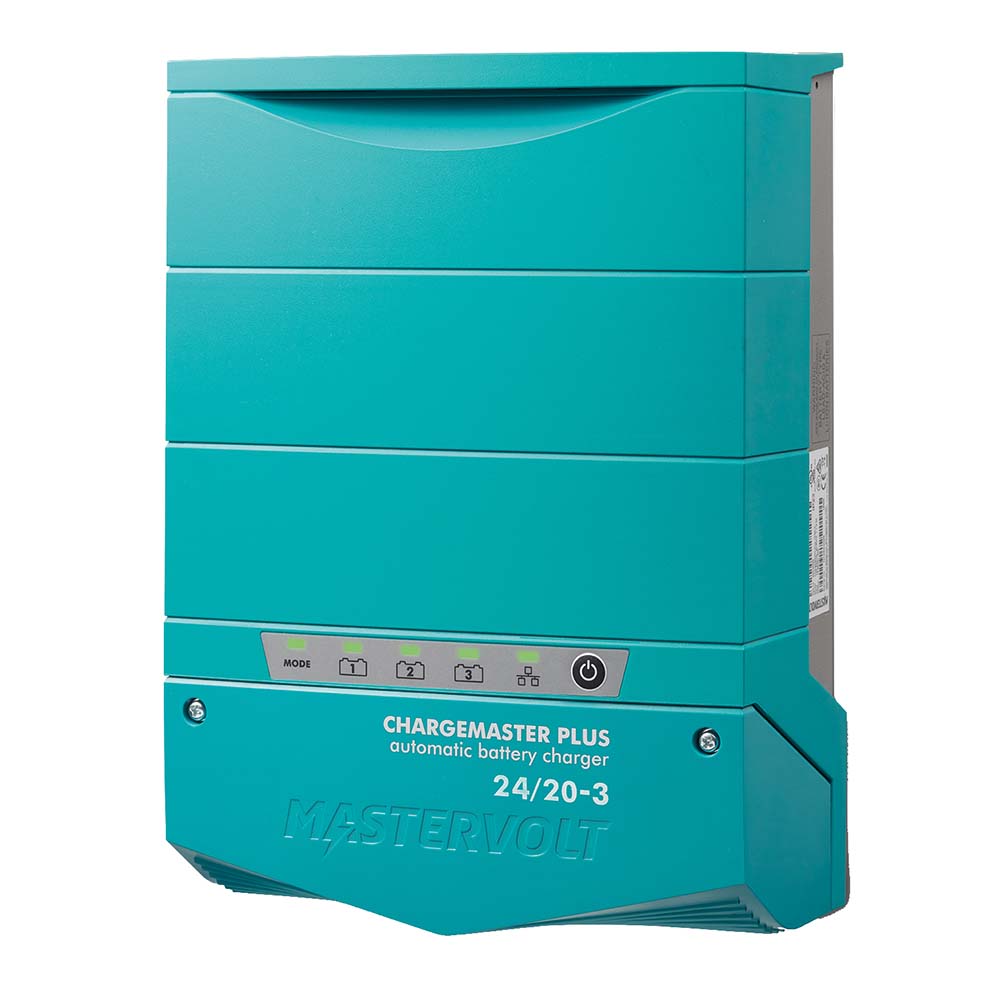

Mastervolt ChargeMaster Plus 24/20-3 Battery Charger

No reviews yet Write a Review
$750.20
SKU:
44320205
UPC:
816882022890
Condition:
New
5 customers are viewing this product

Mastervolt ChargeMaster Plus 24/20-3 Battery Charger

$750.20

Mastervolt ChargeMaster Plus 24/20-3 Battery Charger Product Description

ChargeMaster Plus 24/20-3 Battery Charger

Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.

All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2, and ChargeMaster 24/6). What’s more, you have the option for central, local, or remote monitoring, configuration, and control of your system.

Clear Display

A clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase, and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system.

The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

Features:

  • For recreational and semi-professional use.
  • Suitable for any type of battery, including Lithium-Ion batteries.
  • 3-Step+ charging technology for fast and complete charging also charges depleted batteries.
  • Memory function prevents overcharging in case of unreliable mains.
  • Safe and complete charging due to standard safety features.
  • Charging capacity up to 1000 Ah battery banks.
  • Easy to connect and quick to install.
  • Can charge multiple battery banks simultaneously.
  • Built-in system functionality (MasterBus) in combination with other Mastervolt products.
  • Clear control panel (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2, and ChargeMaster 24/6).
  • Supplies your system without a battery.

Charging your batteries with every voltage

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1-regulation gets the most out of limited generator capacity.

Robust Connections

Solid metal-to-metal connectors equipped with strain relief prevent corrosion and overheating.

Charging multiple battery banks

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two meters of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

DC Power Supply

Even if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold.

Specifications:

  • Nominal output voltage: 24 V
  • Total charge current: 20 A at 28.8 V
  • Number of battery outlets: 3
  • Charge current second output: 20 A
  • Charge current third output: 20 A
  • Battery bank size: 40-200 Ah
  • Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
  • AC connection: Connector strips
  • Power supply mode: Yes
  • Galvanic isolation: Yes
  • Display/read-out: LED display




Frequently Asked Questions (FAQ) About Mastervolt ChargeMaster Plus 24/20-3 Battery Charger



Who is the Mastervolt?

Energy supply that you can trust. Always and everywhere. That is Mastervolt's mission. With Mastervolt's products and systems, they offer you the power to be independent. Wherever you are, whatever you are doing. Towboat or luxury yacht. Cruise ship or dinghy. Those who sail - whether professionally or for pleasure - rely on the products and systems of Mastervolt.

How to describe Mastervolt ChargeMaster Plus 24/20-3 Battery Charger?

"

Mastervolt Chargemaster Plus 24/20-3 Battery Charger

Model: 44320205
  • Improved cooling technology results in very low noise levels across the entire power range.
  • Use as a standalone charger or as part of a complete system.
  • Automatic power distribution, maximum charging current possible on each output.
  • All 3 outputs can provide maximum current*
  • Pre-float eliminates the risk of overcharging.
  • Automatic current distribution - charging current distribution based on the condition of the battery.
  • Compatible with worldwide frequencies and mains voltages.
  • Smaller and lighter than the previous model.

The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

Specifications
General specifications
Nominal output voltage (output 1 & 2)24 V
Max. output current primary output20 A
Total charge current20 A @ 28,5 V
Max. AC current (230 V / 120 V)2,8 A / 5,6 A
Number of battery outlets3 (max.)
Battery bank size80-200 Ah
Nominal input voltage120/230 V (80-275 V) 50/60 Hz
Power supply modeYes
Galvanic isolationYes
Display/read-outLED display
Dimensions, hxwxd11.5 x 8.3 x 4.1 inch
Weight5.5 lb
ComplianceCE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
Communication interfacesMasterBus, CZone, NMEA2000
Technical specifications
Charge characteristicIUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation-30 mV/°C / -17 mV/°F; temperature sensor included
DC voltage compensationYes, via automatic compensation or MasterShunt
Power consumption (DC side)yes, through MasterBus or Czone
Current Control functionyes, through MasterBus
Power factor control> 0.98
Temperature range (ambient temp.)-25 °C to 80 °C, derating < 0 °C and > 40 °C
Coolingvario fan
Protection degreeIP23, vertical mounting
Protectionsover-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection
MasterBus compatibleyes
Charger Status Interface (alarm contact)yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:
  • Chargemaster Plus 24/20-3
  • Temp Sensor
  • Wall Bracket
  • Drop cable CZone/MB (1m)
  • MasterBus Terminator
  • User and installation manual.
  • "
    • ChargeMaster Plus 24/20-3 Battery Charger is the most versatile and cost-effective solution for charging your batteries.
    • It has been specially designed for all types of batteries, including sealed, valve regulated lead acid (VRLA), deep cycle and gel batteries.
    • The ChargeMaster Plus series is the perfect match for any battery charging need.
    • Charges your batteries anywhere in the world.
    • Consistent and fast charging with Mastervolt's patented algorithms.
    • Compatible with all types of battery types from lead-acid to lithium ion.
    • ChargeMaster Plus 24/20-3 Battery Charger with 3x the power of a regular charger, and 2x the power of a standard charger
    • Charges batteries anywhere in the world, with no need for voltage converters or adapters
    • Automatically switches to a trickle charge when battery is fully charged


Save $103 when you buy the Mastervolt ChargeMaster Plus 24/20-3 Battery Charger for only $682 from NVN Marine! Same day free shipping before 3pm.

Mastervolt ChargeMaster Plus 24/20-3 Battery Charger Technical Specifications
