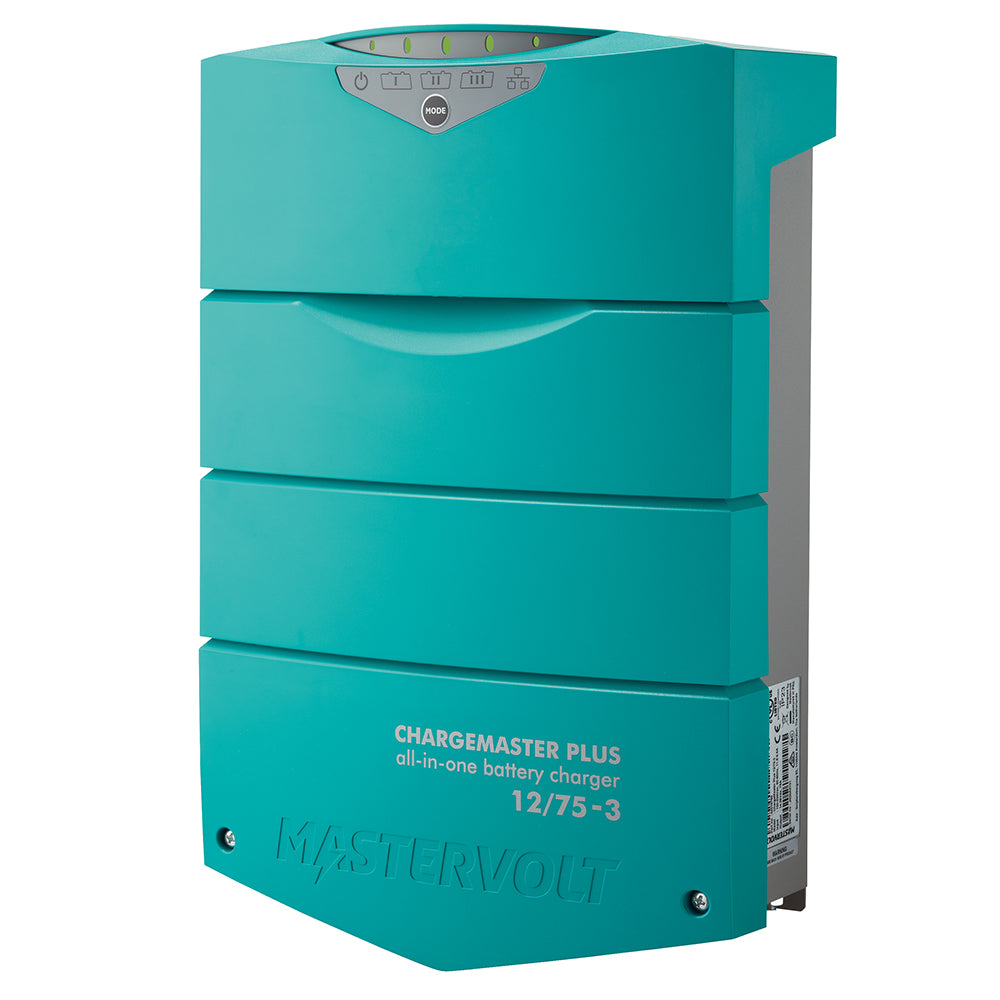

Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank Product Description

MasterVolt ChargeMaster Plus 12/75-3 CZone Battery Charger120/230 Volt-50/60Hz Input, 12 VDC-75 Amp Output, 3-Bank, Also Charges from AlternatorChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of three batteries in a fast and safe way and works anywhere in the world.With the new Battery's Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:Revival mode: automatically revives even fully depleted batteries.Priority Charge: redirect available power to the lowest battery, for faster charging.Smart Input: charge all three batteries from one single alternator for continuous charging on the go.The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, ChargeMaster Plus is CE, E-mark, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternator's energy is funnelled through to the batteries.In modern applications, all components work together. CAN-based MasterBus enables the charger to communicate with displays, shunts and power systems including communication standards like CZone, NMEA and CANopen. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Mastervolt 44310755 Attributes

• Number Of Banks: 3
• Application: AGM/ Flooded/ Gel/ Lithium Ion Batteries
• Output Voltage: 12 Volt
• Input Voltage: 80 To 275 Volt
• Ampere Rating: 75 Amp Charging
• Number Of Stages: 3 Stage
• Universality: Fully Universal
• Length (IN): 15.1 Inch
• Width (IN): 9.8 Inch
• Height (IN): 5 Inch

Mastervolt 44310755 Features & Benefits

• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
• Charges multiple batteries while being underway.
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 deg. C.
• Safe Charge: quickly recognize the State of Charge for extended battery life.
• Very wide operating range of 80-275 V AC, 35-70 Hz.
• Compact, easy to connect and quick to install.
• MasterBus, NMEA, and Czone compatible
• Limited 2 Year Warranty

ChargeMaster Plus 12/75-3 CZone - 3-Bank

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

Battery’s Best Friend

With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

• Revival mode: automatically revives even fully depleted batteries.
• Priority Charge: redirect available power to the lowest battery, for faster charging.
• Smart Input: charge all three batteries from one single alternator for continuous charging on the go.

Global Charging

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

System Simplicity

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

Powerful Connections

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Features:

• MasterBus, CZone and NMEA communication
• Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR
• Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger
• Charges multiple batteries while being underway
• Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C
• Safe Charge: quickly recognize the State of Charge for extended battery life
• Very wide operating range of 80-275 V AC, 35-70 Hz
• Compact, easy to connect and quick to install

Specifications:

• Nominal Output Voltage: 12V
• Max Charge Current Per Output: 75A
• Number of Battery Outlets: 3 (max.)
• Display/Read-Out: LED Display
• Total Charge Current: 75A at 14.4V

Mastervolt·12 Volt·Fast Charging·75 mAh ChargeMaster Plus is a next-generation battery charger that integrates multiple functions into one device. Replacing auxiliary chargers, battery isolators and VSRs, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it can quickly and safely charge almost any combination of three batteries, and it can work anywhere in the world.



Save $371 when you buy the Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank for only $1275 from NVN Marine! Same day fast and free shipping before 3pm.

Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank Technical Specifications

Type:	Electrical | Battery Chargers
Vendor:	Mastervolt
Weight:	16.6 lb
Portable:	No
Charging Banks:	3
Charger Output Voltage:	12v
Charger Output - Amps:	75a
Charger Input - Voltage:	120/230v
Product Manual:	Download PDF
