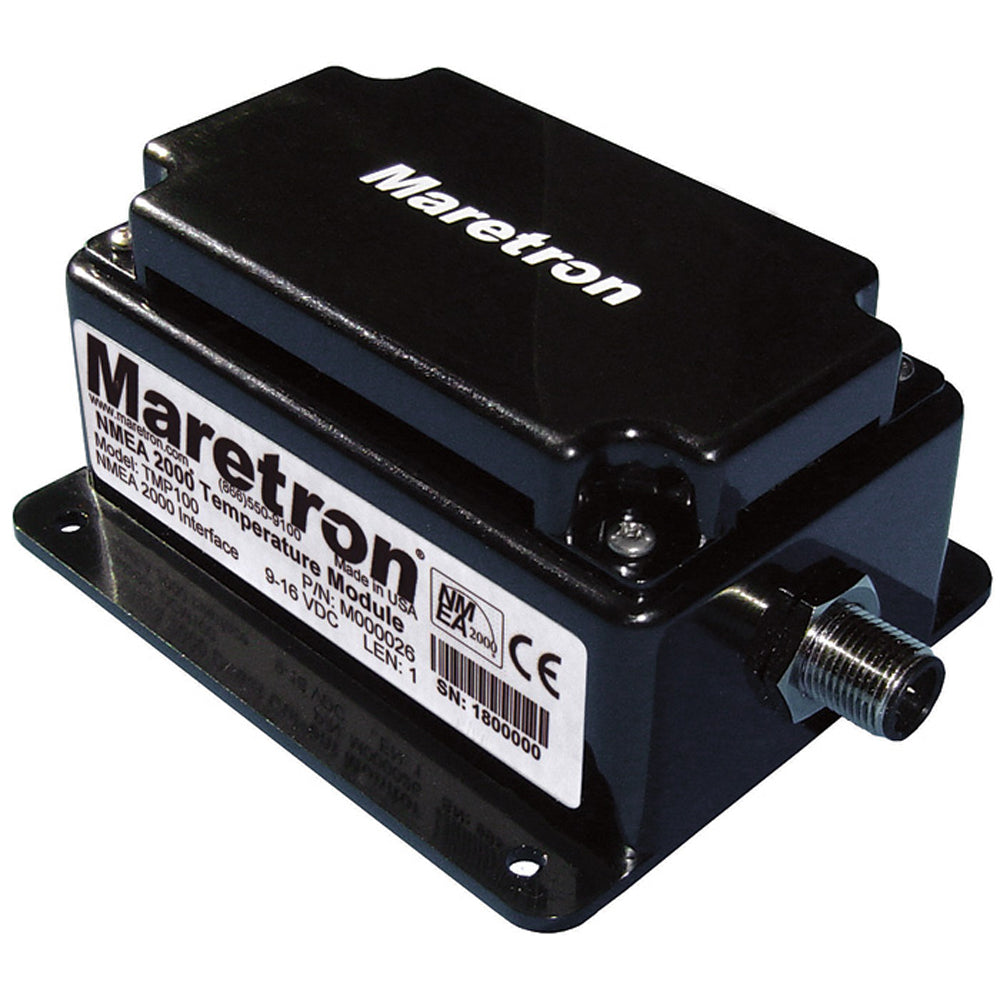

Maretron TMP100 Temperature Module

No reviews yet Write a Review
$262.59
26 sold in last 12 hour
SKU:
TMP100-01
UPC:
873804000220
Condition:
New
5 customers are viewing this product

Maretron TMP100 Temperature Module

$262.59

Maretron TMP100 Temperature Module Product Description

Maretron's TMP100 measures the Temperature for up to 6 Temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high Temperature thermocouple probes. Optional thermistor probes (-20°C to 80°C or -4°F to 176°F) cover a wide range of applications including cabin air Temperature, engine room air Temperature, refrigerator/freezer Temperature, under bolt Temperature (inverters, charges, pumps, motors, etc.), tank Temperatures (live well bait, hot water, etc.), and air duct Temperatures. The optional thermocouple probes (0°C to 900°C or 32° to 1652°F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Best of all, the TMP100 is NMEA 2000 certified so you can view any and all temperature information anywhere on the vessel using a compatible NMEA 2000 display. The TMP100 is a key component of Maretron's N2KView vessel monitoring and control system.



Maretron TMP10001 Attributes


Maretron's TMP100 measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20 deg. C to 80 deg. C or -4 deg. F to 176 deg. F) cover a wide range of applications including cabin air temperature, engine room air temperature, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc), tank temperatures (live well bait, hot water, etc) and air duct temperatures. The optimal thermocouple probes (0 deg. C to 900 deg. C or 32 deg. F to 1652 deg. F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Maretrons TMP100 can measure the temperature of up to 6 temperature probes and report the information through the NMEA 2000 network. TMP100 supports up to 4 thermistor probes...

  • Six external temperature probes are measured and broadcast Over NMEA 2000 network
  • Four channels for thermistor probes and two channels for high temperature thermocouple probes
  • Wide variety of applications supported with optional temperature probes


Optional Temperature Probes:


  • Ambient Air Temperature Probe (-20°C to 80°C or -4°F to 176°F)
  • Ring Terminal Probe (-20°C to 80°C or -4°F to 176°F)
  • Immersion Probe for Tanks or Plenums (-20°C to 80°C or -4°F to 176°F)
  • Exhaust Gas Temperature Probe (0°C to 900°C or 32° to 1652°F)


Applications:


  • Cabin temperature
  • Engine room temperature
  • Under bolt temperature (Inverters, chargers, pumps, etc.)
  • Refrigerator / freezer temperature
  • Tank temperatures (Live well bait, hot water, etc.)
  • Air duct temperature
  • Exhaust gas temperature


Electrical:


  • Number of Thermistor Channels: 4
  • Number of Thermocouple Channels: 2
  • Measurement Range – Thermistor: -20°C to 80°C (-4°F to 176°F) (With supplied thermistor probe)
  • Measurement Accuracy – Thermistor: ± 2°C (± 3.6°F) (With supplied thermistor probe)
  • Measurement Range – Thermocouple: 0°C to 900°C (32°F to 1652°F) (With supplied thermocouple probe)
  • Measurement Accuracy – Thermocouple: ± 2°C (± 3.6°F) (With supplied thermocouple probe)
  • Operating Voltage: 9 to 32 Volts (DC Voltage)
  • Power Consumption: 100 mA (NMEA 2000 Interface)
  • Load Equivalence Number (LEN): 2 (NMEA 2000 Spec. [1LEN = 50 mA])
  • Reverse Battery Protection: Yes (Indefinitely)
  • Load Dump Protection: Yes (Energy Rated per SAE J1113)














Frequently Asked Questions (FAQ) About Maretron TMP100 Temperature Module









Who is the Maretron?

Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.

How to describe Maretron TMP100 Temperature Module?

Maretron's TMP100 measures the Temperature for up to 6 Temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high Temperature thermocouple probes. Optional thermistor probes (-20°C to 80°C or -4°F to 176°F) cover a wide range of applications including cabin air Temperature, engine room air Temperature, refrigerator/freezer Temperature, under bolt Temperature (inverters, charges, pumps, motors, etc.), tank Temperatures (live well bait, hot water, etc.), and air duct Temperatures. The optional thermocouple probes (0°C to 900°C or 32° to 1652°F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Best of all, the TMP100 is NMEA 2000 certified so you can view any and all temperature information anywhere on the vessel using a compatible NMEA 2000 display. The TMP100 is a key component of Maretron's N2KView vessel monitoring and control system.

What is the exterior color of product?

Black

In which country this product made in?

USA

What's the Maretron TMP100 Temperature Module package dimensions and weight?

7 (w) X 2 (h) X 9.5 (l) inches and the weight is: 1.26 lb.

What is the connector type of the product?

NMEA2000 Micro

What is the communication method of the product?

NMEA 2000

What is the manufacturer notes about Maretron TMP100 Temperature Module?

Maretron's TMP100 measures the Temperature for up to 6 Temperature probes and reports the information over an NMEA 2000 network. The TMP100 supports up to 4 thermistor probes and 2 high Temperature thermocouple probes. Optional thermistor probes (-20°C to 80°C or -4°F to 176°F) cover a wide range of applications including cabin air Temperature, engine room air Temperature, refrigerator/freezer Temperature, under bolt Temperature (inverters, charges, pumps, motors, etc.), tank Temperatures (live well bait, hot water, etc.), and air duct Temperatures. The optional thermocouple probes (0°C to 900°C or 32° to 1652°F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.

Best of all, the TMP100 is NMEA 2000 certified so you can view any and all temperature information anywhere on the vessel using a compatible NMEA 2000 display. The TMP100 is a key component of Maretron's N2KView vessel monitoring and control system.



Save $42 when you buy the Maretron TMP100 Temperature Module for only $262 from NVN Marine! Same day shipping before 3pm.

Maretron TMP100 Temperature Module Technical Specifications

Type:

Vendor:

Maretron

Weight:

1.25 lb

User Guide:

Product Manual:

Product Brochure:

Product Installation:
