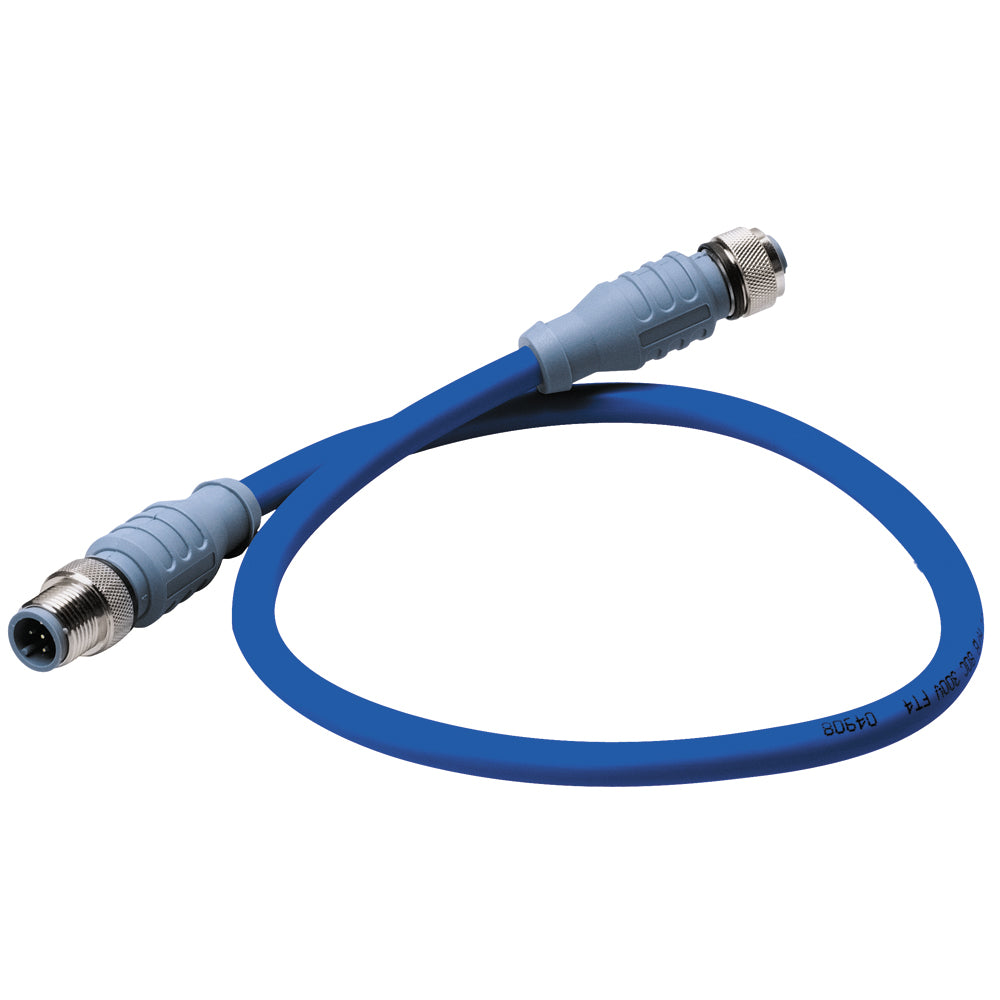

Maretron Mid Double-Ended Cordset - 1 Meter - Blue

No reviews yet Write a Review
$27.49
SKU:
DM-DB1-DF-01.0
UPC:
873804001906
Condition:
New
5 customers are viewing this product

Maretron Mid Double-Ended Cordset - 1 Meter - Blue

$27.49

Maretron Mid Double-Ended Cordset - 1 Meter - Blue Product Description

Mid Double-Ended Cordset - M to F - 1m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron DMDB1DF010 Attributes


Mid Double-Ended Cordset - 1 Meter - Blue

Double-ended cordsets are used for trunk or drop lines and make for a secure
connection and simple timesaving installation. The connectors are keyed for
error-free connection and are waterproof for continued operation even while
submerged in the bilge.

Features:
  • Rugged, IP68 rated connectors for continued connection integrity in
    marine environments
  • Various cable lengths to match installatin requirements
  • Optimized for voltage drop sensitive networks (long runs) because power
    pair wires have half the resistance of Micro cable
  • Color: Blue


The middle double-ended cable set-1 meter-the blue double-ended cable set is used for the trunk line or the lead-in line, which can ensure safe connection and simple time-saving installation. This ...

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59”


ELECTRICAL:


  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
  • CABLE Outer Jacket Mat/Color: PVC/Blue
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)


ENVIRONMENTAL:


  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40°C to 80°C to (-40°F to 176°F)


APPROVALS:


  • (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3


Frequently Asked Questions (FAQ) About Maretron Mid Double-Ended Cordset - 1 Meter - Blue











Who is the Maretron?

Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.

How to describe Maretron Mid Double-Ended Cordset - 1 Meter - Blue?

Mid Double-Ended Cordset - M to F - 1m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

What is the exterior color of product?

Blue

In which country this product made in?

Mexico

What's the Maretron Mid Double-Ended Cordset - 1 Meter - Blue package dimensions and weight?

6 (w) X 1 (h) X 7 (l) inches and the weight is: 0.29 lb.

What is the connector type of the product?

NMEA2000 Mid

What is the length of cable (feet)?

3'

What is the length of cable?

1 m (3.3')

What is the communication method of the product?

NMEA 2000

What is the manufacturer notes about Maretron Mid Double-Ended Cordset - 1 Meter - Blue?

Mid Double-Ended Cordset - M to F - 1m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.


Save $3 when you buy the Maretron Mid Double-Ended Cordset - 1 Meter - Blue for only $27 from NVN Marine! Same day shipping before 3pm.

Maretron Mid Double-Ended Cordset - 1 Meter - Blue Technical Specifications

Type:

Vendor:

Maretron

Weight:

0.3 lb

Cable Length (Feet):

3'
