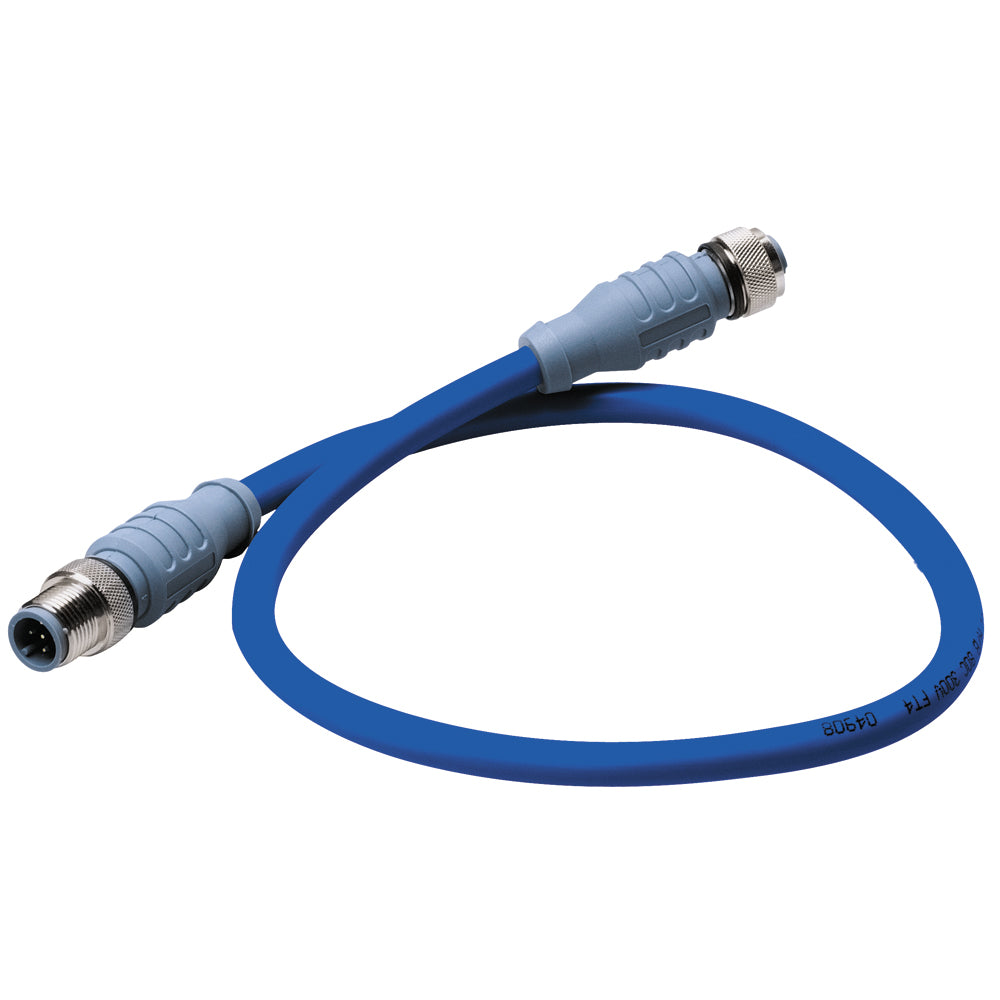

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue

No reviews yet Write a Review
$26.49
SKU:
DM-DB1-DF-00.5
UPC:
873804001890
Condition:
New
5 customers are viewing this product

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue

$26.49

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue Product Description

Mid Double-Ended Cordset - M to F - .5m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron DMDB1DF005 Attributes


Maretron Mid Double-Ended Cordset - 0.5 M Blue

Mechanical:
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Male to female. The double-ended cable set is used for the trunk line or the lead-in line to ensure a firm connection and save installation time. The connector's key prevents errors...

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59”


    ELECTRICAL:


    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V
    • CABLE Outer Jacket Mat/Color: PVC/Blue
    • Conductor Insulation Material: PE (data pair), PVC (power pair)
    • Number of Conductors: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
    • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)


    ENVIRONMENTAL:


    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40°C to 80°C to (-40°F to 176°F)


    APPROVALS:


    • (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
    • NMEA: NMEA 2000 Approved
    • IEC: IEC 61162-3


    Frequently Asked Questions (FAQ) About Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue











    Who is the Maretron?

    Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.

    How to describe Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue?

    Mid Double-Ended Cordset - M to F - .5m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

    What is the exterior color of product?

    Blue

    In which country this product made in?

    Mexico

    What's the Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue package dimensions and weight?

    5 (w) X 1 (h) X 7 (l) inches and the weight is: 0.18 lb.

    What is the connector type of the product?

    NMEA2000 Mid

    What is the length of cable (feet)?

    2'

    What is the length of cable?

    0.5 m (1.6')

    What is the communication method of the product?

    NMEA 2000

    What is the manufacturer notes about Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue?

    Mid Double-Ended Cordset - M to F - .5m (blue) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.


    Save $3 when you buy the Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue for only $26 from NVN Marine! Same day shipping before 3pm.
  • Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue Technical Specifications

    Type:

    Vendor:

    Maretron

    Weight:

    0.2 lb

    Cable Length (Feet):

    2'
