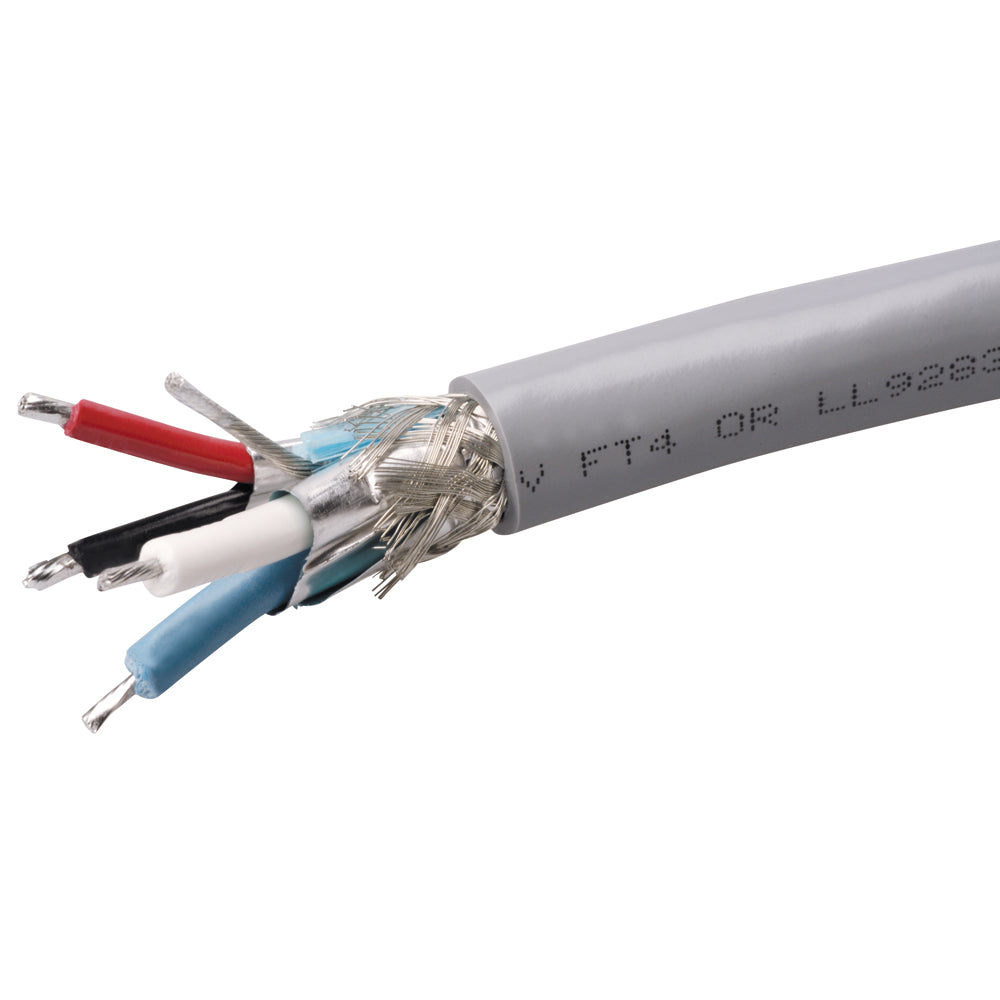

Maretron Mid Bulk Cable - 100 Meter - Gray

No reviews yet Write a Review
$431.49
SKU:
DG1-100C
UPC:
873804003030
Condition:
New
5 customers are viewing this product

Maretron Mid Bulk Cable - 100 Meter - Gray

$431.49

Maretron Mid Bulk Cable - 100 Meter - Gray Product Description

Mid bulk cable is primarily used as drop cable, but it can also be used at the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths. Meets and exceeds NMEA 2000 specifications for the highest reliability. Used with field-attachable connectors to build exact length cables at the job site (not included). Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable.

Maretron DG1100C Attributes


Specifications

Overall
  • Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair
  • Wire: 2x20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    Maretron medium-sized bulk cable (one piece per 100-meter spool-gray) DG1-100C medium-sized bulk cable is mainly used as a drop cable, but it can be used as a trunk line according to network power requirements. The maximum medium cable is 4A. Use field connectable miniature connectors (not included).

    • Outer Jacket Mat/Color: PVC/Gray
    • Insulation Material: PE (data wires), PVC (power wires)
    • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
    • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)


    POWER PAIR:


    • Wire: 2x16 (1.29mm) AWG
    • Resistance/Conductor: 4.1 Ohms/1000 ft max
    • Max Amperage: 14 Amps
    • Color Code: Red/Black


    DATA PAIR:


    • Wire: 2x20 (0.81mm) (AWG)
    • Characteristic Impedance: 120 Ohms ± 10%
    • Capacitance: 10.75 pF/ft
    • Color Code: White/Blue


    APPROVALS:


    • UL: PLTC 75°C Sunlight Resistant E90625,
    • AWM 80°C 300V
    • CSA: CMX-OUTDOOR-CMG LL54185 75°C,
    • AWM I/II A/B 80C 300V FT4
    • NMEA: NMEA 2000 Approved
    • IEC: IEC-61162-3


    Frequently Asked Questions (FAQ) About Maretron Mid Bulk Cable - 100 Meter - Gray











    Who is the Maretron?

    Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.

    How to describe Maretron Mid Bulk Cable - 100 Meter - Gray?

    Mid bulk cable is primarily used as drop cable, but it can also be used at the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths. Meets and exceeds NMEA 2000 specifications for the highest reliability. Used with field-attachable connectors to build exact length cables at the job site (not included). Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable.

    What is the exterior color of product?

    Gray

    In which country this product made in?

    USA

    What's the Maretron Mid Bulk Cable - 100 Meter - Gray package dimensions and weight?

    13 (w) X 13 (h) X 13 (l) inches and the weight is: 25.8 lb.

    What is the connector type of the product?

    Bare Wire

    What is the length of cable (feet)?

    328'

    What is the length of cable?

    100 m (328')

    What is the communication method of the product?

    NMEA 2000

    What is the manufacturer notes about Maretron Mid Bulk Cable - 100 Meter - Gray?

    Mid bulk cable is primarily used as drop cable, but it can also be used at the trunk line depending on network power requirements. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths. Meets and exceeds NMEA 2000 specifications for the highest reliability. Used with field-attachable connectors to build exact length cables at the job site (not included). Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable.


    Save $71 when you buy the Maretron Mid Bulk Cable - 100 Meter - Gray for only $431 from NVN Marine! Same day shipping before 3pm.
  • Maretron Mid Bulk Cable - 100 Meter - Gray Technical Specifications

    Type:

    Vendor:

    Maretron

    Weight:

    25.0 lb

    Cable Length (Feet):

    328'
