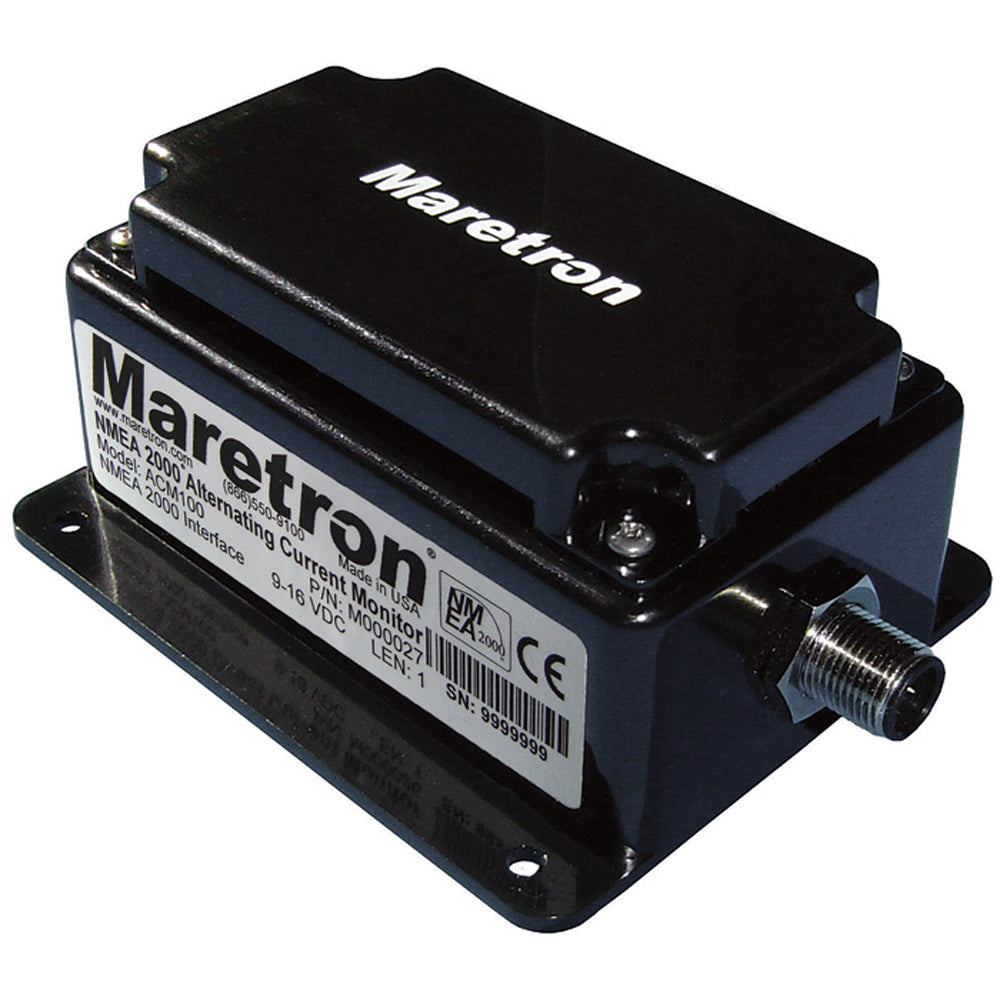

Maretron ACM100 Alternating Current Monitor

No reviews yet Write a Review
$335.79
SKU:
ACM100-01
UPC:
873804000176
Condition:
New
5 customers are viewing this product

Maretron ACM100 Alternating Current Monitor

$335.79

Maretron ACM100 Alternating Current Monitor Product Description

Maretron's ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000 marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000 equipment such as the Maretron DSM250 or DSM410 dedicated display or with NMEA 2000 compatible software such as Maretron's N2KView.

Best of all, the ACM100 is NMEA 2000 certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000 display. The ACM100 is a key component of Maretron's N2KView vessel monitoring and control system.



Maretron ACM10001 Attributes


ACM100 Alternating Current Monitor

Maretron's ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000® marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000® equipment such as the Maretron DSM250 dedicated display or with NMEA 2000® compatible software such as Maretron N2KView.

Best of all, the ACM100 is NMEA 2000® certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000® display. The ACM100 is a key component of Maretron's N2KViewr vessel monitoring and control system.

Features:
  • Voltage
  • Current
  • Frequency
  • Real Power
  • Reactive Power
  • Apparent Power
  • Power Factor
  • Total Energy Imported
  • Total Energy Exported


Shower mirror with radio, MFG#R-70S. Use fog-free mirrors when showering. Luminous, with Bluetooth, can be used for music streaming or answering calls. AM/FM radio, telescopic antenna,...

Includes:


  • One (1) M000630 100 Amp AC Current Transducer.


Monitors AC Power Sources such as Utilities/Generators and transmits:


  • Voltage
  • Current
  • Frequency
  • Real power
  • Reactive power
  • Apparent power
  • Power factor
  • Total energy imported
  • Total energy exported


Electrical:


  • Measurement Capabilities: (Single Phase 120, 208, 230, 240), (Split Phase 120/240), (3-Phase Delta 208, 230, 400, 480, 600), (3-Phase Wye 208Y/120, 400Y/230, 415Y/240, 480Y/277, 600Y/347), (Delta with Wild Phase 120/208/240), (Corner Grounded Delta 120/208/240)
  • Measurement Voltage Range: 0-380 VAC
  • Line-to-Neutral Measurement Voltage Accuracy: ±1%
  • Measurement Current Range: 0-100 A (With included current transducer [0 to 400A with optional transducer])
  • Measurement Current Accuracy: ±1% (With included current transducer)
  • Measurement Frequency Range: 30-80Hz
  • Measurement Frequency Accuracy: 0.5Hz (Typical)
  • Operating Voltage 9 to 32 Volts DC Voltage Power Consumption (100 mA NMEA 2000 Interface)
  • Load Equivalence Number (LEN) 2 (NMEA 2000 Spec. [1LEN = 50 mA])
  • Reverse Battery Protection Yes (Indefinitely)
  • Load Dump Protection Yes (Energy Rated per SAE J1113)





Frequently Asked Questions (FAQ) About Maretron ACM100 Alternating Current Monitor









Who is the Maretron?

Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.

How to describe Maretron ACM100 Alternating Current Monitor?

Maretron's ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000 marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000 equipment such as the Maretron DSM250 or DSM410 dedicated display or with NMEA 2000 compatible software such as Maretron's N2KView.

Best of all, the ACM100 is NMEA 2000 certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000 display. The ACM100 is a key component of Maretron's N2KView vessel monitoring and control system.

What is the exterior color of product?

Black

In which country this product made in?

USA

What's the Maretron ACM100 Alternating Current Monitor package dimensions and weight?

7 (w) X 4.5 (h) X 9.5 (l) inches and the weight is: 1.6 lb.

What is the connector type of the product?

NMEA2000 Micro

What is the communication method of the product?

NMEA 2000

What is the manufacturer notes about Maretron ACM100 Alternating Current Monitor?

Maretron's ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000 marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000 equipment such as the Maretron DSM250 or DSM410 dedicated display or with NMEA 2000 compatible software such as Maretron's N2KView.

Best of all, the ACM100 is NMEA 2000 certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000 display. The ACM100 is a key component of Maretron's N2KView vessel monitoring and control system.



Save $69 when you buy the Maretron ACM100 Alternating Current Monitor for only $335 from NVN Marine! Same day shipping before 3pm.

Maretron ACM100 Alternating Current Monitor Technical Specifications

Type:

Vendor:

Maretron

Weight:

1.6 lb

User Guide:

Product Manual:

Product Brochure:

Product Installation:
