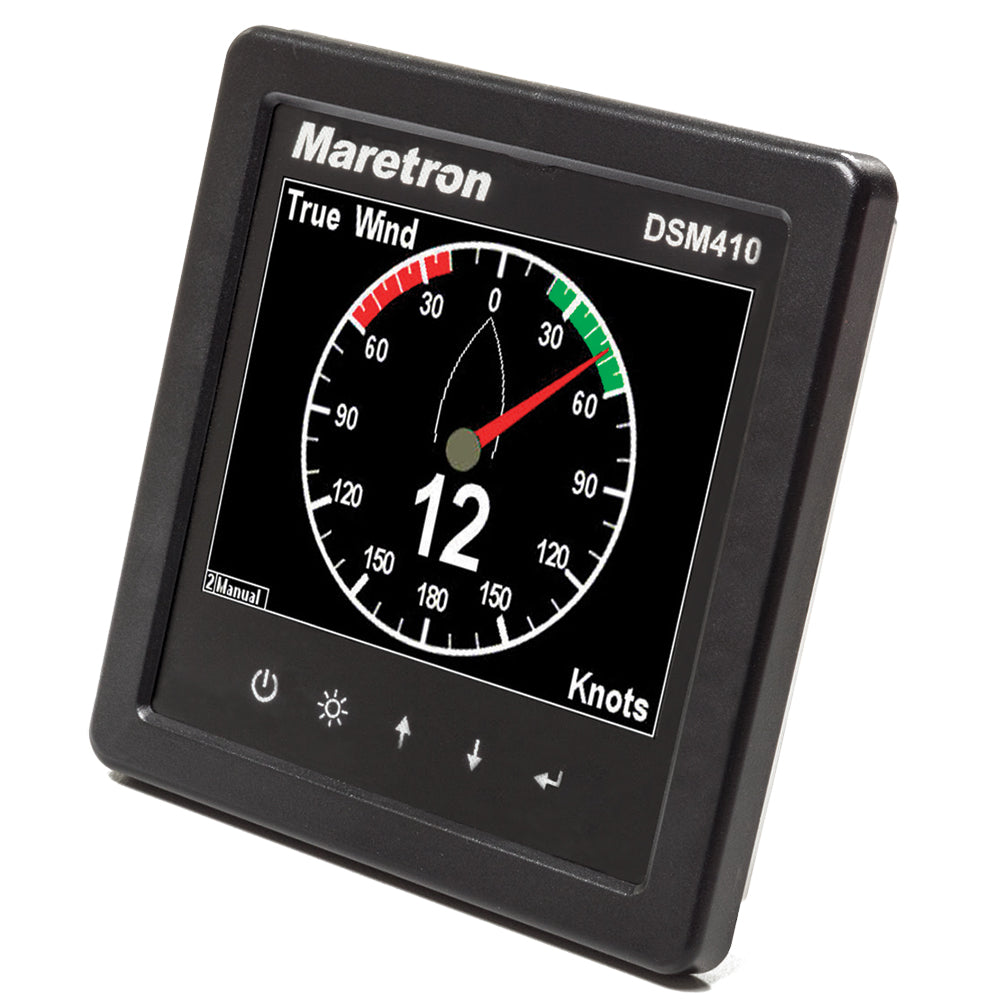

Maretron 4.1" High Bright Color Display - Black Product Description
Maretron's DSM410 is a 4.1â high-resolution sunlight viewable color display that interprets and displays NMEA 2000 instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability. Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data.
These multiple display options conserve mounting space and reduce overall system cost. The DSM410 will directly connect with any NMEA 2000 network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable. The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, Temperature, time, transmission, water makers, weather, wind and more.
Maretron DSM410 4.1"; NMEA2000 DisplayMaretron's DSM410 is a 4.1"; high-resolution sunlight viewable color display that interprets and displays NMEA 2000 instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.The DSM410 will directly connect with any NMEA 2000 network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.
Maretron DSM41001 Attributes
-
Dimensions: 4.5"W x 4.5"H x 1.2"D; Wt: 12.2 oz.
-
Display: 4.1" color LCD
-
Interface: NMEA 2000
-
Main Functions: Depth, Speed, Wind, Navigation, Engine Monitoring, and other data supplied by NMEA 2000 sensors
-
Other Functions: Displays various systems alerts, has electrical switching capabilities
-
Resolution: 320 x 240 Pixels
-
Sensors Included: None
Maretron DSM41001 Features & Benefits
4.1" High Bright Color Display - Black
Maretrons DSM410 is a 4.1 high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.
Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.
The DSM410 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.
The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.
The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring. Available alert types include:
- High alert
- Low alert
- Data unavailable alert
- On alert
- Off alert
- Circuit breaker tripped alert
- Course alert
- GPS quality alert
- Outside radius alert
- Inside radius alert
- Direction alert
- Timer alert
The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM150, DSM250 and N2KView® installations on the network. An alert defined on any device can be acknowledged on any other device on the network.
Maretron's DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.
Examples of data that the DSM410 can display are:
- AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
- Anchor Watch
- Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
- Depth (Water Depth, Depth below Transducer)
- Electrical (Resistance)
- Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
- Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Econmony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
- Environment (Barometer, Heat Index, Humidity, Temperatures, Wind Chill)
- Fluid Flow (Flow Rate, Trip Volume)
- Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Remaining)
- GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
- Heading (Heading, Rate of Turn, Variation)
- Humidity (Inside, Outside, User Defined
- Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
- Mechanical (dB, Force, Strain)
- Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
- Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
- Pressure / Vacuum
- Rudder
- SMS (Status, Signal Strength)
- Speed (Through Water, Over Ground, Total Log, Trip Log)
- Tanks (Capacity, Level, Remaining)
- Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
- Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
- Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
- Watermaker (Sea Recovery Status display)
- Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)
DSM410 is a user-friendly dedicated marine display with a custom screen configuration and an easy-to-use five-key illuminated keyboard. In addition to monitoring and display functions, DSM410 also has alarm/alarm package and electrical switch functions. Different from the traditional single display unit, DSM410 users can select number, ruler, bar or graph format in single or multiple displays, and can also select loop options to obtain various favorite data. These multiple display options can save installation space and reduce overall system costs. In addition to AIS data, DSM410 will directly connect to any NMEA 2000 network, and it will display any or all information captured by the entire ship. Various audio and video alarms are also programmable. DSM410 displays many information, including AC power, anchor status, battery, depth, power distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicator, fuel tank, temperature, time , Transmission, water control, weather, wind, etc.
The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring.
Available alert types include:
- High alert
- Low alert
- Data unavailable alert
- On alert
- Off alert
- Circuit breaker tripped alert
- Course alert
- GPS quality alert
- Outside radius alert
- Inside radius alert
- Direction alert
- Timer alert
The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM250 and N2KView installations on the network.
An alert defined on any device can be acknowledged on any other device on the network. Maretron's DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.
Examples of data that the DSM410 can display are:
- AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
- Anchor Watch
- Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
- Depth (Water Depth, Depth below Transducer)
- Electrical (Resistance)
- Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
- Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Economy, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
- Environment (Barometer, Heat Index, Humidity, Temperatures, Wind Chill)
- Fluid Flow (Flow Rate, Trip Volume)
- Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Remaining)
- GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
- Heading (Heading, Rate of Turn, Variation)
- Humidity (Inside, Outside, User Defined
- Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
- Mechanical (dB, Force, Strain)
- Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
- Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
- Pressure / Vacuum
- Rudder
- SMS (Status, Signal Strength)
- Speed (Through Water, Over Ground, Total Log, Trip Log)
- Tanks (Capacity, Level, Remaining)
- Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
- Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
- Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
- Watermaker (Sea Recovery Status display)
- Wind (Apparent direction and speed, True direction and speed, Ground direction and speed)
Maretron USB100 NMEA 2000® USB GatewayMaretron Micro TeeMaretron Micro Double-Ended Cordset - 0.5MMaretron Micro Double-Ended Cordset - 1 MeterMaretron Micro Double-Ended Cordset - 3MMaretron Micro Double-Ended Cordset - 6 MeterMaretron Micro Double-Ended Cordset - 2 MeterMaretron Micro Double-Ended Cordset - 4 MeterMaretron Micro Double-Ended Cordset 5 Meter
Frequently Asked Questions (FAQ) About Maretron 4.1" High Bright Color Display - Black
Who is the Maretron?
How to describe Maretron 4.1" High Bright Color Display - Black?
What is the exterior color of product?
In which country this product made in?
What is the resolution of the product?
What's the Maretron 4.1" High Bright Color Display - Black package dimensions and weight?
Sensors included to the product?
What is the controlling interface of the product?
What is the dimensions of the product?
What is the connector type of the product?
What is the communication method of the product?
What is the instrument function of the product?
What is the manufacturer notes about Maretron 4.1" High Bright Color Display - Black?
Who is the Maretron?
Maretron's products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions. Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron's products are among the best worldwide.
How to describe Maretron 4.1" High Bright Color Display - Black?
Maretron's DSM410 is a 4.1â high-resolution sunlight viewable color display that interprets and displays NMEA 2000 instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability. Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data.
These multiple display options conserve mounting space and reduce overall system cost. The DSM410 will directly connect with any NMEA 2000 network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable. The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, Temperature, time, transmission, water makers, weather, wind and more.
- The 4.1 high-resolution sunlight viewable color display provides an intuitive and easy to read interface for navigating data,
- View all of your vessel's data in real time, with a simplified interface that is easy to navigate.
- The DSM410 is a high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data.
- It is user-friendly with a 4.1 high resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data.
Maretron DSM410 4.1" Color Display Model: DSM410-01
What is the exterior color of product?
Black
- The 4.1 high-resolution sunlight viewable color display provides an intuitive and easy to read interface for navigating data,
- View all of your vessel's data in real time, with a simplified interface that is easy to navigate.
- The DSM410 is a high-resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data.
- It is user-friendly with a 4.1 high resolution sunlight viewable color display that interprets and displays NMEA 2000® instrument, navigation, and vessel monitoring data.
- 4.1" high-resolution sunlight viewable color display
- Displays NMEA 2000& 174; instrument, navigation, and vessel monitoring data
- Ideal for marine applications
- Maretron DSM410 4.1" Color Display
- For nautical navigation and vessel monitoring
- Sunlight viewable color display
In which country this product made in?
What is the resolution of the product?
What's the Maretron 4.1" High Bright Color Display - Black package dimensions and weight?
5.5 (w) X 4 (h) X 7 (l) inches and the weight is: 1.06 lb.
Sensors included to the product?
What is the controlling interface of the product?
What is the dimensions of the product?
4.5"W x 4.5"H x 1.2"D; Wt: 12.2 oz.
What is the connector type of the product?
What is the communication method of the product?
What is the instrument function of the product?
What is the manufacturer notes about Maretron 4.1" High Bright Color Display - Black?
Maretron's DSM410 is a 4.1â high-resolution sunlight viewable color display that interprets and displays NMEA 2000 instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability. Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data.
These multiple display options conserve mounting space and reduce overall system cost. The DSM410 will directly connect with any NMEA 2000 network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable. The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, Temperature, time, transmission, water makers, weather, wind and more.
Save
$84 when you buy the
Maretron 4.1" High Bright Color Display - Black for only
$510 from NVN Marine! Same day shipping before 3pm.
