Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger

No reviews yet Write a Review
$1,957.99
SKU:
MS2000-L-U
UPC:
892608001172
Condition:
New
5 customers are viewing this product

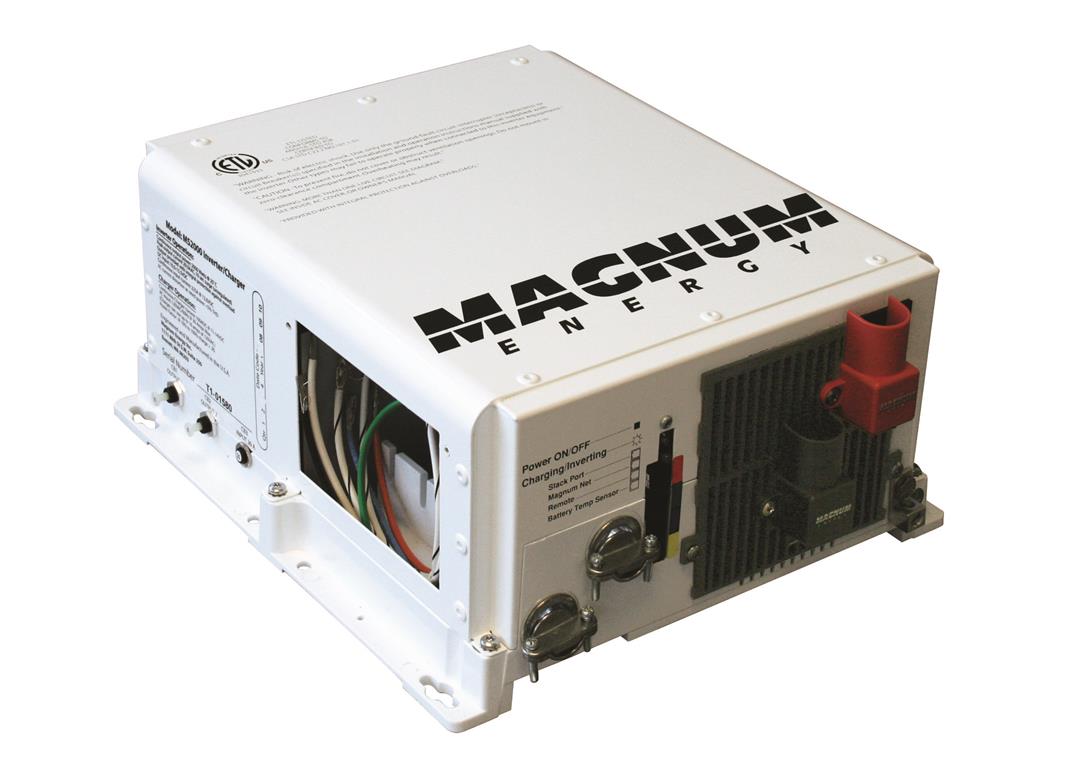

Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger

$1,957.99

Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger Product Description

The MS Series Inverter/Charger – a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.

Magnum Energy MS2000LU Attributes

  • Output Voltage: 120 Volt AC
  • Input Voltage: 12 Volt DC
  • Ampere Rating: 100 Amp

Magnum Energy MS2000LU Features & Benefits

  • Pure Sine Wave
  • 12, 24 And 48 Volt Configurations
  • Versatile Mounting
  • Lightweight
  • Multiple Common Ports
  • Limited 3 Year Warranty

Magnum Energy MS2000LU Installation Instructions

Magnum Energy MS2000LU Technical Bulletins


Magnum MS2000-L 2000 Watt, 12vDC Inverter with 100 Amp PFC Charger

Model: MS2000-L
  • Pure Sine Wave — Power your TVs, computers, and other sensitive electronics without worry. The MS Series provides clean, reliable inverter power with low total harmonic distortion (THD) of less than 5%.
  • Accessible Design — The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter accessible.
  • Versatile Mounting — Mount the MS Inverter/Charger on a shelf, bulkhead, or even upside down.
  • Lightweight — The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
  • Multiple Ports — The MS Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
  • Convenient Switches — The MS Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.

The Magnum-Dimensions MS Series Inverter/Charger is a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger — 25-30% less AC current than standard chargers.

Specifications
General
Transfer relay capability 30 ACC max. each inpu
Five stage charging capability Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver™
Battery temperature compensation Standard with available temp sensor connected (battery temp 0-50° C)
Internal cooling 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
Overcurrent protection Yes, with two overlapping circuits
Overtemperature protection Overtemperature protection
Corrosion protection Yes, PCB’s conformal coated, powder coated chassis/top, and stainless steel fasteners
Inverter
Input battery voltage range 9 - 16.8 VDC
AC output voltage accuracy 120 VAC ± 5%
Output frequency and accuracy 60 Hz ± 0.1 Hz
Total Harmonic Distortion (THD) < 5%
1 msec surge current (amps AC) 50
100 msec surge current (amps AC) 33
5 sec surge power (real watts) 3300
30 sec surge power (real watts) 3100
5 min surge power (real watts) 2800
30 min surge power (real watts) 2200
Maximum continuous input current 267ADC
Inverter efficiency (peak) 90.6%
AC Relay Transfer time (minimum) 16 msecs
Power Consumption - searching <8 watts
Power Consumption - inverting (no load) 25 watts
Output Waveform Pure Sine Wave
Charger
Continuous output at 25° C 100 ADC
Charger efficiency 85%
Power factor > .95
Input current for continuous rated output 15 AAC
Dimensions l x w x h 13.75in x 12.65in x 7in


Large size-lightweight aluminum base and cover can also reduce noise and have corrosion resistance. Battery temperature sensor with 15 cables. In the "Other Features" box. The transfer switch is.

The large-sized lightweight aluminum base and cover can also reduce noise and have corrosion resistance. Battery temperature sensor with 15 cables. In the "Other Features" box. The changeover switch is.

Frequently Asked Questions (FAQ) About Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger



Who is the Magnum?

Magnum Energy is a leading North American manufacturer of industry leading battery inverters/chargers, inverter accessories, enclosures, circuit breakers, fuse block assembly?s, mini panels, conduit boxes, extension boxes and balance of systems products - catering to mobile applications, including utilities, RV, marine; renewable energy applications, and the export market. Manufactured in Everett, Washington, and St. Paul, Minnesota, they boast over 150 years of combined inverter design and manufacturing experience, Magnum Energy uses advanced techniques to build some of the most reliable, advanced, and durable inverter and chargers for off-grid solar energy solutions.

How to describe Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger?

The large-sized lightweight aluminum base and cover can also reduce noise and have corrosion resistance. Battery temperature sensor with 15 cables. In the "Other Features" box. The changeover switch is.


Save $507 when you buy the Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger for only $1779 from NVN Marine! Same day free shipping before 3pm.

Magnum MS2000L 2000W Inverter 12v W/100A PFC Charger Technical Specifications
