Icom pioneered the floating VHF marine radio and set the trend with the M24 adding the Float N Flash flashing light feature. The M25 floats when dropped in water, even with the optional, HM213, microphone attached. The flashing light feature activates when the radio hits the water, even if the power is off. Not only does the LCD and key backlight on the front panel flash, but also a red LED light blinks through the rear panel showing the place of the radio to easily retrieve.

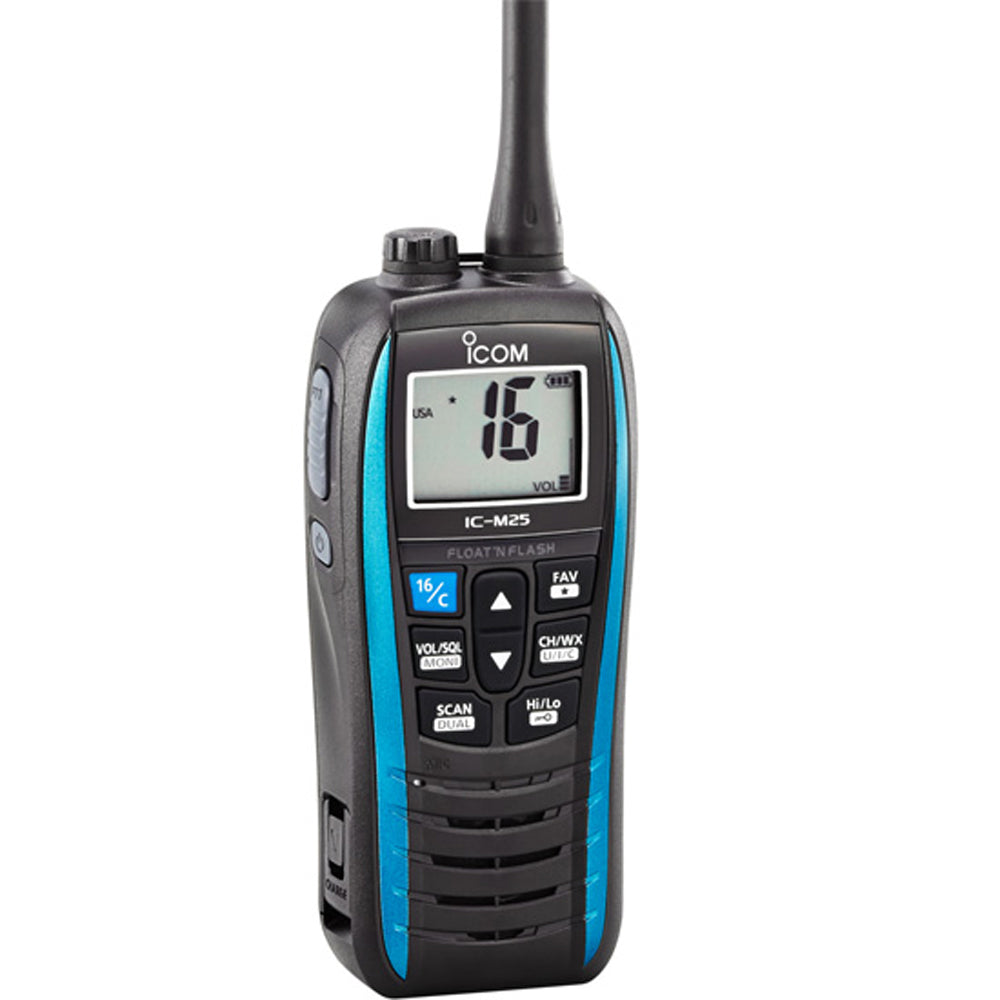

Icom M25 Floating Handheld VHF Black Accents
Model: M25 Black 41 USAIcom pioneered the floating VHF marine radio and others followed. Setting a new trend with the IC-M24 and now the IC-M25. The IC-M25 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it's easier to find than ever, day or night.
*Typical operation with Tx (Hi: Rx: standby = 5:5:90)
SpecificationsGeneral | |
Frequency | TX- 156.025157.425MHz RX - 156.050163.275MHz |
Useable Channels | INT, USA, CAN, WX channels |
Current Drain | TX - 2.3A RX - 300ma/200MA typ |
Operating Temperature | -20°C to +60°C; -4°F to +140°F |
Antenna Impedance | 50 Ohm |
Transmitter | |
Output power | 5W (High),1W (Low) |
Maximum frequency deviation | ±5.0kHz |
Frequency stability | ±10ppm |
Spurious emissions | -68dBc typical |
Adjacent channel power | 70dB |
Audio harmonic distortion | 10% (at 60% dev.) |
Residual Modulation | 40dB |
Receiver | |
Adjacent Channel Selectivity | 70dB typical |
Spurious response | 70dB typical |
Intermodulation response | 70dB typical |
Hum and noise ratio | 40dB typical |
Audio output power (at 10% distortion, 8 ohm) | Internal SP: 550mW typ. (12ohm load) External SP: 300mW typ. (4ohm load) |
Dimensions | 2.23"" W x 5.28"" H x 1.2"" D |
Type: |
Communication | VHF - Handheld |
---|---|
Vendor: |
Icom |
Weight: |
1.2 lb |
Floats: |
Yes |
Bluetooth: |
No |
Built-In GPS: |
No |
Battery Type: |
Lithium Ion |
Power - Output (Watts): |
1/5w |
Speaker Mic: |
Yes |
Waterproof Rating: |
Waterproof |
Weather Alert: |
Yes |
Product Manual: |
Download PDF |
Product Brochure: |
Download PDF |
