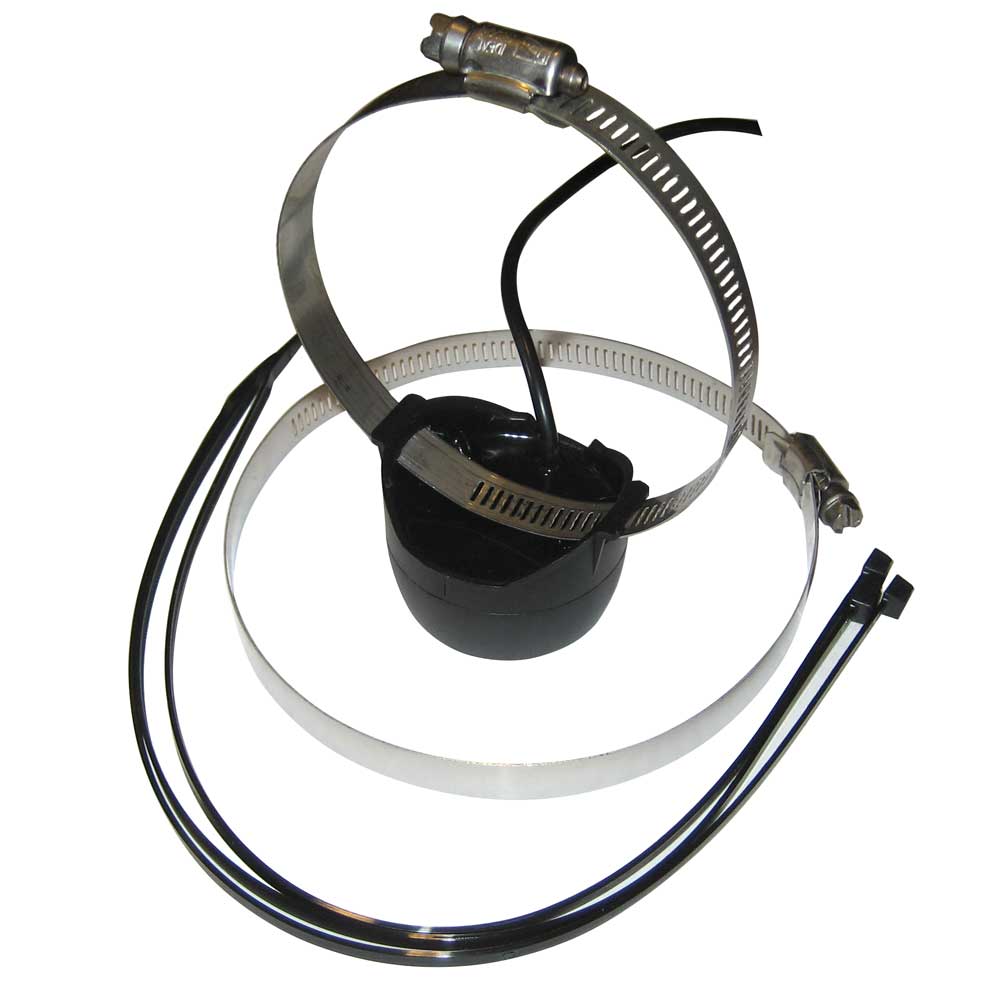

Humminbird XTM-9-20T Trolling Motor Transducer

No reviews yet Write a Review
$94.63
SKU:
710160-1
UPC:
82324501920
Condition:
New
5 customers are viewing this product

Humminbird XTM-9-20T Trolling Motor Transducer

$94.63

Humminbird XTM-9-20T Trolling Motor Transducer Product Description

Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.

Humminbird 7101601 Attributes

  • Mounting Location: Trolling Motor Mount
  • Number Of Pins: 7 Pin
  • Frequency Range: 83/ 200 kHz Beam Frequency
  • Supported Angle: 60/ 20 Degree Beam Angle
  • Cable Length: 15 Feet

Humminbird 7101601 Features & Benefits

  • Fishfinder For Humminbird Is Equipped With A High-Quality Transducer
  • Designing And Manufacturing Top Quality, Thoroughly Reliable Marine Equipment
  • Designed For Trouble-Free Use In Even The Harshest Marine Environment
  • Made In USA
  • Limited 1 Year Warranty

Humminbird 7101601 Installation Instructions

Humminbird 7101601 Warranties

Humminbird 7101601 Technical Bulletins


Trolling Motor Transducer

Trolling Motor Mount Transducers are designed to mount on to the body of most trolling motors. A low profile shape reduces drag in the water and minimizes interference with weeds. Trolling Motor Transducers are often used in conjunction with the standard Transom Mount Transducer and connected by a switch to allow the fishfinder to display information from either the transom or the trolling motor. Some Transom Mount Transducers can be converted to Trolling Motor Mount by purchasing a Trolling Motor Adapter.

Description: Trolling Motor Transducer with Temperature Sensor, Hydrodynamic, dual beam, 20 and 60 degree cone angles, 200/83 kHz. Includes 15' cable, trolling motor mounting hardware.

For Use With: Piranha 5, Legend ID40, Matrix 15, Matrix 17, Matrix 25, Matrix 17, Matrix 55, Matrix 65, Matrix 67, FF515, FF535, FF565

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



The sensor installed in the Humminbird XTM 20 T towing motor is designed to be installed on the main body of most towing motors and has a low profile design to reduce water resistance and minimize the chance of weed hanging. The unit is a hydraulic dual-beam traction motor sensor, with 20-degree and 60-degree cone angle beams, and operating frequencies of 200 kHz and 83 km, respectively. XTM 20 T has a built-in temperature sensor and is compatible with Humminbird. Piranha 5, legend ID40, matrix 15, matrix 17, matrix 25, matrix 27, matrix 55, matrix 65, matrix 67, FF515, FF535 and FF565 sonar or fishfinder system.





Frequently Asked Questions (FAQ) About Humminbird XTM-9-20T Trolling Motor Transducer












Who is the Humminbird?

Humminbird is America's Favorite Fishfinder brand. For over 30 years we've been a leader in providing the recreational angler exciting, innovative fishfinders, depth sounders, marine radios and GPS systems. Humminbird introduced many of the exciting innovative products and features that are in wide use today, and will continue to introduce cutting edge smart technology products in the future.

How to describe Humminbird XTM-9-20T Trolling Motor Transducer?

The sensor installed in the Humminbird XTM 20 T towing motor is designed to be installed on the main body of most towing motors and has a low profile design to reduce water resistance and minimize the chance of weed hanging. The unit is a hydraulic dual-beam traction motor sensor, with 20-degree and 60-degree cone angle beams, and operating frequencies of 200 kHz and 83 km, respectively. XTM 20 T has a built-in temperature sensor and is compatible with Humminbird. Piranha 5, legend ID40, matrix 15, matrix 17, matrix 25, matrix 27, matrix 55, matrix 65, matrix 67, FF515, FF535 and FF565 sonar or fishfinder system.

What is the type of the product?

Single/dual beam, 20/60º, 200/83kHz, w/ temp

What is the weight of the product?

1

Speed feature included to the product?

No

How to mount or what is the mounting style of Humminbird XTM-9-20T Trolling Motor Transducer?

Trolling Motor

This product can read the temprature?

Yes

What is the length of cable (feet)?

15'

What is the imagining type of the product?

Standard

What is the length of cable?

15 Feet

Is this product supporting CHIRP and what's the type?

No


Save $37 when you buy the Humminbird XTM-9-20T Trolling Motor Transducer for only $82 from NVN Marine! Same day shipping before 3pm.

Humminbird XTM-9-20T Trolling Motor Transducer Technical Specifications

Type:

Vendor:

Humminbird

Weight:

1.0 lb

Cable Length (Feet):

15'

Mounting Style:

Trolling Motor

Imagining:

Standard

Chirp:

No

Temperature:

Yes

Speed Included:

No

User Guide:

Product Manual:

Product Installation:
