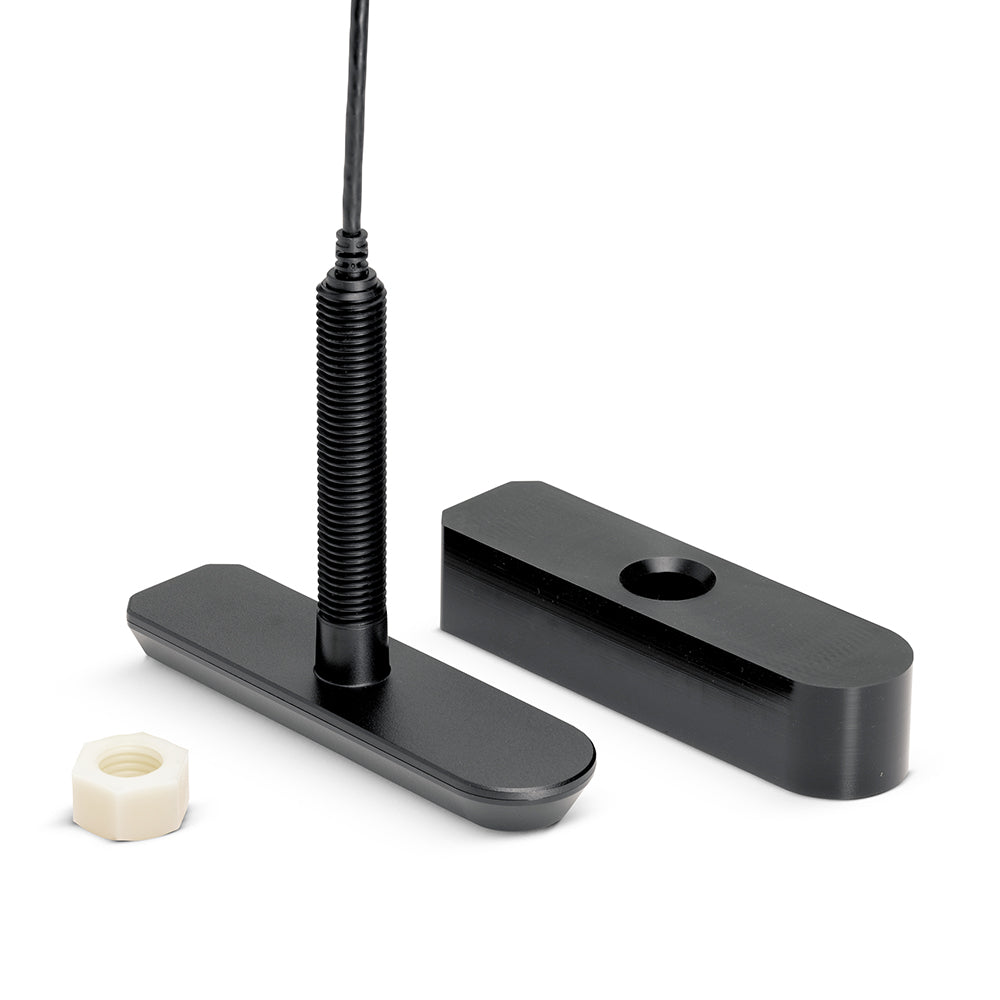

Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp

No reviews yet Write a Review
$436.30
SKU:
710284-1
UPC:
82324053276
Condition:
New
5 customers are viewing this product

Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp

$436.30

Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp Product Description

Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. We encourage you to read this manual carefully in order to get the full benefit from all the features and applications of your Humminbird product.

Humminbird 7102841 Attributes

  • Mounting Location: Hull Mount
  • Number Of Pins: 7 Pin
  • Depth: 1200 Feet
  • Frequency Range: 150/ 220 kHz Full Dual Spectrum CHIRP Frequency, 455/ 800 kHz, 1.2 MHz Operating Frequency
  • Cable Length: 30 Feet

Humminbird 7102841 Features & Benefits

  • Fishfinder For Humminbird Is Equipped With A High-Quality Transducer
  • Designing And Manufacturing Top Quality, Thoroughly Reliable Marine Equipment
  • Designed For Trouble-Free Use In Even The Harshest Marine Environment
  • Made In USA
  • Limited 1 Year Warranty

Humminbird 7102841 Installation Instructions

Humminbird 7102841 Warranties

Humminbird 7102841 Technical Bulletins


XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer with Temp

MEGA Side Imaging+ Plastic Thru-Hull Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

  • This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHRIP Max Depth: 1200ft (365m)
  • MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
  • MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



Humminbird MEGA side imaging plus plastic pass-through housing sensor supports MEGA Imaging / 800 kHz / 455 kHz and dual-spectrum CHIRP 2D sonar with CHIRP ranging from 150 kHz to 220 kHz. Including built-in temperature sensor, rugged composite design and 30 cables. Quick and easy installation.





Frequently Asked Questions (FAQ) About Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp













Who is the Humminbird?

Humminbird is America's Favorite Fishfinder brand. For over 30 years we've been a leader in providing the recreational angler exciting, innovative fishfinders, depth sounders, marine radios and GPS systems. Humminbird introduced many of the exciting innovative products and features that are in wide use today, and will continue to introduce cutting edge smart technology products in the future.

How to describe Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp?

Humminbird MEGA side imaging plus plastic pass-through housing sensor supports MEGA Imaging / 800 kHz / 455 kHz and dual-spectrum CHIRP 2D sonar with CHIRP ranging from 150 kHz to 220 kHz. Including built-in temperature sensor, rugged composite design and 30 cables. Quick and easy installation.

What is the type of the product?

MEGA SI+ Plastic Thru-Hull Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

How many pins exists in the connector of the product?

7

What is the weight of the product?

3.9

Speed feature included to the product?

No

How to mount or what is the mounting style of Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp?

Thru-Hull

This product can read the temprature?

Yes

What is the imagining type of the product?

Standard/Down/Side

What is the length of cable (feet)?

30'

What is the length of cable?

30 Feet

Is this product supporting CHIRP and what's the type?

High Wide


Save $120 when you buy the Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp for only $379 from NVN Marine! Same day shipping before 3pm.

Humminbird XPTH-9-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP Plastic Thru-Hull Transducer w/Temp Technical Specifications

Type:

Vendor:

Humminbird

Weight:

3.9 lb

Speed Included:

No

Pins:

7

Mounting Style:

Thru-Hull

Imagining:

Standard/Down/Side

Chirp:

High Wide

Cable Length (Feet):

30'

Temperature:

Yes

Product Manual:

Product Installation:
