Humminbird HELIX 5 CHIRP/GPS G3 Portable

No reviews yet Write a Review
$480.58
SKU:
411680-1
UPC:
82324056314
Condition:
New
5 customers are viewing this product

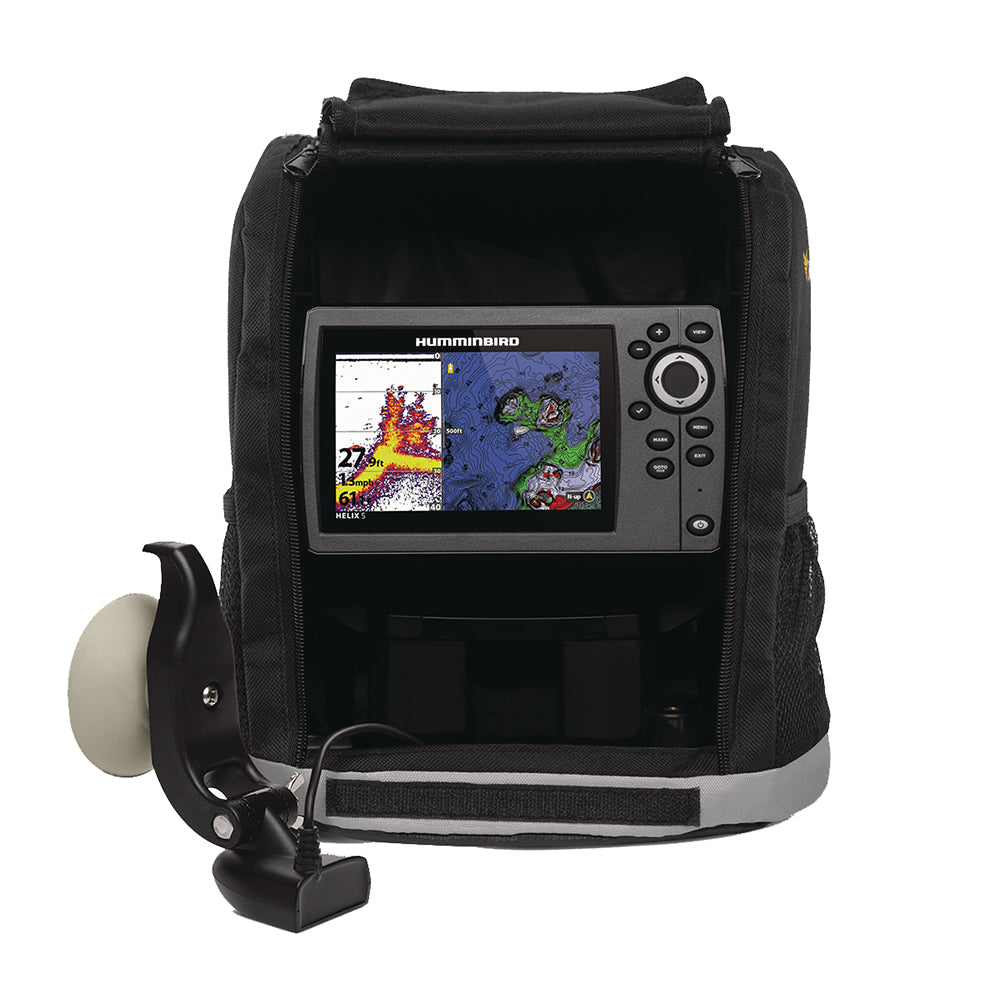

Humminbird HELIX 5 CHIRP/GPS G3 Portable

$480.58

Humminbird HELIX 5 CHIRP/GPS G3 Portable Product Description

HELIX 5 CHIRP/GPS G3 Portable

If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP GPS G3 PT model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap, and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Take all of these features on the go thanks to a portable shuttle, battery, charger, and suction cup transducer.

Features:

  • Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • Portable Carrying Case: Take your fishing system on the go. The soft-sided carrying case protects your Humminbird for safe transport.
  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
  • Includes control head, Shuttle, bag, suction cup mount transducer, power cable, gimbal mounting bracket and mounting hardware.
  • 1-Year Limited Warranty

Specifications:

  • Display Size - Diagonal: 5"
  • Display Pixel Matrix: 800H x 480V
  • Sonar-Standard: Dual Spectrum CHIRP
  • Sonar-Coverage: 20°, 42° & 60° @ -10dB
  • Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
  • CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
  • Sonar-Frequencies Supported: 50/80/200 kHz
  • Depth-Sonar: 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)
















Frequently Asked Questions (FAQ) About Humminbird HELIX 5 CHIRP/GPS G3 Portable












Who is the Humminbird?

Humminbird is America's Favorite Fishfinder brand. For over 30 years we've been a leader in providing the recreational angler exciting, innovative fishfinders, depth sounders, marine radios and GPS systems. Humminbird introduced many of the exciting innovative products and features that are in wide use today, and will continue to introduce cutting edge smart technology products in the future.

How to describe Humminbird HELIX 5 CHIRP/GPS G3 Portable?

"

Humminbird Helix 5 G3 Portable CHIRP GPS

Model: 411680-1
  • Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
  • Portable Carrying Case: Take your fishing system on the go. The soft-sided carrying case protects your Humminbird for safe transport.
  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
  • 1-Year Limited Warranty

If fishing is in your DNA, there's no such thing as ""too early"" or ""too far."" The HELIX? 5 Series answers the call with an uncompromising 5"" widescreen, color display. This HELIX 5 CHIRP GPS G3 PT model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts. Take all of these features on the go thanks to a portable shuttle, battery, charger and suction cup transducer.

Specifications
Display Size - Diagonal5""
Display Pixel Matrix800H x 480V
Sonar-StandardDual Spectrum CHIRP
Sonar-Coverage20°, 42° & 60° @ -10dB
Sonar-Optional50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported50/80/200 kHz
Depth-Sonar1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)
InterfaceKeypad Control
FeaturesBuilt In GPS, Built In Mapping, Dual Spectrum CHIRP, Portable
Memory Card SlotSingle Micro SD
Compatible WithAIS, AutoPilot, Minn Kota US2 Sonar
Power Draw615 mA
Power Input10.8-20 VDC
Power Output Peak-to-Peak4000 Watts
Power Output RMS500 Watts
Screen Snap Shotyes
Sonar RecordingYes
Mount-StandardPortable
Mount-Optional Size7.55"" W x 4.28"" H x 1.13"" D
GPS ChartplottingYes
GPS TrackplottingYes
LakeMaster CompatibilityYes
Coast Master Compatibilityyes
Navionics Gold/HotMaps CompatibilityYes
Navionics Platinum + CompatibilityYes
Platinum CompatibilityYes
Heading Sensor GPS CompatibilityNo
Upgradable SoftwareYes
View Preset KeysNo
X-Press Menu SystemYes
Custom Digital ReadoutYes
Custom View SelectionsNo
Display Colors Grayscale16-Bit
Display Size5""
SpeedGPS Provided
TemperatureBuilt In
Temperature AlarmYes
Temperature GraphYes
HDMI CompatibleNo
MEGA Live CompatibilityNo

What's in the Box:
  • Helix 5 G3 CHIRP GPS
  • Shuttle
  • Bag
  • Suction cup mount transducer
  • Power cable
  • Gimbal mounting bracket
  • Mounting hardware.
  • "
    • The HELIX 5 CHIRP GPS G3 is the most advanced fishing GPS on the market.
    • This model is equipped with a 5" widescreen, color display.
    • It has a built-in CHIRP sonar to provide detailed information about fish location and depth.
    • 5" widescreen, color display
    • Garmin's most powerful GPS
    • Exclusive CHIRP sonar technology
    • 5" widescreen, color display
    • Uncompromising performance
    • Easy to use for beginners and experts alike

What is the screen size of the product?

5"
  • The HELIX 5 CHIRP GPS G3 is the most advanced fishing GPS on the market.
  • This model is equipped with a 5" widescreen, color display.
  • It has a built-in CHIRP sonar to provide detailed information about fish location and depth.
  • 5" widescreen, color display
  • Garmin's most powerful GPS
  • Exclusive CHIRP sonar technology
  • 5" widescreen, color display
  • Uncompromising performance
  • Easy to use for beginners and experts alike

Transducer included to the product?

Yes

What is the weight of the product?

12.5

Which transducer included to the product?

XNT-9-HW-T

What is the display size of the product?

5" - 7"

This product can read the temprature?

Built In

What is the controlling interface of the product?

Keypad Control

What is the cartography brand of product?

Humminbird/Navionics

Is this product is touchscreen?

No
