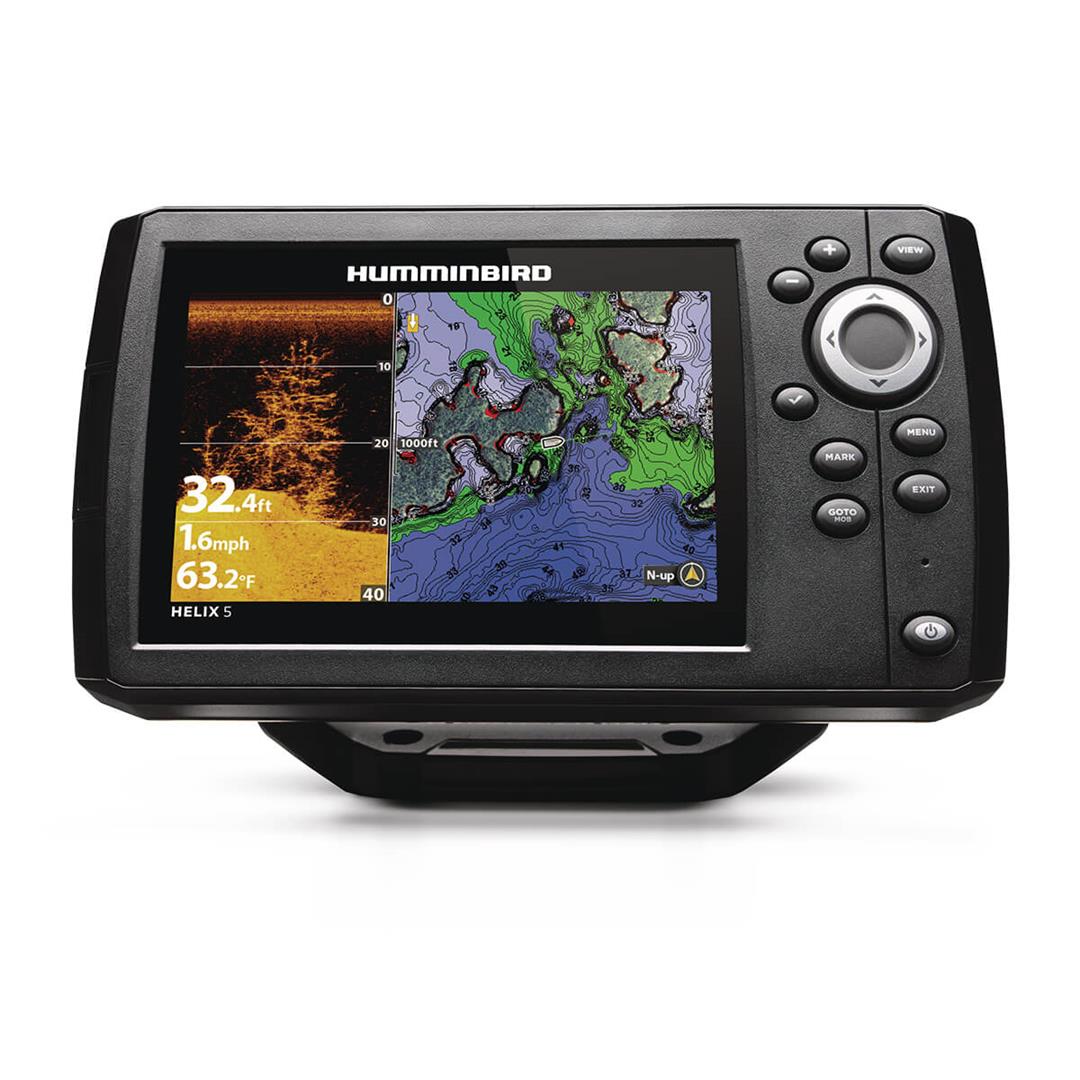

Humminbird HELIX 5 CHIRP DI GPS G3 Product Description

If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX ® 5 Series answers the call with an uncompromising 5 Inch widescreen, color display. This HELIX 5 CHIRP DI GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts.

Humminbird 4116701 Attributes

• Display Size: 5 Inch LCD
• Display Resolution: 800 X 480 Pixels
• Overall Dimensions: 7.55 Inch Length X 4.64 Inch Height X 3.3 Inch Depth
• Sonar Compatibility: Dual Spectrum CHIRP Sonar
• With Built-In GPS: Yes
• Used To: Use To Find Fish And Identify Buoys/ Day Markers/ Hazards/ Marinas/ Contours/ Depth Markers
• Interface: Keypad
• Waterproof: Yes
• Point Of Interest: 2750 Waypoints
• SD Card Storage: Micro SD Card

Humminbird 4116701 Features & Benefits

• A Razor-Thin, High-Frequency Beam That Creates Picture-Like Images Of Structure, Vegetation And Fish
• CHIRP Stands For “Compressed High Intensity Radar Pulse” And By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Dual Spectrum CHIRP Sonar: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Precision GPS Provides An Accurate Position Fix, Meaning More Accurate Waypoints And Boat Positioning For Better Fishing
• Humminbird Basemap: Based On Freshwater Data From LakeMaster And NOAA, These Maps Provide A Clear View Of Underwater Terrain
• Map The Water As You Drive The Boat And Keep The Data Stored On Your Fish Finder Or Import It Into The AutoChart PC Program
• LakeMaster Lake Maps Include Unrivaled, Easy-To-Read Contours, Highlighted Depth Ranges, Scrollable Lake Lists And More
• Maps Features All Of The Features Of LakeMaster With One Key Addition: Aerial Photography Of High Definition Lakes, Providing Visibility To Docks, Buildings, And Structure
• SmartStrike Cards Combine High Definition LakeMaster Lake Map Data And Extensive Search Algorithms To Help You Pattern And Locate Fish At Any Time Of The Year
• Limited 1 Year Warranty

Humminbird 4116701 Installation Instructions

Humminbird 4116701 Warranties

HELIX 5 CHIRP DI GPS G3

If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIX 5 Series answers the call with an uncompromising 5" widescreen, color display. This HELIX 5 CHIRP DI GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap, and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts.

Features:

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
• CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging Sonar means that you'll see great detail to make finding the fish simple and easy.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced base map provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.
• Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware.
• 1-Year Limited Warranty

Specifications:

• Display Size - Diagonal: 5"
• Display Pixel Matrix: 800H x 480V
• Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging
• Sonar-Coverage: 20°, 42° & 60° @ -10dB
• Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
• CHIRP - Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455 kHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)
