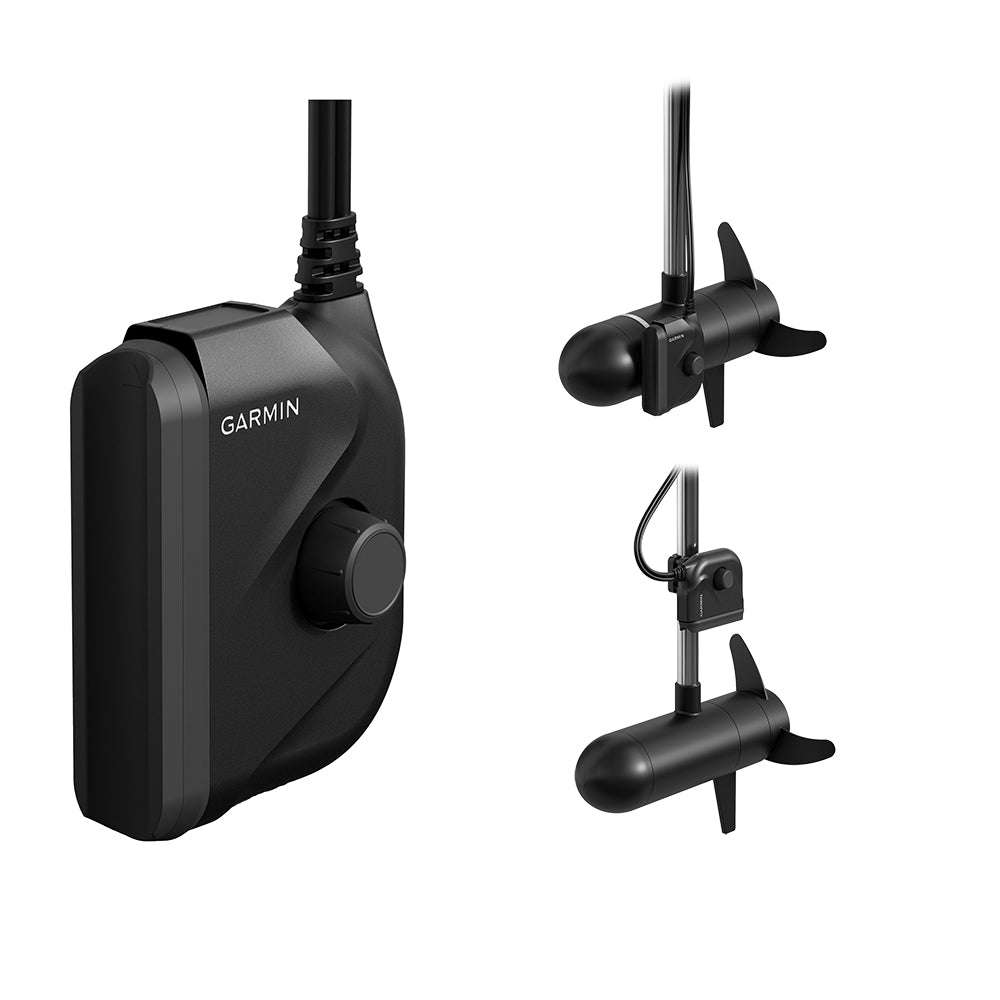

Garmin Panoptix PS22-TR LiveVu Forward & Down Transducer Product Description

Panoptix PS22-TR LiveV Forward & Down Transducer

Trolling Motor Transducer with 2 Panoptix LiveV Modes

• LiveV Forward sonar shows the structure and fish ahead and around your boat
• LiveV Down sonar shows below and around your boat for vertical fishing and jigging
• Narrow beam angle (20 degrees) for crisp, improved resolution and clear images
• Mounts to the shaft or motor barrel of a trolling motor
• One-screw mount design makes it easy to change modes

Garmin is the first to bring 2 modes of Panoptix sonar imaging to 1 transducer for your boat. Panoptix all-seeing sonar is unlike anything you've ever seen on the water. It gives you the ability to see all around your boat and below it - in real time - up to 100' away.

It's Not Just Sonar — It's Panoptix Sonar

Panoptix delivers a whole new perspective to fishing. Other sonar only shows images of fish your transducer has passed over. To capture those images, your boat must be moving. Everything that shows up on your screen is technically history; it's all in the past. With Panoptix LiveV Forward and LiveV Down sonars, your boat can be moving or stationary. Wherever your trolling motor is pointed, you'll see live images of what is happening under the water.

Fishing Comes Alive with Panoptix

Watch your lure as it sinks, and see its depth and movement as you retrieve it. See it move in relation to structure in the water. See fish swimming and reacting to your bait. If they attack, you'll see and feel the hit! Once on the hook, watch the fight on your screen as it happens. With Panoptix LiveV Forward and LiveV Down, you can see it all come to life up to 100' away or below your boat.

In the Box:

• Panoptix PS22-TR transducer with integrated 4 meter network and power cable
• Trolling motor shaft mount
• Trolling motor barrel mount
• Documentation

Specifications:

• Frequency: 417 kHz
• Power: 48W
• Beamwidth: LiveV: 20°x100°
• Maximum depth: 300' Down; 300' Forward
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: Ethernet
• Cable length: Power Cable 13'; Ethernet Cable 13'
• Supported deadrise/Transom angles: Trolling motor shaft. or Barrel mount

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Garmin Panoptix PS22-TR Transducer

Model: 010-01945-00

• LiveVü Forward sonar shows the structure and fish ahead and around your boat
• LiveVü Down sonar shows below and around your boat for vertical fishing and jigging
• Narrow beam angle (20 degrees) for crisp, improved resolution and clear images
• Mounts to the shaft or motor barrel of a trolling motor
• One-screw mount design makes it easy to change modes

Garmin is the first to bring 2 modes of Panoptix sonar imaging to 1 transducer for your boat. Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat and below it — in real time — up to 100’ away.

Panoptix delivers a whole new perspective to fishing. Other sonar only shows images of fish your transducer has passed over. To capture those images, your boat must be moving. Everything that shows up on your screen is technically history; it’s all in the past. With Panoptix LiveVü Forward and LiveVü Down sonars, your boat can be moving or stationary. Wherever your trolling motor is pointed, you’ll see live images of what is happening under the water.

Watch your lure as it sinks, and see its depth and movement as you retrieve it. See it move in relation to structure in the water. See fish swimming and reacting to your bait. If they attack, you’ll see and feel the hit! Once on the hook, watch the fight on your screen as it happens. With Panoptix LiveVü Forward and LiveVü Down, you can see it all come to life up to 100’ away or below your boat.

Specifications

Frequency	417 kHz
Power	48 watts
Beamwidth	LiveVü: 20°x100°
Maximum depth	300 ft. Down; 300 ft. Forward
Depth/Speed/Temperature	Depth and Temperature
Number of pins	Ethernet
Cable length	Power Cable 13 ft.; Ethernet Cable 13 ft.
Mount Type	Trolling motor shaft. or Barrel mount

What's in the Box:

• Panoptix PS22-TR transducer with integrated 4 meter network and power cable
• Trolling motor shaft mount
• Trolling motor barrel mount
• Documentation

Towed motor Panoptix sensor for LiveVu images! The Panoptix PS22-TR towed motor sensor is the first of its kind to provide two Panoptix sonar imaging modes in one sensor. Panoptix's WYSIWYG sonar function is unmatched by other sonars, especially to observe the bottom and front of the ship in real time, up to 100 feet. Leave once. Garmin's PS22-TR has a perfect single-screw installation design, which can easily realize the transition from forward scanning sonar to downward scanning sonar. The narrow beam angle of 20 degrees always provides clearer and enhanced images to always improve the resolution below and in front of you to help you land the next big fish. Easily describe the bait when the bait is put down, watch the fish react to the bait, and observe the start of the battle. Not only will you feel the blow online, you will also see it. For the new vision of fishing, the Garmin Panoptix PS22TR transducer shines a new light on the road to the next generation of sonar! This product is not compatible with Xi5 traction motors. Compare all Panoptix models!





Buy with the best price Garmin Panoptix PS22-TR LiveVu Forward & Down Transducer for only $999 from Anchor Sailor! Same day free shipping before 3pm.

Garmin Panoptix PS22-TR LiveVu Forward & Down Transducer Technical Specifications

Type:
Vendor:	Garmin
Weight:	2.8 lb
Cable Length (Feet):	13'
Mounting Style:	Trolling Motor
Temperature:	Yes
Speed Included:	No
Imagining:	Down/Forward
Categories v2:	Marine Navigation & Instruments | Transducers
Category v1:	TRANSDUCERS
UPC:	753759189570
