Garmin gWind Race Transducer Product Description

gWind Race Transducer

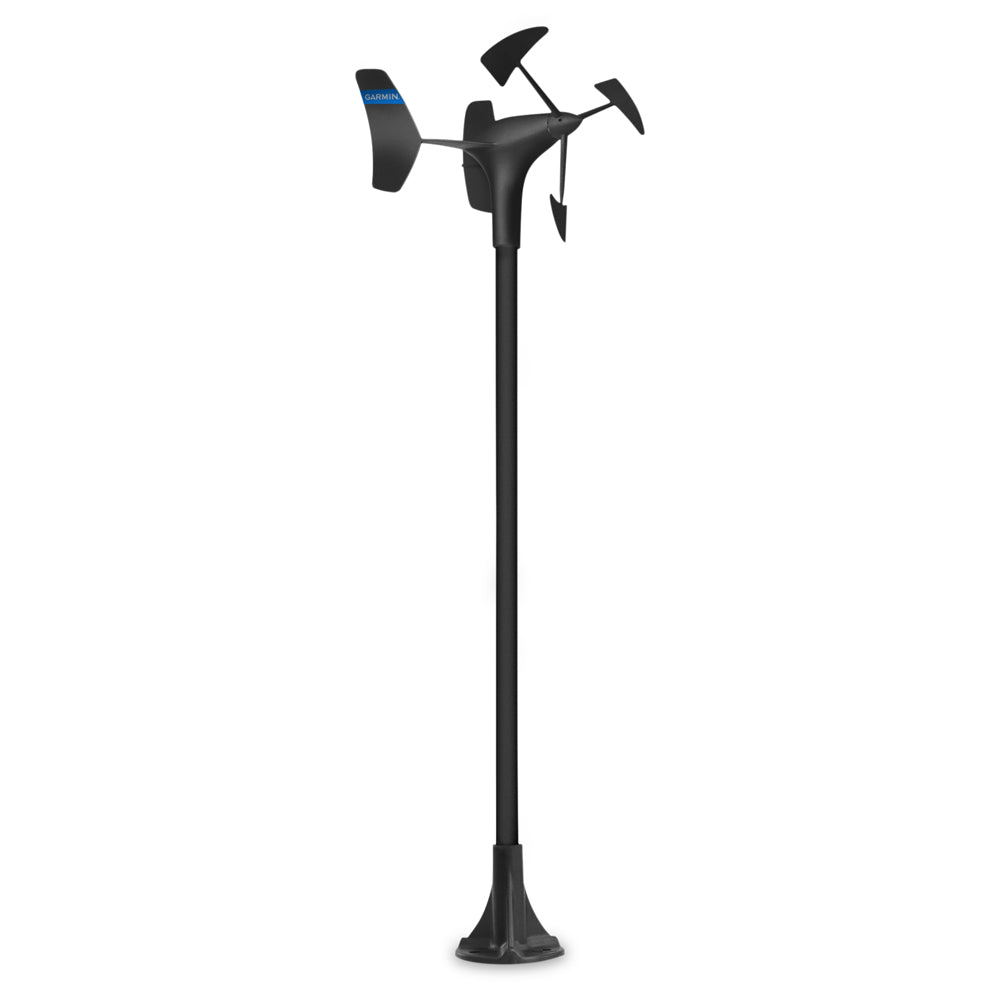

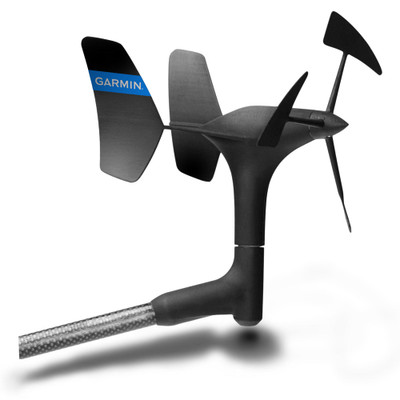

Designed for racing sailboats it features a 3' straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin fin design gives a more stable True Wind Angle (TWA). The three-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. Included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000.

Features:

• Designed for racing sailboats
• 3' (.91m) straight pole to raise the wind transducer above the mast to remove turbulence errors from sail wash
• Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air
• Twin-fin design gives a more stable True Wind Direction (TWD)
• Optic reading technique makes this transducer superior at low wind speeds and provides for excellent linearity
• GND 10 black box bridges NMEA 2000 data to Nexus Network and enables Garmin compatible chartplotters to work with Nexus sail equipment and vice versa
• Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB networks

In The Box

• gWind Race transducer
• GND 10
• USB Mini-B cable
• NMEA 2000 drop cable (2 m)
• NMEA 2000 T-connector
• Mast cable with female connector (25 m)
• Nexus network cable (5 m; straight connector)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

• Designed for racing sailboats
• 3.3 feet (1 meter) straight pole raises the wind transducer above the mast to remove turbulence errors from the sail wash
• Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air twin-fin design gives a more stable True Wind Angle (TWA)
• Optic reading technique provides superior performance at low wind speeds and excellent linearity
• GND™ 10 black box bridges NMEA 2000® data to Nexus Network and enables Garmin compatible chartplotters integrate with Nexus sail equipment and vice versa

Designed for racing sailboats, the gWind Race features a 3.3 feet (1 meter) straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chartplotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chartplotters and NMEA 2000.

Specifications

• Unit Dimension, H: 117.2 cm
• Weight: 320g
• Cable Length: 25m
• Waterproof: Yes (IPX7)
• Temp Range: From 5°F to 158°F (-15°C to 70°C)
• Voltage Range: 9-16V
• Power Usage: 0.33W
• Compass Safe Distance: N/A
• Accuracy Angle: Better than 1.5°
• Speed: Better than 3%
• NMEA 2000® Load Equivalency Number (LEN): N/A
• Wireless Connectivity: No

In the Box

• gWind Race transducer
• GND™ 10
• USB Mini-B cable
• NMEA 2000® drop cable (2 m)
• NMEA 2000 T-connector
• Mast cable with female connector (25 m)
• Nexus network cable (5 m; straight connector)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

gWind Race is specially designed for racing sailboats. It has a 3.3-foot (1 meter) straight pole that can raise the sensor above the mast to eliminate turbulence errors. The dual-fin technology of the three-blade propeller can achieve more accurate TWS in lighter air, and the dual-fin design can provide more stable TWA. Unlike the cup cover design, the three-blade propeller is always efficient. Combined with optical readings, the sensor provides excellent accuracy at low wind speeds and provides excellent linearity. And use our lightest cable to connect. The included GND 10 black box bridge allows Nexus Network and Garmin compatible chartplotters to share important NMEA 2000 data. Plug-and-play installation between Nexus, Garmin plotters and NMEA 2000 is easy.



Buy with the best price Garmin gWind Race Transducer for only $1349 from Anchor Sailor! Same day shipping before 3pm.

Garmin gWind Race Transducer Technical Specifications

Type:
Vendor:	Garmin
Weight:	7.0 lb
