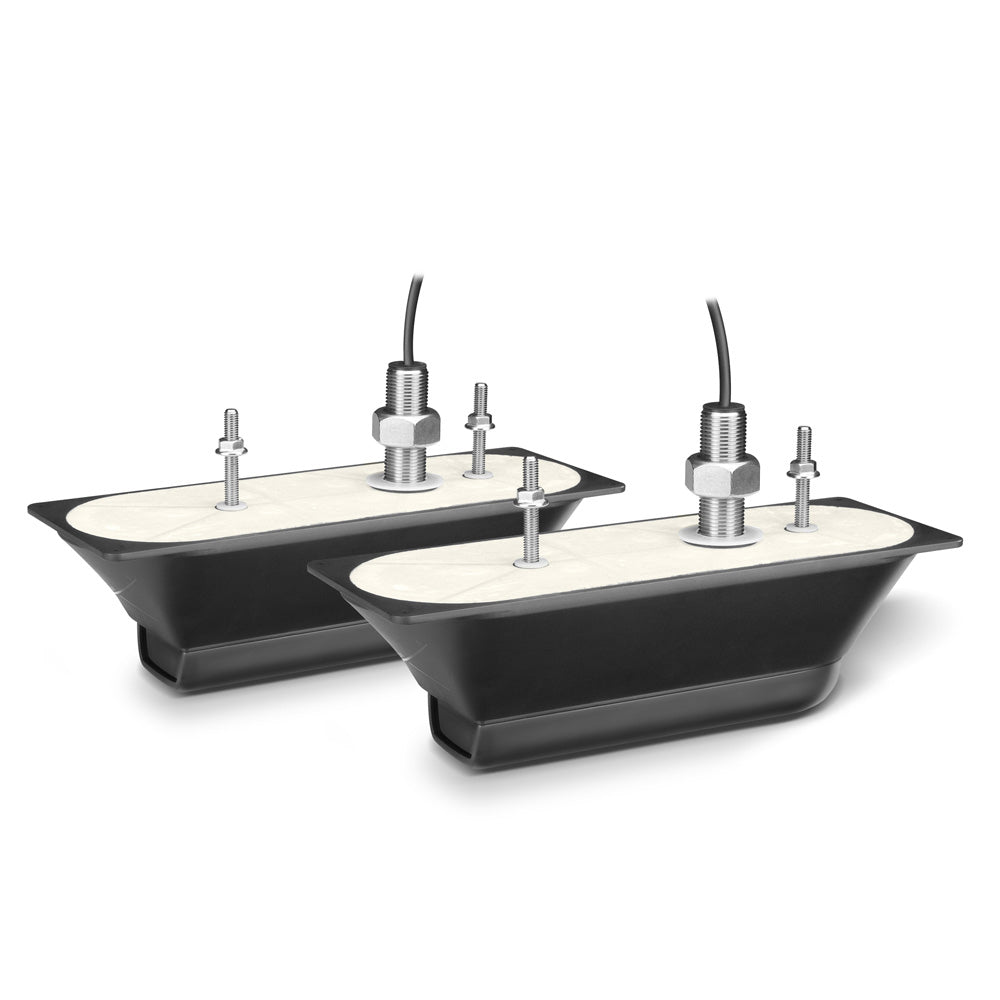

Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin Product Description
Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.
The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.
GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 100196611 Attributes
-
Mounting Location: Thru-Hull Mount
-
Number Of Pins: 12 Pin
-
Depth: 1800 Feet For Traditional, 1000 Feet For ClearVü And 750 Feet For SideVü
-
Power Rating: 600 Watt For Traditional And 500 Watt For ClearVü/ SideVü
-
Frequency Range: 80-160 kHz For Mid-Band CHIRP And 260/455 kHz For ClearVü/SideVü
-
Supported Angle: 0 To 25 Degree Deadrise
-
Cable Length: 5 Feet
Garmin 100196611 Features & Benefits
- Perfect For Coastal And Offshore Fishermen Who Want CHIRP Traditional Sonar And CHIRP ClearVu And CHIRP SideVu Scanning Sonar With A Stainless Steel Stems
- Pair Of Thru-Hull Mounted Transducers Consistently Displays Clear And Crisp Fish Arches With Superior Target Separation, Clear Pictures Of Objects, Structure And Fish That Pass By Your Boat
- Transducer Is Optimized For Rough Sea Conditions
- Transducer With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt Per Element
- Provides A 12-Pin Port And Starboard Transducers With Stainless Steel Stems, Fairing Blocks, Y-Cable, Bushings, Mounting Hardware And Installation Instructions
- Limited 2 Year Warranty
Garmin 100196611 Installation Instructions
Garmin 100196611 Warranties
GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W
(CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz)
Transducers with Temp (12-Pin)This thru-hull transducer pair provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. These traditional
CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for
depth performance and rough conditions.
The CHIRP DownVü/ SideVü elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz. The
traditional CHIRP sonar has a power rating of 600 W and operating
frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in
fast-response temperature sensor. For hull deadrises less than 25 degrees.
GT51M-THP includes a 12-pin port/starboard transducers with stainless steel
stems, fairing blocks, Y-cable, bushings, mounting hardware and installation
instructions. Follow the instructions carefully to avoid damaging your boat.
Compatible Devices:
- GPSMAP® 7607xsv
- GPSMAP® 7608xsv
- GPSMAP® 7610xsv
- GPSMAP® 7612xsv
- GSD 25 Premium Sonar Module
This is the ideal choice for coastal and offshore fishermen who want to perform CHIRP traditional sonar, CHIRPClearVü and CHIPSideVü scanning sonar through stainless steel rods. The pair of sensors installed through the hull always shows a clear and bright fish bow, and has an excellent target separation effect. Function and clear image. Objects, structures and fish pass under the ship and reach each side of the ship, and are optimized for harsh sea conditions. The rated power of CHIRPClearVü/SideVü components is 500 W per component, and the operating frequency is 260/455 kHz. The rated power of traditional CHIRP sonar is 600 W, and the working frequency of mid-band CHIRP is 80-160 kHz. It includes a built-in fast response temperature sensor. For the hull, the dead angle is less than 25 degrees. GT51M-THP includes a 12-pin port/starboard sensor with stainless steel rod, fairing, Y-cable, bushing, installation hardware and installation instructions. Please follow the instructions carefully to avoid damage to your boat.
- Thru-Hull Pair
- Mid-Chirp
- 260/455 kHz ClearVu
- 260/455 kHz SideVu
Frequently Asked Questions (FAQ) About Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin
Who is the Garmin?
Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.
How to describe Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin?
Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.
The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.
GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
- Full-range, high-quality sonar imaging
- Clear imaging in both shallow and deep water
- Wide frequency range, from CHIRP to traditional
- Transducer with temperature measurement
- Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)
- GT51M-THP - Stainless Steel Thru-Hull Pair DownV& 252;/SideV& 252; 500 W (CHIRP 260/455 kHz)
- These thru-hull transducers provide a clear sonar picture of what's below your boat.
Garmin GT51M-THP SS TH transducer offers the best of three worlds in one transducer. With traditional CHIRP sonar, CHIRP ClearV& 252; and CHIRP SideV& 252; scanning sonar, it's perfect for coastal and offshore fishermen. The stainless steel stem is corrosion-resistant and can withstand the harshest environments.
What is the power rating of the product?
600 Watt For Traditional And 500 Watt For ClearVü/ SideVü
- Full-range, high-quality sonar imaging
- Clear imaging in both shallow and deep water
- Wide frequency range, from CHIRP to traditional
- Transducer with temperature measurement
- Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducers with Temp (12-Pin)
- GT51M-THP - Stainless Steel Thru-Hull Pair DownV& 252;/SideV& 252; 500 W (CHIRP 260/455 kHz)
- These thru-hull transducers provide a clear sonar picture of what's below your boat.
- Clear and crisp traditional CHIRP sonar, CHIRP ClearV& 252;, and CHIRP SideV& 252; scanning sonar with stainless steel stems
- Perfect for the coastal and offshore fisherman who want a reliable product that is perfect for all their fishing needs
- Garmin GT51M-THP Transducer THRU-HULL Pair 12-Pin Model: 010-01966-11
- Ideal for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearV& 252; and CHIRP SideV& 252; scanning sonar with stainless steel stems
- CHIRP traditional sonar, CHIRP ClearV& 252; and CHIRP SideV& 252; scanning sonar with stainless steel stems
What is the type of the product?
What is the working frequency of the product?
Traditional 80-160
DownVu and SideVu: 245-275 and 445-465
How many pins exists in the connector of the product?
What is the material of Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin?
What is the sonar type of the product?
CHIRP Sonar
Depth
Temperature
Multiple Beams
Variable Frequencies
What's the Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin package dimensions and weight?
13 (w) X 6 (h) X 17 (l) inches and the weight is: 15.1 lb.
What is the maximum depth of the product?
Traditional 1800 Feet
DownVu 1000 Feet
SideVu 750 Feet
Speed feature included to the product?
How to mount or what is the mounting style of Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin?
This product can read the temprature?
What is the imagining type of the product?
What is the length of cable?
What is the connection interface of product?
What is the length of cable (feet)?
Is this product supporting CHIRP and what's the type?
What is the beam metrics for this product?
Traditional 24-13
DownVu 2x51 at 260kHz and 1.4x29 at 455kHz
SideVu 2x51 at 260 and 1.4x29 at 455kHz
What is the deadrise angle of product?
What is the transmit power of the product?
600 Watts Traditional
500 Watts DownVu and SideVu
What is the manufacturer notes about Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin?
Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.
The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.
GT51M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Save
$390 when you buy the
Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin for only
$1309 from NVN Marine! Same day free shipping before 3pm.
Garmin GT51M-THP SS TH Pair DownVü/SideVü 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin Technical Specifications
| Type: |
|
| Vendor: |
Garmin
|
| Weight: |
15.0 lb
|
| Imagining: |
Standard/Down/Side
|
| Chirp: |
Medium/Non Traditional
|
| Cable Length (Feet): |
5' + 30' y-extension
|
| Temperature: |
Yes
|
| Speed Included: |
No
|
| Pins: |
12
|
| Mounting Style: |
Thru-Hull
|
| Product Manual: |
|
| Product Brochure: |
|
| Product Installation: |
|
