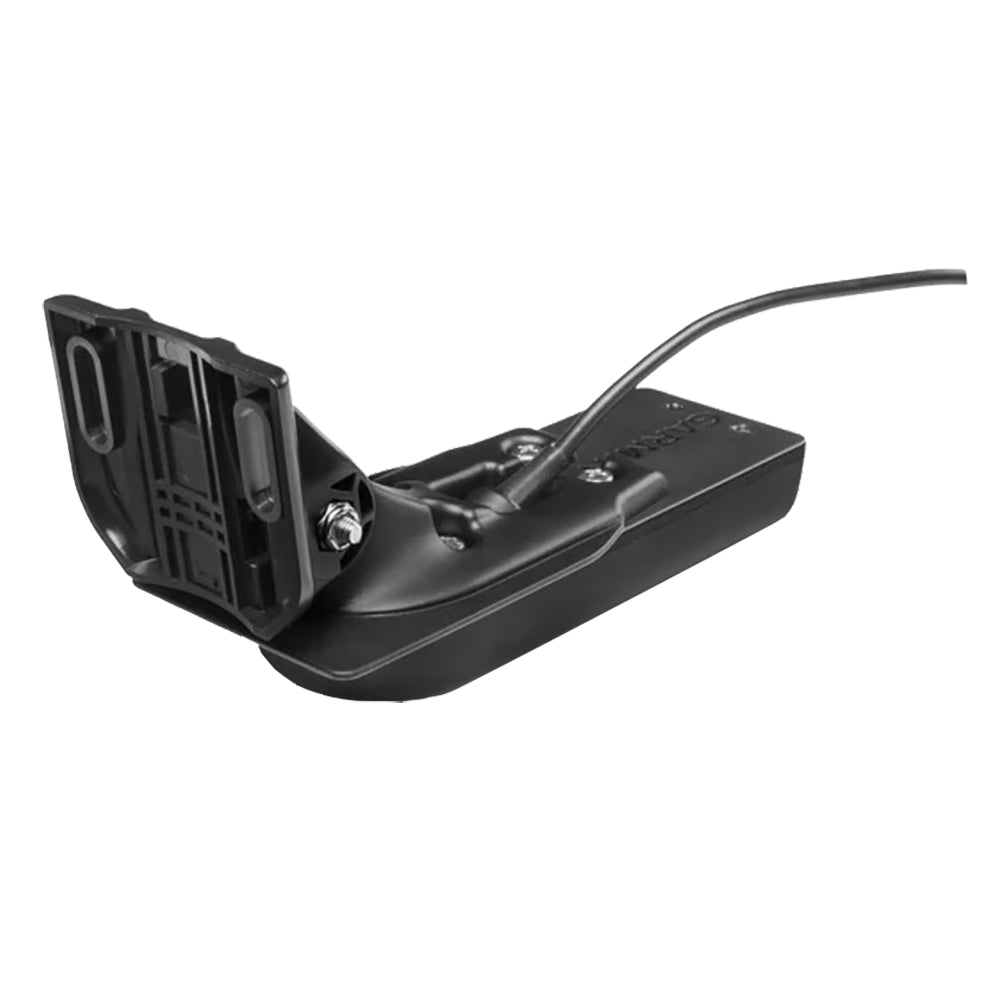

Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin

No reviews yet Write a Review
$131.01
SKU:
010-01960-01
UPC:
753759152765
Condition:
New
Availability:
In stock, It will be shipped by UPS Ground.
5 customers are viewing this product

Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin

$131.01

Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin Product Description

GT20-TM,Transducer, 8pin, Traditional Frequency: 77/200, DownVü frequency: 455/800, New Design

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 100196001 Attributes

  • Mounting Location: Transom Mount
  • Number Of Pins: 8 Pin
  • Depth: 1900 Feet For Traditional And 750 Feet For ClearVü
  • Power Rating: 500 Watt
  • Frequency Range: 77/200 kHz For Traditional And 455/800 kHz For ClearVü
  • Supported Angle: 0 To 70 Degree Transom Angle
  • Cable Length: 20 Feet

Garmin 100196001 Features & Benefits

  • Perfect For The Shallow Water Fishermen Who Want Traditional And CHIRP ClearVu Scanning Sonar
  • Transom Or Trolling Motor Mounted Transducer Consistently Displays Fish Arches As Well As Clear Pictures Of Objects, Structure And Fish That Pass Below Your Boat
  • 20 Feet Transducer Cable With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt
  • Transducer Comes With Transom And Trolling Motor Mounts, And Installation Instructions
  • Limited 2 Year Warranty

Garmin 100196001 Installation Instructions

Garmin 100196001 Warranties


GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin

Get ultra-clear sonar pictures of objects, structure and fish that pass below your boat with this all-in-one 8-pin transducer.

This 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and 0 to 70 transom angle.

Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Using traditional 500W sonar and 750 feet DownVu to reach a depth of 1,900 feet, this 77/200 kHz HD-ID end-mounted transducer provides ultra-clear sonar images of your objects, structures and fish. Built-in temperature sensor with a rated power of 500W. Compatible with Garmin echoMap 50dv, 70dv, GPSMAP 5x7, 8x0, 10x0 and 7600xsv series. GAX1208701 or 010-12087-01 has been replaced by 010-01960-01.













Frequently Asked Questions (FAQ) About Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin






















Who is the Garmin?

Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.

How to describe Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin?

GT20-TM,Transducer, 8pin, Traditional Frequency: 77/200, DownVü frequency: 455/800, New Design

What is the power rating of the product?

500 Watt

What is the type of the product?

Transom Mount

What is the working frequency of the product?

DownVu: CHIRP 435-475 kHz
CHIRP 800-840 kHz
Traditional 77/200

How many pins exists in the connector of the product?

8

What is the material of Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin?

Plastic

What is the sonar type of the product?

CHIRP Sonar
Depth
Temperature
High-Detail Resolution

What's the Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin package dimensions and weight?

7 (w) X 3.5 (h) X 7 (l) inches and the weight is: 1.45 lb.

What is the maximum depth of the product?

Traditional 1900 Feet
DownVu 750 Feet

Speed feature included to the product?

No

How to mount or what is the mounting style of Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin?

Transom

This product can read the temprature?

Yes

What is the imagining type of the product?

Standard/Down

What is the length of cable?

20 Feet

What is the connection interface of product?

8-Pin Connector

What is the length of cable (feet)?

20'

Is this product supporting CHIRP and what's the type?

Non Traditional

What is the beam metrics for this product?

Traditional: 45/15 Degrees
DownVu 2.5x53

What is the transmit power of the product?

500 Watts

What is the manufacturer notes about Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin?

GT20-TM,Transducer, 8pin, Traditional Frequency: 77/200, DownVü frequency: 455/800, New Design


Save $21 when you buy the Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin for only $78 from NVN Marine! Same day shipping before 3pm.

Garmin GT20-TM Transom Mount DownVü 500W (CHIRP 455/800kHz); Traditional 500W (77/200kHz) Transducer w/Temp - 8-Pin Technical Specifications

Type:

Vendor:

Garmin

Weight:

1.5 lb

Temperature:

Yes

Speed Included:

No

Pins:

8

Imagining:

Standard/Down

Chirp:

Non Traditional

Cable Length (Feet):

20'

Mounting Style:

Transom

Product Brochure:

Product Installation:
