Garmin GPSMAP723 7 Plotter with Worldwide Basemap Product Description

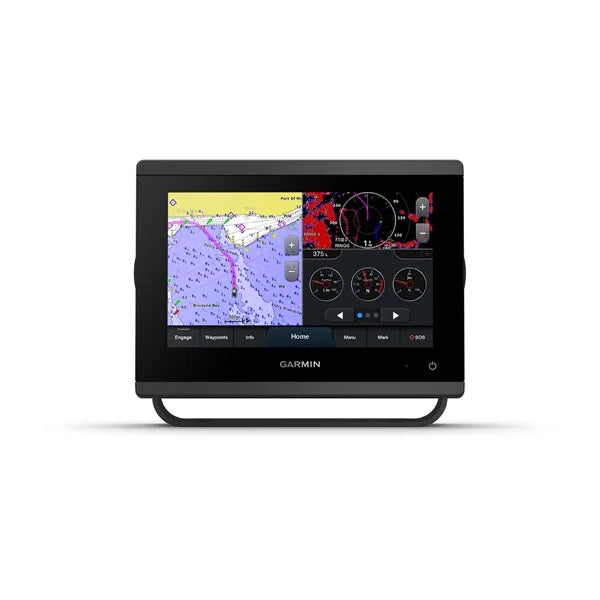

Garmin GPSMAP 723 Chartplotter with Worldwide Basemap
Model: 010-02365-00
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts1 for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more right on the screen.
- Manage your marine experience from nearly anywhere1.
With 60% more display pixels and nearly double the processing power of previous-generation 7" GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, its easy to retrofit this 7" plotter in a wider range of dash configurations.
New higher-resolution 7" displays offer improved sunlight readability with 60% more pixels than previous-generation 7" GPSMAP devices.
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more5.
Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
Specifications
| General |
| PHYSICAL DIMENSIONS |
7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm) |
| DISPLAY SIZE |
6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION |
1024 x 600 pixels |
| DISPLAY TYPE |
WSVGA display |
| WEIGHT |
2.8 lbs (1.3 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 17.6 W
Typical current draw at 12 Vdc: 1.1 A
Max current draw at 12 Vdc: 1.5 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK PORTS |
1 |
| Maps & Memory |
| PRELOADED MAPS |
Worldwide Basemap |
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (with external black box, sold separately) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS |
Yes |
| GSD BLACK BOX SONAR SUPPORT |
Yes |
| GCV BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| CHIRP SONAR TECHNOLOGY |
Yes (with external black box, sold separately) |
| CLEARVü |
Yes (with external black box, sold separately) |
| SIDEVü |
Yes (with external black box, sold separately) |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
What's in the Box:
- GPSMAP 723 chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Garmin GPSMAP 723 Chartplotter 010-02365-00 has LCD and global base map. With its enhanced processing power and a new ultra-thin line design with edge-to-edge glass and a smaller unit footprint, the plotter can be easily modified Configure for multiple dashboards. The new high-resolution display provides higher daylight readability with 60% higher pixels than previous GPSMAP devices. The sail-assistance function allows you to view the lying line, the starting line guidance of the race, enhanced wind direction ascent, heading and ground route, real wind direction data field and tide/current/time slider, wind direction angle, setting and drift, wind speed, etc. The optional g3 Vision chart provides the best Garmin and Navionics data, automatic navigation technology and other advanced navigation features. If you have multiple compatible Garmin devices on board, you can share information among them, such as maps, user data, radar, and IP camera video. Use NMEA 0183 or 2000 to connect to a compatible autopilot, digital switch, weather, Fusion-Link audio system, media, VHF, AIS, etc. from one screen. The built-in Wi-Fi connection is paired with the free all-in-one mobile app to access the "one-chart" function, smart notifications, software updates, Garmin Helm digital exchange, Garmin Quickdraw community data, etc. Use ANT technology to connect some of your favorite devices, such as quatix marine watch, g-Wind Wireless 2 sensor, GNX Wind marine instrument and wireless remote control. Now you can connect the chartplotter to different types of engines, including some Yamaha engines that use the J1939 standard. The unique One-Helm function combines all the operations and functions of all selected third-party devices (such as Empir-Bus digital switching) on ââ¬â¹Ã¢â¬â¹one screen. Used in conjunction with Panoptix PS51 (transducer sold separately) and Front-Vu scanning sonar, it can help you see in real time when approaching within 300' and avoid submerging obstacles.
Garmin GPSMAP 723 chartplotter 010-02365-00 has LCD and global basic map. With its enhanced processing power and new ultra-thin production line design (edge-to-edge glass and smaller unit footprint), the configuration of the plotter can be easily changed to configure multiple dashboards. The new high-resolution display provides greater daylight readability, and its pixels are 60% higher than previous GPSMAP devices. With the help of the sail assist function, you can view the lying line, the starting line guide of the race, enhanced wind direction rise, heading and ground route, real wind direction data field and tide/current/time slider, wind direction angle, setting and drift, wind speed, etc. The optional g3 Vision chart provides the best Garmin and Navionics data, automatic navigation technology and other advanced navigation features. If there are multiple compatible Garmin devices on the board, you can share information between them, such as maps, user data, radar and IP camera video. Use NMEA 0183 or 2000 to connect to a compatible autopilot, digital switch, weather, Fusion-Link audio system, media, VHF, AIS, etc. from one screen. The built-in Wi-Fi connection is paired with the free all-in-one mobile app to access the "single image" function, smart notifications, software updates, Garmin Helm digital exchange, Garmin Quickdraw community data and more. Use ANT technology to connect some of your favorite devices, such as quatix navigation watch, g-Wind Wireless 2 sensor, GNX Wind navigation instrument and wireless remote control. Now you can connect the chartplotter to different types of engines, including some Yamaha engines that use the J1939 standard. The unique single helmet function combines all the operations and functions of all selected third-party devices (such as Empir-Bus digital switches) on one screen. Used in combination with Panoptix PS51 (transducer sold separately) and Front-Vu scanning sonar, it can help you see and avoid submerging obstacles in real time as you approach within 300'.
Frequently Asked Questions (FAQ) About Garmin GPSMAP723 7 Plotter with Worldwide Basemap
Who is the Garmin?
How to describe Garmin GPSMAP723 7 Plotter with Worldwide Basemap?
Who is the Garmin?
Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.
How to describe Garmin GPSMAP723 7 Plotter with Worldwide Basemap?
Garmin GPSMAP 723 chartplotter 010-02365-00 has LCD and global basic map. With its enhanced processing power and new ultra-thin production line design (edge-to-edge glass and smaller unit footprint), the configuration of the plotter can be easily changed to configure multiple dashboards. The new high-resolution display provides greater daylight readability, and its pixels are 60% higher than previous GPSMAP devices. With the help of the sail assist function, you can view the lying line, the starting line guide of the race, enhanced wind direction rise, heading and ground route, real wind direction data field and tide/current/time slider, wind direction angle, setting and drift, wind speed, etc. The optional g3 Vision chart provides the best
Garmin and Navionics data, automatic navigation technology and other advanced navigation features. If there are multiple compatible
Garmin devices on the board, you can share information between them, such as maps, user data, radar and IP camera video. Use NMEA 0183 or 2000 to connect to a compatible autopilot, digital switch, weather, Fusion-Link audio system, media, VHF, AIS, etc. from one screen. The built-in Wi-Fi connection is paired with the free all-in-one mobile app to access the "single image" function, smart notifications, software updates,
Garmin Helm digital exchange,
Garmin Quickdraw community data and more. Use ANT technology to connect some of your favorite devices, such as quatix navigation watch, g-Wind Wireless 2 sensor, GNX Wind navigation instrument and wireless remote control. Now you can connect the chartplotter to different types of engines, including some Yamaha engines that use the J1939 standard. The unique single helmet function combines all the operations and functions of all selected third-party devices (such as Empir-Bus digital switches) on one screen. Used in combination with Panoptix PS51 (transducer sold separately) and Front-Vu scanning sonar, it can help you see and avoid submerging obstacles in real time as you approach within 300'.
- Garmin GPSMAP 723 Chartplotter with Worldwide Basemap Model: 010-02365-00
- Easily integrate with more engines. Connect to compatible third-party devices with OneHelm& 8482; digital switching.
- Easily build your marine system using the best of network
- Garmin GPSMAP 723 Chartplotter with Worldwide Basemap Model: 010-02365-00
- Easily integrate with more engines. Connect to compatible third-party devices with OneHelm& 8482; digital switching. Easily build your marine system using the best of network
The Garmin GPSMAP 723 Chartplotter is a must-have for any boat. With a worldwide basemap and compatibility with third party devices, this chartplotter is the perfect addition to any marine system.
Buy with the best price
Garmin GPSMAP723 7 Plotter with Worldwide Basemap for only
$1099 from NVN Marine! Same day fast and free shipping before 3pm.
Garmin GPSMAP723 7 Plotter with Worldwide Basemap Technical Specifications
