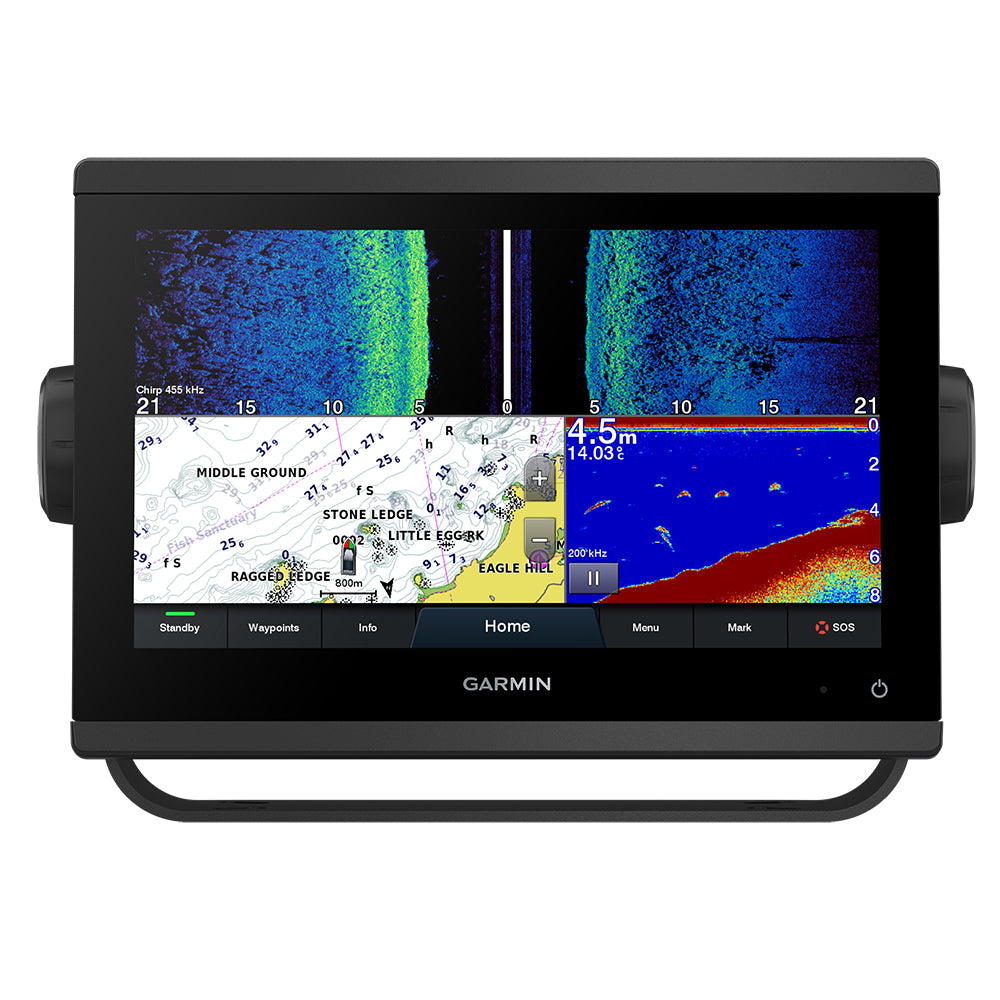

Garmin GPSMAP 923xsv Combo GPS/Fishfinder - Worldwide Product Description
GPSMAP 923xsv Combo GPS/Fishfinder - Worldwide
GET A SHARPER VIEW FROM YOUR CONNECTED HELM
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9 GPSMAP devices, this crisp chartplotter/sonar combo with a high-resolution IPS display integrates seamlessly into your Garmin marine system.
Features:
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best network connectivity.
- Compatible with premium maps and charts1 for the best in Garmin navigation.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere2.
ULTRA HIGH-DEFINITION SCANNING SONAR
Get built-in Ultra High-Definition SideV and ClearV scanning sonars with vivid, high-contrast color palettes to help distinguish fish from the structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.
PANOPTIX SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real-time.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 9 plotter in a wider range of dash configurations.
IMPROVED DISPLAY OPTICS
Higher-resolution 9 IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 GPSMAP devices.
OPTIONAL BLUECHART G3 VISION CHARTS
These optional charts offer the best of Garmin and Navionics data, Auto Guidance3 technology and other premium navigation features.
OPTIONAL RADAR BUNDLE
To help you avoid weather and traffic on the water, the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar, and IP camera video among them.
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data, and more4.
INTEGRATED ANT TECHNOLOGY
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments, and wireless remote controls.
J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
ONEHELM FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
What's In The Box?
- GPSMAP 923xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
1 Sold separately
2 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 723xsv
3 Auto Guidance is for planning purposes only and does not replace safe navigation operations
4 When paired with your compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP® 923xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Model: 010-02366-02
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts for the best in Garmin navigation.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere2.
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, its easy to retrofit this 9" plotter in a wider range of dash configurations.
New higher-resolution 9" IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.
To help you avoid weather and traffic on the water, the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more4.
Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
Specifications
| General |
| PHYSICAL DIMENSIONS |
9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE |
7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION |
1280 x 720 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
3.6 lbs (1.6 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK PORTS |
1 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS |
Yes |
| GSD BLACK BOX SONAR SUPPORT |
Yes |
| GCV BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
What's in the Box:
- GPSMAP 923xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
Use GPSMAP 923xsv chartplotter to get a clearer view from the connected helmet. Its high-resolution 9-inch in-plane switching display has 50% more pixels than the previous generation touch screen. With its compact footprint, vivid sonar palette and almost twice the processing power of the previous generation GPSMAP equipment, it is seamlessly integrated into the Garmin marine system-supporting optional chart and automatic navigation technology, Thereby enhancing the confidence needed to help you reach your destination. GPSMAP 923xsv also has built-in ultra-high-definition SideVu and ClearVu scanning sonar, and supports 1 kW CHIRP traditional sonar and fully networkable radar and Panoptix LiveScope sonar equipment. Use HTML 5.0, NMEA 2000 and NMEA 0183 network connection, J1939 and Garmin navigation network for engine, easily build your navigation system (from compatible sonar and autopilot to compatible radar, camera and multimedia). Or pair the plotter with other compatible Garmin devices, such as quatix marine smart watches, wind sensors, wireless remote controls, etc.
Frequently Asked Questions (FAQ) About Garmin GPSMAP 923xsv Combo GPS/Fishfinder - Worldwide
Who is the Garmin?
What is the resolution of the product?
What is the weight of the product?
Who is the Garmin?
Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.
What is the resolution of the product?
What is the weight of the product?
Buy with the best price
Garmin GPSMAP 923xsv Combo GPS/Fishfinder - Worldwide for only
$1499 from NVN Marine! Same day free shipping before 3pm.
Garmin GPSMAP 923xsv Combo GPS/Fishfinder - Worldwide Technical Specifications
