Garmin GPSMAP 923 Non-Sonar w/Worldwide Basemap Product Description

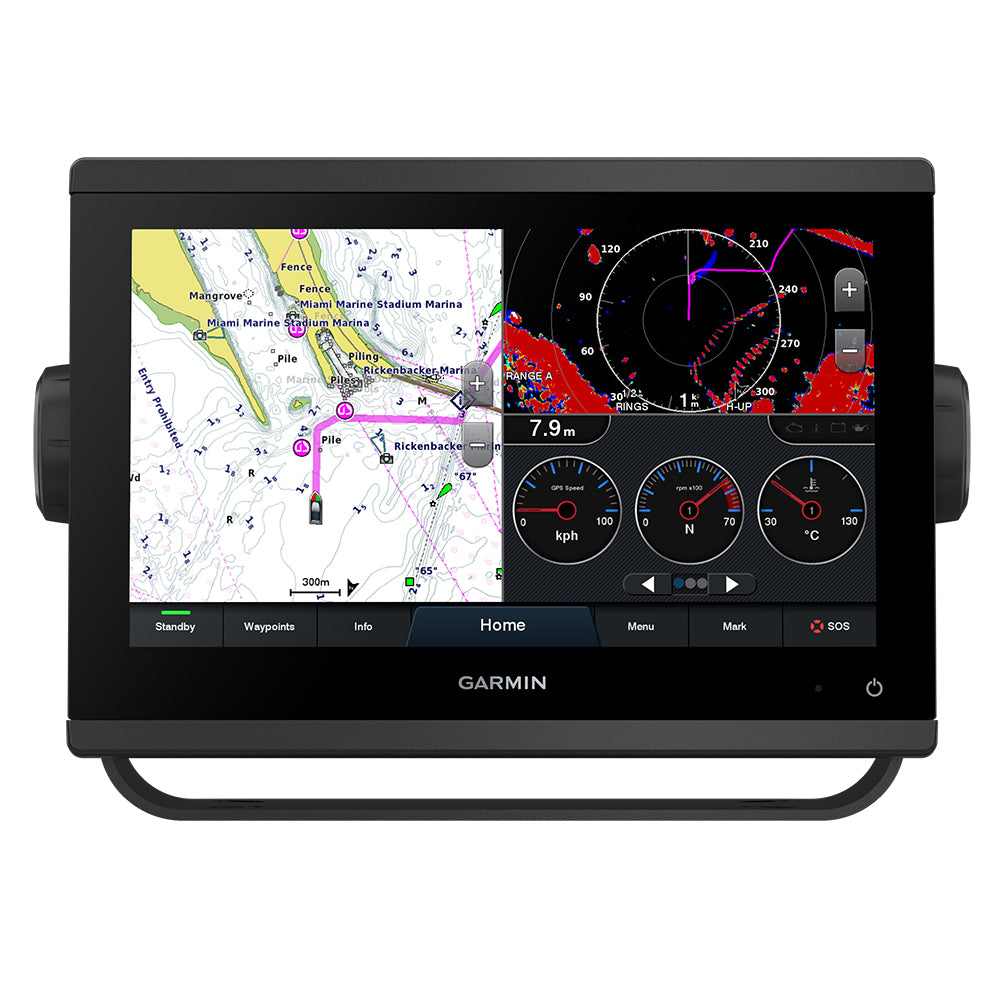

GPSMAP 923 Non-Sonar with Worldwide Basemap
GET A SHARPER VIEW FROM YOUR CONNECTED HELM
With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9 GPSMAP devices, this crisp chartplotter/sonar combo with a high-resolution IPS display integrates seamlessly into your Garmin marine system.
Features:
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best network connectivity.
- Compatible with premium maps and charts1 for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more right on the screen.
- Manage your marine experience from nearly anywhere2.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this 9 plotter in a wider range of dash configurations.
IMPROVED DISPLAY OPTICS
Higher-resolution 9 IPS displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9 GPSMAP devices.
GARMIN SAILASSIST SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more3.
OPTIONAL BLUECHART G3 VISION CHARTS
These optional charts offer the best of Garmin and Navionics data, Auto Guidance3 technology, and other premium navigation features.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar, and IP camera video among them.
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data, and more4.
INTEGRATED ANT TECHNOLOGY
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments, and wireless remote controls.
J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
ONEHELM FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
PANOPTIX SONAR SUPPORT
Pair with Panoptix PS51 (transducer sold separately) with FrontV scanning sonar6 to help you see and avoid submerged obstacles in real-time as you approach within a 300' range.
What's In The Box?
- GPSMAP 923 chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
1 Sold separately
2 Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 723xsv
3 Auto Guidance is for planning purposes only and does not replace safe navigation operations
4 When paired with your compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP 923 Chartplotter with Worldwide Basemap
Model: 010-02366-00
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Compatible with premium maps and charts for the best in Garmin navigation.
- Take the guesswork out of sailing with clear laylines and more right on the screen.
- Manage your marine experience from nearly anywhere2.
With 50% more display pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp touchscreen chartplotter with high-resolution IPS display integrates seamlessly into your Garmin marine system.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, its easy to retrofit this 9" plotter in a wider range of dash configurations.
New higher-resolution 9" displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more5.
Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300 range.
Specifications
| General |
| PHYSICAL DIMENSIONS |
9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE |
7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION |
1280 x 720 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
3.6 lbs (1.6 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK PORTS |
1 |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (with external black box, sold separately) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS |
Yes |
| GSD BLACK BOX SONAR SUPPORT |
Yes |
| GCV BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| CHIRP SONAR TECHNOLOGY |
Yes (with external black box, sold separately) |
| CLEARVü |
Yes (with external black box, sold separately) |
| SIDEVü |
Yes (with external black box, sold separately) |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
What's in the Box:
- GPSMAP 923 chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Frequently Asked Questions (FAQ) About Garmin GPSMAP 923 Non-Sonar w/Worldwide Basemap
Who is the Garmin?
What is the resolution of the product?
What is the weight of the product?
Who is the Garmin?
Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.
What is the resolution of the product?
What is the weight of the product?
Buy with the best price Garmin GPSMAP 923 Non-Sonar w/Worldwide Basemap for only $1399 from NVN Marine! Same day free shipping before 3pm.
Garmin GPSMAP 923 Non-Sonar w/Worldwide Basemap Technical Specifications
