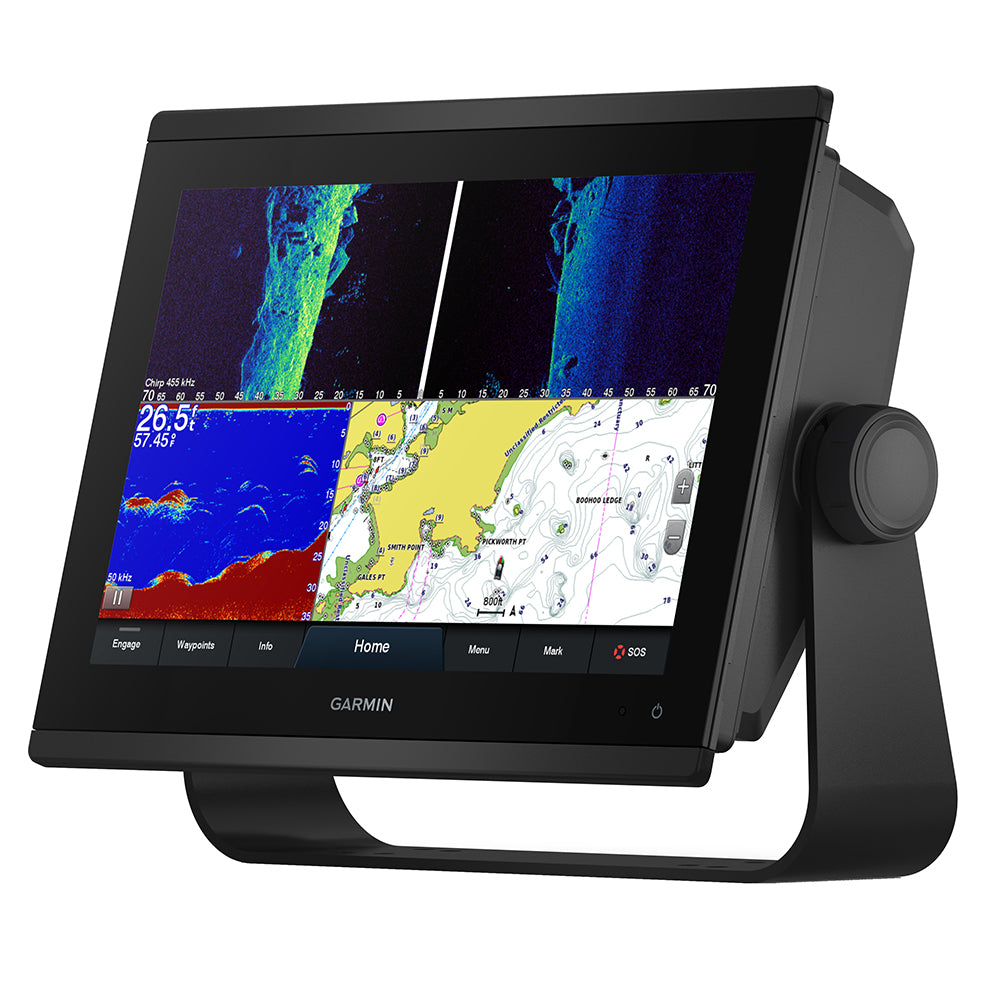

Garmin GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeVu g3 Product Description
GPSMAP 1243xsv Combo GPS/Fishfinder - Preloaded US+Canada+Bahamas BlueChart g3 - LakeV g3
Get a sharper view from your connected helm with the GPSMAP 1243xsv chartplotter. With its high-resolution 12 in-plane switching display, ultrasleek design and vivid sonar color palette, it seamlessly integrates into your Garmin marine system. GPSMAP 1243xsv also features built-in Ultra High-Definition SideV and ClearV scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and Panoptix LiveScope sonar devices. Preloaded BlueChart g3 coastal charts and LakeV g3 inland maps give you the best of Garmin and Navionics data plus Auto Guidance1 technology. Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using HTML 5.0, NMEA 2000 and NMEA 0183 network connectivity, J1939 for engines and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix marine smartwatches, wind transducers, wireless remote controls and more.
Features:
- High-resolution in-plane switching touchscreen displays offer improved sunlight readability and wide-angle visibility over previous-generation 12 units
- Fast and responsive, this robust GPSMAP system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- Preloaded mapping includes LakeV g3 and BlueChart g3 with the best of Garmin and Navionics data plus built-in Auto Guidance1 technology for confidence in helping you get where you need to go
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm feature for connecting to compatible third-party devices, such as EmpirBus digital switching
- Easily build your marine system from compatible sonar and autopilots to compatible radar, cameras and multimedia using NMEA 2000 and NMEA 0183 network connectivity and the Garmin Marine Network
- Use built-in Wi-Fi networking to pair with the free ActiveCaptain app2 for access to OneChart, smart notifications, software updates and more
- Integrated ANT technology support for use with your compatible quatix marine smartwatches, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls
- Built-in Ultra High-Definition SideV and ClearV scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure
- Supports Panoptix and Panoptix LiveScope sonar devices, 1 kW CHIRP traditional sonar and more
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
2 Requires app on your compatible smartphone; see Garmin.com/ble
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Garmin GPSMAP 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with BlueChart® g3 coastal charts and LakeVü g3
Model: 010-02367-03
- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded mapping and coastal charts.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere1.
With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 1243xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance3 technology.
Upgrade to our reliable premium charts2, which add even more unparalleled features, such as high-resolution relief shading, to help you on each trip.
If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications2, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more4.
Connect with some of your favorite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
Specifications
| General |
| PHYSICAL DIMENSIONS |
12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE |
10.3" x 6.4"; 12.1" diagonal |
| DISPLAY RESOLUTION |
1280 x 800 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
6.6 lbs. (3.0 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK PORTS |
2 |
| Maps & Memory |
| PRELOADED MAPS |
BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) |
| ACCEPTS DATA CARDS |
2 microSD cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK COMPATIBLE RADIOS |
Yes |
| GSD BLACK BOX SONAR SUPPORT |
Yes |
| GCV BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| VIDEO OUTPUT PORTS |
1 HDMI |
| J1939 COMPATIBLE |
Yes |
| WIRELESS CONNECTIVITY |
Yes |
What's in the Box:
- GPSMAP 1243xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
