Garmin GMX Fantom 25X Pedestal Only Product Description

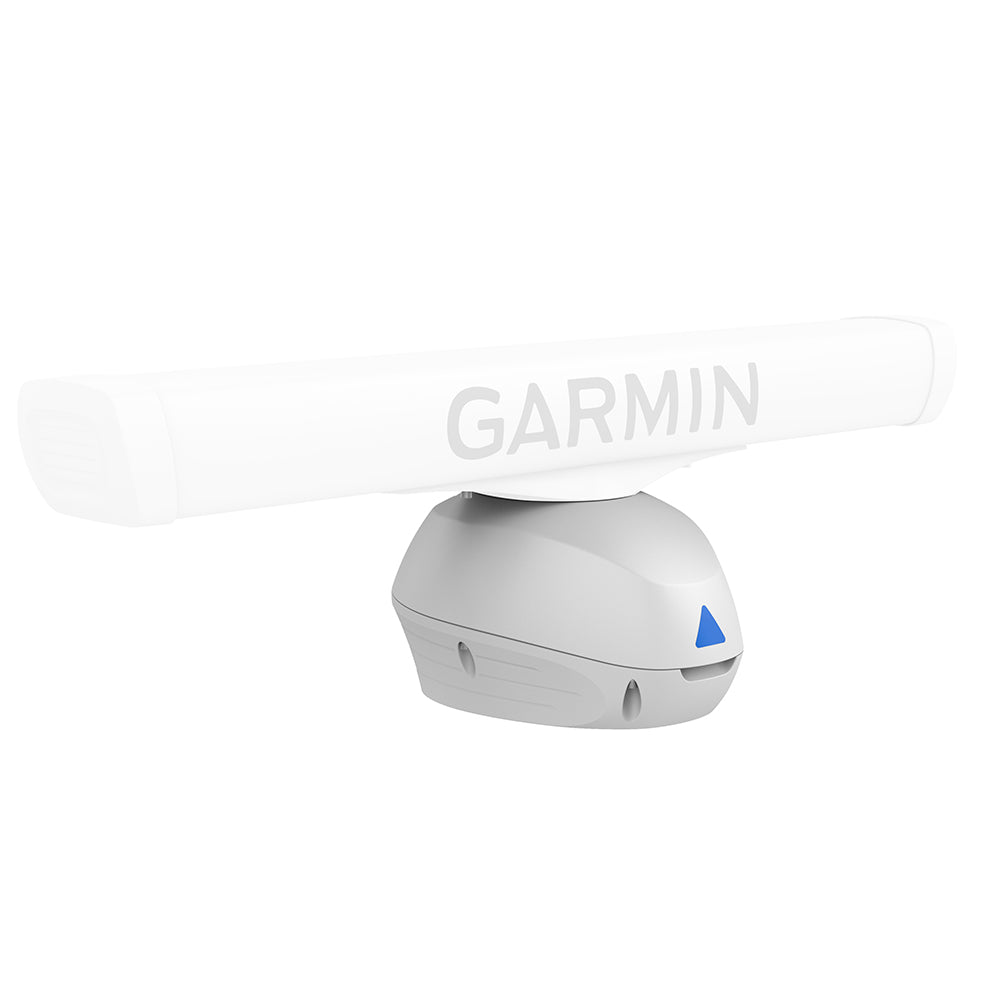

GMX Fantom 25X Pedestal Only
GMR Fantom series radar pedestal includes 15 meter power and network cables. 4' or 6' antenna sold separately.
Pulse Compression technology provides high resolution while maximizing energy in order to enhance detection and identification of targets. You get excellent close- and long-range target detection ranging from as close as 20 feet to 72 nautical miles, even in fog or rain. Its narrow 1.8 degree horizontal beamwidth provides a high-resolution image and high antenna gain so it can pick out weak targets at a distance. The result is this radar paints a clear, concise image of the shoreline, other vessels and impending weather -- right on your Garmin chartplotter.
You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speed of up to 48 rpm provides fast screen updates. The GMR Fantom uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar.
MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather -- or toward fishing spots where birds are feeding at the surface. Pulse Expansion maximizes target size to help differentiate real targets from noise and provides a visually larger sized target on the chartplotter. Fishermen know, when you find birds at the water's surface, you'll also find fish.
To further improve your fishing experience, use Auto Bird Gain, which helps to locate flocks of birds at the water's surface where baitfish are also likely to be found. A fading "trail" is left on the screen to help you quickly and easily identify moving targets and potential collision threats. Trails are corrected for your boat's rotation when an autopilot or heading sensor is connected to your Garmin network. The single radar antenna is capable of providing split screen images on your chartplotter side-by-side, with independent range setting and controls for both close and long range. Provides redundancy and the ability for each display unit on the boat to select data from 1 of 2 different radar sources.
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts gain to changing sea conditions with user options for low, medium or high filtering. Radar overlay overlays the radar image on the chartplotter's map page. An autopilot or heading sensor is recommended for best results. Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions. Use Guard Zone to set the safety zone and receive an alarm when an object enters the zone. Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
Features:
- Low-power Pulse Compression technology
- Antenna Array sold separately
- Works with most Garmin Multi-Function Displays
Garmin GMR Fantom 250 Watt Pedestal and Cable Only No Antenna
Model: 010-01364-30
- 250 W solid-state pedestal
- MotionScope technology detects and highlights moving targets in different colors to help avoid collisions, find flocks of birds and track weather
- Pulse Compression technology provides high-resolution imaging while maximizing energy to enhance target detection and identification
- True echo trails display a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat
- Overlay radar on your chart screen as single display or split screen with independent range settings
- New mini-automatic radar plotting aid (MARPA) Automatic Acquisition allows for triggering and tracking with no user prompting on all returns, boundary zones, guard zones or MotionScope
- Track targets and weather from 20 to 96 nautical miles
- Scan-to-scan averaging aids in reduction of sea clutter and interference
- MARPA tracks up to 30 selected targets, helping you keep track of other vessels and avoid collisions
- Choose from several easy-to-use settings that automatically adjust the gain or target size
- Instant turn on with near silent operation and low power consumption
Featuring 250 W of power, GMR Fantom 250 is their most powerful solid-state radar. It uses MotionScope technology to detect and highlight moving targets in different colors, which helps you avoid potential collisions, find flocks of birds and track weather. It includes Pulse Compression technology that provides high-resolution imaging and maximizes energy to help you detect and identify targets. It has a detection range of 20 to 96 nautical miles.
You get excellent close- and long-range target detection from as close as 20 to 96 nautical miles, even in fog or rain. The narrow horizontal beamwidth provides a high-resolution image, and the high antenna gain picks out weak targets at a distance. This radar paints a clear, concise image of the shoreline, other vessels and impending weather right on your Garmin chartplotter. Get consistent target positions, excellent target separation that helps you distinguish large targets from small ones and adjustable rotation speed for fast screen updates.
GMR Fantom uses the Doppler effect to detect and highlight moving targets to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather or toward fishing spots where birds are feeding at the surface.
A fading "trail" is left on the screen to help you quickly and easily identify moving targets and potential collision threats. Trails are corrected for your boats rotation when an autopilot or heading sensor is connected to your Garmin network.
Where there are birds on the waters surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the waters surface where baitfish are likely to be found.
Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts gain to changing sea conditions with user options for low, medium or high filtering.
You can increase the size of targets on screen to help differentiate from noise, or reduce the size to sharpen shoreline details.
The single radar antenna can display radar images on your chartplotter map page side by side, with independent range settings and controls for both close and long range. One or both ranges can also be viewed as a chart overlay. An autopilot or heading sensor is recommended for best results.
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.
This provides redundancy and the ability for each display unit on the boat to select data from 1 of 2 different radar sources.
Set the safety zone, and receive an alarm when an object enters the zone.
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land. It fits the selected radar range to the vertical size of your display to show more forward-looking radar returns on screen and make it easier to interpret target distances.
All Garmin radars are designed to be easy to install and easy to use. There are no complex user settings to adjust; just install your radar, and start using it. You can rely on the GMR Fantom radar to provide reliable, optimum performance in all conditions.
Specifications
| General |
| Water rating |
IPX6 |
| Antenna length |
Not Included |
| Rotation speed (RPM) |
24 and 48 rpm (High Speed only available in Single Range mode, with MotionScope disabled, and on range settings of 12 NM or lower) |
| Transmit power |
250W of pulse compression power output, the approximate equivalent to a 6kW magnetron |
| Beam width |
NA |
| Maximum range |
96 nm |
| Minimum range |
6 meters |
| Radar Features |
| High definition (outstanding target separation with less screen clutter) |
Yes |
| MARPA target tracking (collision avoidance) |
Yes (Requires Heading Sensor, Sold Separately) |
| Guard zone alarm |
Yes |
| Additional |
| MotionScope |
Yes |
| Auto Bird Gain |
Yes |
| Dual Radar Support |
Yes |
| Echo Trails |
Yes, True |
| Programmable Antenna Parking Position |
Yes |
| Max Wind Speed |
80 kt |
| Input Voltage |
10-32 V |
| Dimensions |
Pedestal: 16.6" x 14.3" x 10.7" |
What's in the Box:
- GMR Fantom 250 watt pedestal antenna and pedestal
- Mounting hardware kit and template
- Right angle power cable (15 meters)
- Right angle network cable (15 meters)
- Documentation
GMR Fantom 254/256 is Garmin's most powerful 4'and 6'solid state radar with a power of 250W. It uses MotionScope technology to detect and highlight moving targets of different colors, thereby helping you avoid potential collisions, spot birds and track the weather. Scan-to-scan averaging is a new feature that helps reduce sea clutter and interference. Its pulse compression technology provides high-resolution imaging and maximizes energy to help you detect and identify targets. Auto Bird Gain can help you identify the birds on the water. The GMR Fantom 254/256 radar has a detection range of 20 to 96 nautical miles. The antenna is sold separately.
Buy with the best price
Garmin GMX Fantom 25X Pedestal Only for only
$10099 from NVN Marine! Same day shipping before 3pm.
Garmin GMX Fantom 25X Pedestal Only Technical Specifications
