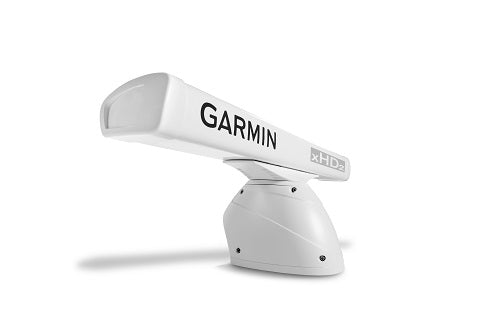

Garmin GMR 2524 xHD2 25kW 4' open array radar
Model: K10-00012-15This is the only 4-foot 25 kW open-array radar that can fully integrate with Garmin chartplotters. It will provide radar data overlay onto your charts when used with autopilot or heading sensor. The GMR 2524 xHD2 has the power to deliver excellent target separation and amazing image clarity. It also features our Auto Bird Gain setting, which helps locate flocks of birds at the waters surface and helps signal the location of game fish. Pulse Expansion setting allows you to maximize energy on targets and increase target size. Dynamic Auto Gain and Sea Filter automatically adjust to your surroundings for optimal performance in all conditions. Dual radar capability allows more than 1 radar running at the same time. Dual range capability shows close and long range at the same time. Range: 96 nautical miles. Easy to install and easy to use thats the power of simple.
Their most powerful 4-foot high-definition radar with 25 kW of power, delivers excellent range, up to 96 nautical miles, even in fog or rain. Its narrow 1.8 degree horizontal beamwidth means it can pick out weaker targets further off in the distance than wider beamwidths. The result is this radar paints a clear, concise image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 96 nautical miles.
This radar is designed to be easy to install and use. There are no complex user settings to fuss around with, just install it and start using. You can rely on the GMR xHD2 to provide reliable, optimum performance in all conditions.
SpecificationsWater rating | IPX6 |
Rotation Speed | 24 and 48 rpm |
Transmit Power | 25kW |
Beam width | 1.8° horizontal, 23° vertical |
Maximum range | 96nm |
Minimum range | 20 meters |
High definition (outstanding target separation with less screen clutter) | yes |
MARPA target tracking (collision avoidance) | Yes (Requires Heading Sensor, Sold Separately) |
Guard zone alarm | Yes |
Color | 8 bit |
Radar overlay support | Yes |
Timed transmit | Yes |
No Transmit zone | Yes |
Auto Gain | Yes |
Sea Filter | Yes |
Auto bird gain | Yes |
Dual radar support | Yes |
Echo trails | Yes |
Input Voltage | 10-32 V |
Input Draw | 100 watts |
Dimensions | 4' array: 52.25"" x 5"" x 6.75"" (132.7 x 12.7 x 17.1 cm) Pedestal: 20.5"" x 12.75"" x 12.5"" (52 x 32.4 x 31.8 cm) |
The Garmin GMR 2524 xHD2 with pedestal is the only 4-foot 25 kW radar that fully integrates with Garmin chartplotters. It provides radar data overlay onto charts, so you can view weather information on the same screen as your navigation data. The GMR 2524 xHD2 also features a powerful 25 kW transmitter, which is 5 times more powerful than most radars on the market.
Type: | |
---|---|
Vendor: |
Garmin |
Weight: |
101.0 lb |
