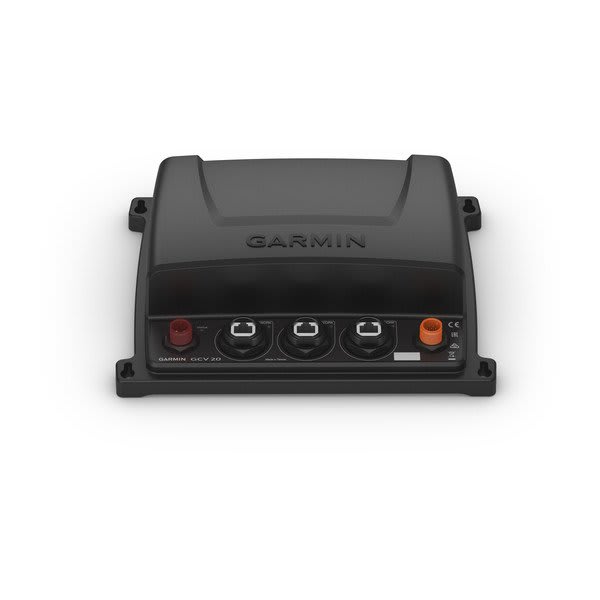

Garmin GCV 20 Ultra HD Scanning Sonar Black Box

No reviews yet

$359.14

SKU:: 010-02055-10
UPC:: 753759206321
Condition:: New
Availability:: In stock

Current Stock:

Quantity:

Request For Quote

5 customers are viewing this product

Garmin GCV 20 Ultra HD Scanning Sonar Black Box

$359.14

Description
Shipping & Returns
Custom Product Tab
FAQ

Description

Garmin GCV 20 Ultra HD Scanning Sonar Black Box Product Description

The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars with frequencies ranging from 0.8 Mega Hertz to 1.2 Mega Hertz to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix all-seeing sonar. It includes a max power output of 500 watts. This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element. This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Garmin 100205510 Attributes

Size: 9.9 Inch Length X 7.6 Inch Width X 2.6 Inch Depth
Frequency: 800 kHz ClearVü/ 1200 kHz SideVü
Input Voltage: 10 To 35 Volt
Temperature Range: 5 Degree Fahrenheit To 158 Degree Fahrenheit Operating Temperature
Waterproof: IPX7 Rating Waterproof
Includes: With Right-Angle Power Cable/ Right-Angle Ethernet Cable/ Mounting Hardware

Garmin 100205510 Features & Benefits

Stunningly Clear Ultra High-Definition ClearVü And Ultra High-Definition SideVü Scanning Sonars
Provides Brilliant Image Clarity Of Structure And Fish Below Your Boat At Greater Depths Than Other High-Frequency Scanning Sonars
Water Rating: IPX7
Easy To Install
Limited 2 Year Warranty

Garmin 100205510 Installation Instructions

Garmin 100205510 Warranties

Garmin 100205510 Technical Bulletins

GCV 20 Ultra HD Scanning Sonar Black Box

Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter
The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonars with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearV Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

General:

Physical dimensions: 9.9"Ã7.6"Ã2.6" (251mm Ã 192mm Ã 66mm)
Weight: 1.86lbs (845g)
Water rating: IPX7
Garmin Marine Network ports: 3
Temperature range: From 5°F to 158°F (from -15°C to 70°C)

Sonar Features & Specifications:

Frequencies supported:

Ultra High-Definition ClearV: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideV: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

Transmit power: 500W rms
Maximum depth:

200' Ultra High-Definition ClearV
125' to each side Ultra High-Definition SideV, 250' total

What's In The Box?:

GCV 20
Right-angle power cable
Right-angle ethernet cable
Mounting hardware
Documentation

Garmin Ultra High-Definition Scanning Sonar System GCV 20 Scanning Sonar Black Box Without Transducer

Model: 010-02055-10

Ultra High-Definition scanning sonar system provides crisp images of structure and fish in stunning detail
Ultra High-Definition ClearVü sonar provides brilliant image clarity of structure and fish up to 200 deep below your boat
Ultra High-Definition SideVü sonar delivers stunningly clear images of structure and fish off to the sides of your boat
Share seamlessly across multiple networked chartplotters as well as networking Panoptix all-seeing sonar

Clarity and detail are redefined with the Ultra High-Definition scanning sonar system. Using an easy-to-install, networkable GCV 20 sonar black box with an included three-array GT34UHD transducer, now you can get scanning sonar images in ultra high-definition. You see everything below and off to the sides of your boat in amazingly sharp, crisp detail.

This sonar system provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

You can share your Ultra High-Definition scanning sonar images seamlessly across multiple networked chartplotters. You can also add optional Panoptix all-seeing sonar to your networked sonars.

Specifications

General
Water rating	IPX7
Garmin Marine Network ports	3
Temperature range	From 5°F to 158°F (from -15°C to 70°C)
Sonar Features & Specifications
Frequencies supported	Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
Transmit power	500 W rms
Maximum depth	200' Ultra High-Definition ClearVü 125' to each side Ultra High-Definition SideVü, 250' total
Dimensions	9.9" 7.6" 2.6" (251 mm 192 mm 66 mm)

What's in the Box:

GCV 20 Sonar Black Box
Right-angle power cable
Right-angle ethernet cable
Mounting hardware
Documentation

Frequently Asked Questions (FAQ) About Garmin GCV 20 Ultra HD Scanning Sonar Black Box

Who is the Garmin?

Garmin is a leader in Global Positioning System (GPS) technology and an innovator in consumer electronics. Garmin serves both the aviation and consumer markets. Garmin's products are used in flying, boating, driving, hiking, and many other activities. Specifically, Garmin aims to enrich the lives of customers, suppliers, distributors, and employees by providing the very best products that offer superior quality, safety, and operational features at affordable prices.

What is the working frequency of the product?

800 kHz ClearVü/ 1200 kHz SideVü

What is the size?

9.9 Inch Length X 7.6 Inch Width X 2.6 Inch Depth

Is this product waterproof?

IPX7 Rating Waterproof

Save $93 when you buy the Garmin GCV 20 Ultra HD Scanning Sonar Black Box for only $326 from NVN Marine! Same day shipping before 3pm.

Garmin GCV 20 Ultra HD Scanning Sonar Black Box Technical Specifications

Type:
Vendor:	Garmin
Weight:	3.6 lb
Categories v2:	Marine Navigation & Instruments \| Network Cables & Modules
Category v1:	FISHFINDERS
UPC:	753759206321
