Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd

No reviews yet Write a Review
$3,629.99
SKU:
010-02688-35
UPC:
753759322748
Condition:
New
Availability:
In stock
5 customers are viewing this product

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd

$3,629.99

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd Product Description

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd

Model: 010-02688-35
  • GET IMPROVED CLARITY, SENSITIVITY AND TARGET SEPARATION
  • SCAN SURROUNDINGS WITH REDUCED NOISE AND FEWER SONAR ARTIFACTS
  • USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL
  • USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH
  • FISH LONGER WITH A 16.5AH LIGHTWEIGHT LITHIUM-ION BATTERY
  • INCLUDES A RUGGED, PORTABLE CARRYING CASE

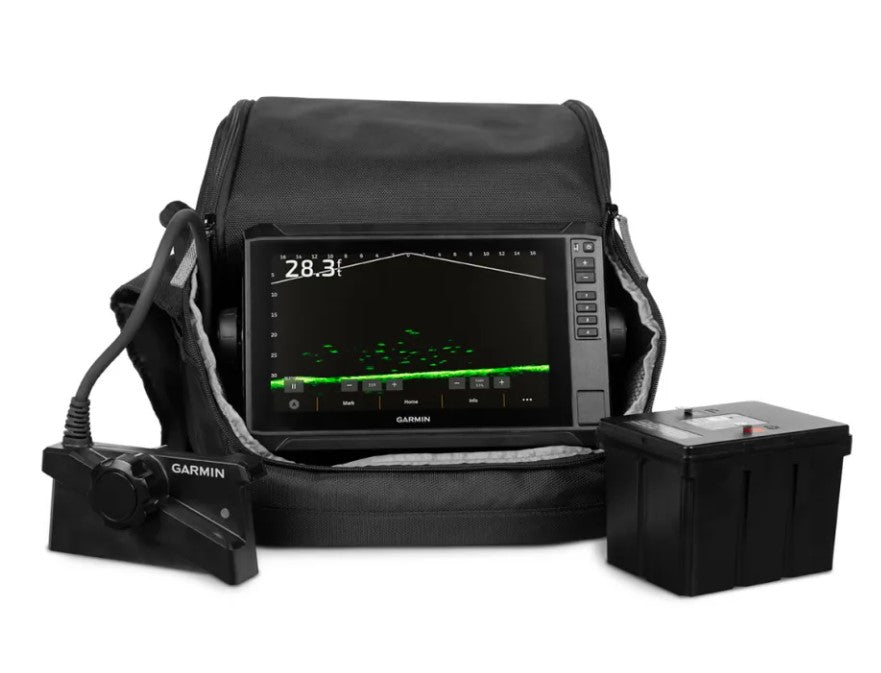

Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.

The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays fle

Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.

Specifications
General
TOUCHSCREEN Yes
INPUT Touchscreen with Keyed Assist
DISPLAY SIZE 7.8"" x 4.5"", 9.0"" (19.8 x 11.5, 22.9 cm)
DISPLAY RESOLUTION 1024 x 600 pixels
DISPLAY TYPE DISPLAY TYPE
WEIGHT 22.5 lbs (10.2 kg)
WATERPROOF IPX7
Maps & Memory
ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
WAYPOINTS 5000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Ice Fishing Details
BATTERY TYPE, SIZE Lithium-ion, 16.5Ah
BAG SIZE Extra Large (XL)
INCLUDED TRANSDUCER LiveScope™ Plus System with LVS34-IF
TRANSDUCER HOLDING FEATURE Pole mount
Sensors
HAS BUILT-IN RECEIVER Yes
RECEIVER 10 Hz
NMEA 2000 COMPATIBLE Yes
GPS Yes
GLONASS Yes
GALILEO Yes
BEIDOU Yes
SUPPORTS WAAS Yes
SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes
Sonar Features & Specifications
DISPLAYS SONAR Yes
POWER OUTPUT 500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVU built-in 260/455/800/1000/1200 kHz
SIDEVU built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR Yes
LIVESCOPE Yes
Connections
NMEA 2000® PORTS Yes
GARMIN MARINE NETWORK PORTS 1
12-PIN TRANSDUCER PORTS 1
BLUETOOTH® PAIRING Yes
ANT+ (CONNECTIVITY) Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes
Input Voltage 9 to 18 Vdc
Dimensions 13.8"" 12.2"" 13.0"" (35 31 33 cm)

What's in the Box:
  • ECHOMAP™ UHD2 chartplotter
  • LVS34-IF transducer
  • GLS™ 10 sonar module
  • Ice fishing pole mount
  • Tilt mount
  • Power cable
  • Portable fishing bag with handle
  • Lithium-ion battery
  • Battery charger
  • Documentation




  • Buy with the best price Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd for only $3299 from Anchor Sailor! Same day free shipping before 3pm.

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd Technical Specifications

Type:

Vendor:

Garmin

Weight:

28.7 lb
