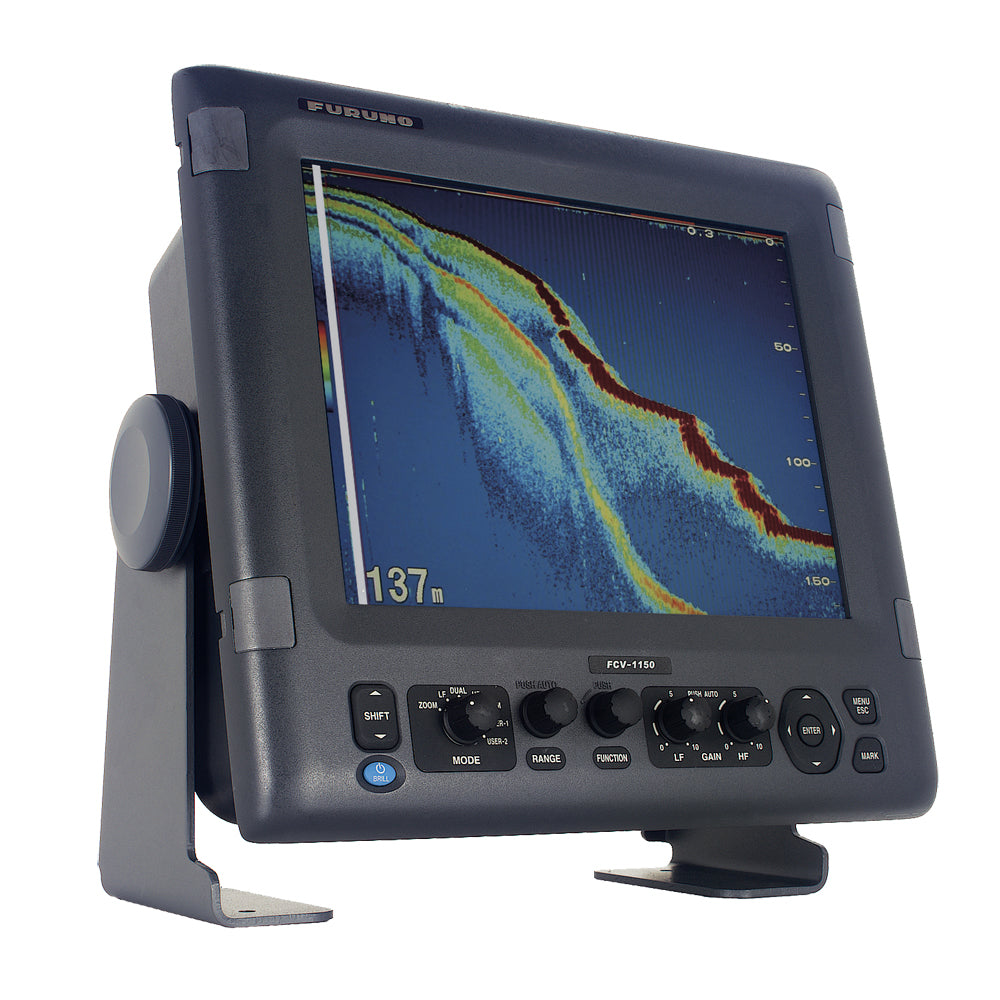

Furuno FCV1150 12.1" Color Fishfinder Product Description
FCV1150 12.1" Color FishfinderThe FCV1150 is a color digital sounder designed for a variety of professional fishing operations. It's high-brightness 12.1" color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.
The FCV1150 employs Furuno Free Synthesizer (FFS) technology which permits a wide selection of operating frequencies from 28 to 200kHz. If a Furuno transducer is used, operating frequency is automatically set in the menu, and can be shifted manually at any time. This feature is useful for vessels targeting many different species of fish, and may also be used to eliminate interference that may be caused by nearby ships with transducers operating at the same frequency. Output power is selectable among 1,2 or 3 kW.
A wide variety of display modes and functions are available that provide captains with simple and intuitive information for virtually any fishing requirement including Single (HF/LF), Dual, Single + Zoom, Zoom (Bottom Lock, Bottom Zoom or Marker Zoom), Mix Mode, Nav Data and A-Scope. Additionally, two custom display modes may be programmed by the operator. The FCV1150 can be interfaced with a Furuno Satellite Compass to compensate for heaving caused by the movement of the ocean, providing unwavering, stable detection even in rough seas.
Faster Transmission Rate: The rate of transmission has been greatly increased by more than 30% compared with current conventional fish finders. As a result, more detailed information about underwater conditions can be gained in the same sounding interval. The FCV1150 also incorporates new transmission technique that automatically switches the echo transmission rate according to the depth of the sounding area. Transmission speed is raised in shallow waters and lowered in deep waters, providing more detailed detection of seabed and targets.
Quick Gain Setting: The Gain setting for all of the echoes on the screen can be adjusted by rotating the Gain knob. Because all of the visible echoes on the screen are adjusted with the Gain settings, the correct setting for virtually any situation can be quickly and easily determined.
White Edge: The top of the seabed is displayed in white to show seabed structure. This function also helps to discriminate between bottom fish and seabed.
Standard Features:
- High-brightness 12.1" LCD with AR coated glass filter and anti-polarized sunglass filter
- Postprocessing Gain Control applied to all echoes displayed on the screen
- White Edge bottom discrimination feature
- Heaving compensation available for stable echo presentation even in rough seas
- Furuno Digital Filter (FDF) delivers crystal clear target presentation
- Adjustable operating frequency and selectable output power
Power Requirements:
- 12-24 VDC, 50W max
- 100/110/220/230 VAC with optional rectifier
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. The ultimate fish hunting technique! Fununo FCV1150 is a serious echo sounder designed for serious fishermen. After pairing it with the Furuno sensor, FCV1150 will automatically set the frequency for you. Manual priority control can be used, which is very useful for identifying different types of fish and eliminating interference from other nearby ships. The output power can be selected between 1, 2 or 3 kW. FCV1150 provides a variety of display modes and functions, which can provide simple and intuitive information for almost any fishing requirement, including single frequency or dual frequency, single frequency double zoom, zoom (bottom lock, bottom zoom or marker zoom) or navigation data (( When connected) to GPS) and A-Scope. You can also set two custom display modes. FCV1150 can interface with Furuno satellite compass to compensate for the ups and downs caused by ocean motion, and provide stable detection even in rough seas. All of this can be easily viewed on an excellent high-brightness 12.1-inch SVGA color LCD with 8, 16, or 64 colors and wide viewing angles. The display is equipped with a glass filter with an anti-reflective coating, which will not dazzle the eyes even in direct sunlight.
Frequently Asked Questions (FAQ) About Furuno FCV1150 12.1" Color Fishfinder
Who is the Furuno?
Furuno is a world-renowned manufacturer and leader of marine electronics that produces an abundance of products. With a large selection of high-end, commercial grade sonar to the compact Black Box sonar, Furuno has one to fit almost any vessel. When it comes to communications, top performance and total reliability are necessities. That's why Furuno radio equipment is tough and dependable.
How to describe Furuno FCV1150 12.1" Color Fishfinder?
The ultimate fish hunting technique! Fununo FCV1150 is a serious echo sounder designed for serious fishermen. After pairing it with the
Furuno sensor, FCV1150 will automatically set the frequency for you. Manual priority control can be used, which is very useful for identifying different types of fish and eliminating interference from other nearby ships. The output power can be selected between 1, 2 or 3 kW. FCV1150 provides a variety of display modes and functions, which can provide simple and intuitive information for almost any fishing requirement, including single frequency or dual frequency, single frequency double zoom, zoom (bottom lock, bottom zoom or marker zoom) or navigation data (( When connected) to GPS) and A-Scope. You can also set two custom display modes. FCV1150 can interface with
Furuno satellite compass to compensate for the ups and downs caused by ocean motion, and provide stable detection even in rough seas. All of this can be easily viewed on an excellent high-brightness 12.1-inch SVGA color LCD with 8, 16, or 64 colors and wide viewing angles. The display is equipped with a glass filter with an anti-reflective coating, which will not dazzle the eyes even in direct sunlight.
- The FCV1150 is a color digital sounder designed for a variety of professional fishing operations.
- Its high-brightness 12.1" color LCD with AR coated glass filter provides superior, glare-free viewing even in bright sunlight or at night.
- With it's intuitive interface, you can easily switch between display modes to get the most accurate readings for the fishing environment you're in.
- A color digital sounder with a 12.1" LCD display.
- The AR coated glass filter is glare-free and provides superior viewing even in harsh sunlight.
- Its high brightness provides better visibility in dark waters, and its large screen size makes it easy to spot fish even at long distances.
The FCV1150 is a color digital sounder designed for a variety of professional fishing operations. It's high-brightness 12.1" color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight. The FCV1150 employs advanced sounder processing technology that provides the clearest and most accurate sonar images available on the market today, and includes a built-in GPS for precise navigation and
What is the screen size of the product?
12.1"
- The FCV1150 is a color digital sounder designed for a variety of professional fishing operations.
- Its high-brightness 12.1" color LCD with AR coated glass filter provides superior, glare-free viewing even in bright sunlight or at night.
- With it's intuitive interface, you can easily switch between display modes to get the most accurate readings for the fishing environment you're in.
- A color digital sounder with a 12.1" LCD display.
- The AR coated glass filter is glare-free and provides superior viewing even in harsh sunlight.
- Its high brightness provides better visibility in dark waters, and its large screen size makes it easy to spot fish even at long distances.
- The FCV1150 is a color digital sounder designed for a variety of professional fishing operations.
- It's high-brightness 12.1" color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.
- The FCV1150 employs a high performance 5Hz GPS antenna and the latest Broadband Sounder Technology for accurate bottom mapping and fish finding capabilities.
- The FCV1150 is a color digital sounder designed for a variety of professional fishing operations. It?s high-brightness 12.1? color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.
- The FCV1150 employs a high-sensitivity GPS receiver, advanced sonar processing and an advanced digital signal processing system for the most accurate and reliable readings possible.
- The FCV1150 is a color digital sounder designed for a variety of professional fishing operations. It's high
Which transducer included to the product?
What is the transducer type of the product?
Buy with the best price
Furuno FCV1150 12.1" Color Fishfinder for only
$4895 from NVN Marine! Same day fast and free shipping before 3pm.
Furuno FCV1150 12.1" Color Fishfinder Technical Specifications
| Type: |
|
| Vendor: |
Furuno
|
| Weight: |
28.0 lb
|
| Screen Size: |
12.1"
|
| Transducer Type: |
Not Included
|
| Included Transducer: |
No
|
| User Guide: |
|
| Product Manual: |
|
| Product Brochure: |
|
| Product Installation: |
|
