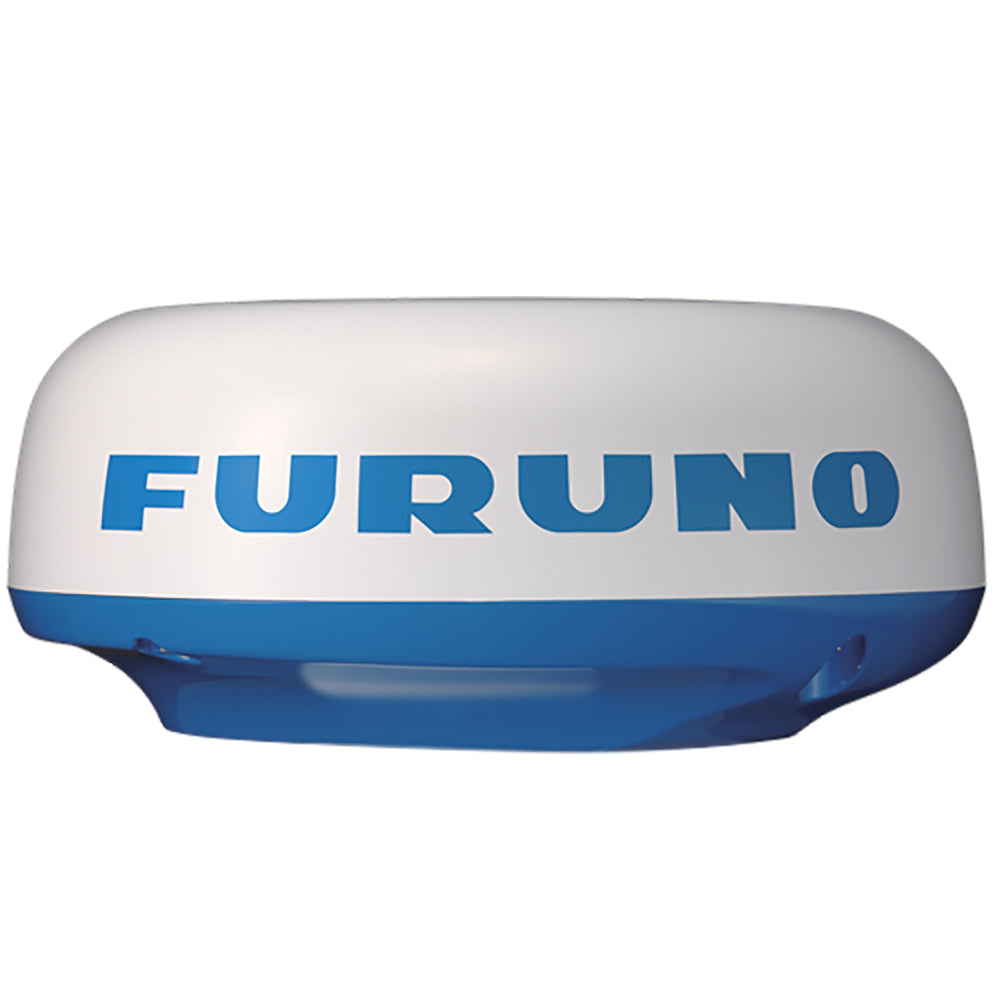

The DRS4DL+ is a 19 Inch dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4 Kilowatt Radar is presented in a compact, rugged 19 Inch dome with a 5.2 Degree horizontal beam width antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
DRS4DL+ Radar Dome, 4kw, 19" 36NM
The DRS4DL+ is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.
Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.
*heading sensor required
Features:
The Furuno DRS4DL+ is a 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. The DRS4DL+ provides a perfect balance between performance and price in a compact, rugged design that is well suited for any vessel's needs.
Type: | |
---|---|
Vendor: |
Furuno |
Weight: |
26.4 lb |
Array Size (Inches): |
19" |
Power - Output: |
12/24v |
Range - Max (Miles): |
36nm |
