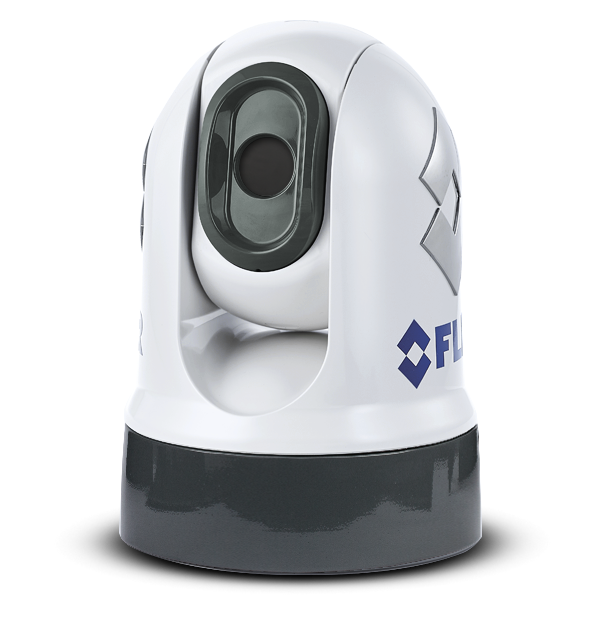

FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera Product Description
The M232 is the most affordable FLIR pan/tilt marine thermal imaging system. The 320 × 240 resolution thermal sensor, combined with a 24 Degree of view lens is well suited for navigation and close-range detection of small vessels, markers, or obstructions. There are several options for controlling the camera, features select maritime electronic manufacturers, joystick control units, connecting to existing FLIR JCUs, or via web application on supported devices. The system is future-ready with IP connectivity and control but can be adapted to support existing monitors with an analog video converter and a joystick control unit kit.
FLIR Systems E70354 Attributes
-
Type: Pan And Tilt
-
Detection Range (FT): Up To 1500 Feet
-
Display Type: No Display
-
Resolution: 320 x 240
-
Operating Temperature (Deg F): -13 To 131 Degree Fahrenheit
-
Horizontal Viewing Angle: 24 Degree
-
Vertical Viewing Angle: 18 Degree
-
Used To: Detect Objects In Darkness/ Fog/ Glare
-
Color: White
-
Weatherproof: Yes
-
With Remote Control: No
-
With Mounting Hardware: Yes
FLIR Systems E70354 Features & Benefits
- Pan Or Tilt
- 320 × 240 Thermal Resolution
- Digital Zoom
- Small, Lightweight Design
- IP Video Or Optional Analog Connectivity
- Intelligent ClearCruise Analytics With Axiom Display
- Limited 2 Year Warranty
M232 Pan/Tilt 9Hz Marine Thermal Camera
The FLIR M232 marine thermal camera is the smallest and most affordable pan and tilt marine thermal night vision camera. Using the latest generation Boson(TM) thermal core, the M232 lets boaters see at night in 320 x 240 thermal resolution and also features 2x digital zoom. When the M232 is combined with a Raymarine Axiom MFD, FLIRs ClearCruise intelligent thermal analytics technology offer boaters an entirely new level of awareness and safety. The M232 also uses IP video technology and simplifies installation by eliminating extra video signal cables. The M232 offers features 2X digital zoom capability.
Make Navigation Safer
The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M232 also helps boaters find people in the water faster than using spotlights and radar alone.
Long-Range, Optimized Viewing
M232 features full 320x240 resolution for optimal horizon-to-horizon viewing, and 2X digital zoom for long-range performance.
Easy to Install on any Vessel
The combination of the M232s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.
Enhanced Awareness with ClearCruise
Combine M232 with a Raymarine Axiom MFD and take advantage of ClearCruise intelligent thermal analytics. ClearCruise provides audible and visual alerts when non-water objects such as boats, obstacles, or navigation markers are identified in the scene.
Specifications:
- Detector Type: 320 × 240 VOx Microbolometer
- Video Refresh Rate: 9 Hz
- Field of View: 24° × 18°
- E-Zoom: 2x
- Image Processing: FLIR Proprietary Digital Detail Enhancement
- Thermal Resolution: 320 x 240 resolution for clear, detailed images
- Ethernet-Enabled: For simple integration with your other electronics
- Zoom: 2x e-Zoom for extended range performance
- Pan & Tilt: M232 with adjustable pan and tilt
System Specifications:
- Pan/Tilt Range Pan: 360deg (continuos), Tilt: +110°, -90°
- Image Processing: FLIR Propriety Digital Detail Enhancement
- Video Output: H264 IP Video stream
- Power Requirements: 12 or 24 VDC
- Power Consumption: 15W (typical) 18W (max)
Whats In the Box:
Every M132 and M232 thermal camera includes:
- Camera unit
- Top down riser kit
- Thermal camera base-seal
- Right-angled RayNet to RayNet cable, 32 feet (10 meters)
- RayNet to RJ45 adapter cable, 4-inches (100mm)
- Right-angled 3-pin power cable, 32 feet (10 meters)
- Stainless steel mounting hardware kit
*Notes: JCU3 joystick controller and IP to analog video decoder sold separately.
When the M132/232 cameras are set for either Ball Down or Mirror Image configurations, the Clear Cruise feature is unavailable. This is due to the nature of the algorithm that supports this function and its relationship to the orientation of the horizon. At this time, there is no scheduled date on which this will be remedied.
M232 pan/tilt 9Hz thermal imaging camera M232 pan/tilt 9Hz thermal imaging camera FLIRââ¬â¢s M232 marine thermal imaging camera night vision camera has a high endurance and is easy to integrate to a whole new level. M232 is a full-featured thermal imager, installed in the smallest and lightest pan-tilt ever. It is a plug-and-play function of multi-function displays from leading manufacturers such as Raymarine, Furuno, Garmin, and Simrad, which can easily achieve plug-and-play. With standard video on IP, you can enjoy incredibly clear and detailed images on MFD with a high resolution of up to 720P. M232 provides powerful thermal imaging function for each boat. It allows you to see more and see farther day or night. Use it to view bridges, docks, buoys and navigation aids and debris in the water, thereby improving navigation and safety. Thermal imaging is also the best tool for finding people in the water. Its complete 320x240 pixel resolution can provide the best details, and its pan and tilt system can provide horizontal to horizontal viewing. The camera even has a 2x digital zoom to achieve longer distance shooting.
Frequently Asked Questions (FAQ) About FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera
Who is the FLIR Systems?
FLIR Systems, Inc. is the global leader in Infrared cameras, night vision and thermal imaging systems. Our products play pivotal roles in a wide range of industrial, commercial and government activities in more than 60 countries. FLIR offers the widest selection of infrared cameras for beginners to pros.
How to describe FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera?
M232 pan/tilt 9Hz thermal imaging camera M232 pan/tilt 9Hz thermal imaging camera FLIRââ¬â¢s M232 marine thermal imaging camera night vision camera has a high endurance and is easy to integrate to a whole new level. M232 is a full-featured thermal imager, installed in the smallest and lightest pan-tilt ever. It is a plug-and-play function of multi-function displays from leading manufacturers such as Raymarine, Furuno, Garmin, and Simrad, which can easily achieve plug-and-play. With standard video on IP, you can enjoy incredibly clear and detailed images on MFD with a high resolution of up to 720P. M232 provides powerful thermal imaging function for each boat. It allows you to see more and see farther day or night. Use it to view bridges, docks, buoys and navigation aids and debris in the water, thereby improving navigation and safety. Thermal imaging is also the best tool for finding people in the water. Its complete 320x240 pixel resolution can provide the best details, and its pan and tilt system can provide horizontal to horizontal viewing. The camera even has a 2x digital zoom to achieve longer distance shooting.
- The M232 is the smallest and most affordable pan and tilt marine thermal night vision camera.
- Boaters can see at night with the latest generation Boson(TM) thermal core, while still maintaining a low price point.
- The M232 is perfect for fishing, sailing, or any other marine activity.
- The FLIR M232 marine thermal camera is the smallest and most affordable pan and tilt marine thermal night vision camera.
- Using the latest generation Boson(TM) thermal core, the M232 lets boaters see at night.
- It's also perfect for home security, car repairs, and a host of other uses.
FLIR M232 is a thermal IP camera that lets you see the world in a whole new way. The FLIR M232 Thermal IP Camera provides 320x240 resolution, 9Hz panning and tilting, and electronic zoom. With its built-in Ethernet port, it's easy to integrate into your existing system.
What is the type of the product?
Pan And Tilt
- The M232 is the smallest and most affordable pan and tilt marine thermal night vision camera.
- Boaters can see at night with the latest generation Boson(TM) thermal core, while still maintaining a low price point.
- The M232 is perfect for fishing, sailing, or any other marine activity.
- The FLIR M232 marine thermal camera is the smallest and most affordable pan and tilt marine thermal night vision camera.
- Using the latest generation Boson(TM) thermal core, the M232 lets boaters see at night.
- It's also perfect for home security, car repairs, and a host of other uses.
- Check out the latest in thermal imaging technology.
- Get crisp, clear images of your subject with the 320 x 240 resolution.
- Use the pan, tilt and zoom features to get a closer look at what you need to see.
- The Ethernet enabled camera is great for integration with other electronics like computers and security systems.
- Designed for surveillance, this camera is perfect for keeping an eye on your property.
- The thermal sensor allows you to see in total darkness and through smoke, fog or haze.
- The built-in pan, tilt and zoom features let you get the perfect view of what's happening.
What is the resolution of the product?
What is the weight of the product?
What's the color of FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera?
What is the display type of the product?
Buy with the best price
FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera for only
$2795 from NVN Marine! Same day fast and free shipping before 3pm.
FLIR M232 Pan/Tilt 9Hz Marine Thermal Camera Technical Specifications
| Type: |
|
| Vendor: |
FLIR Systems
|
| Weight: |
13.8 lb
|
