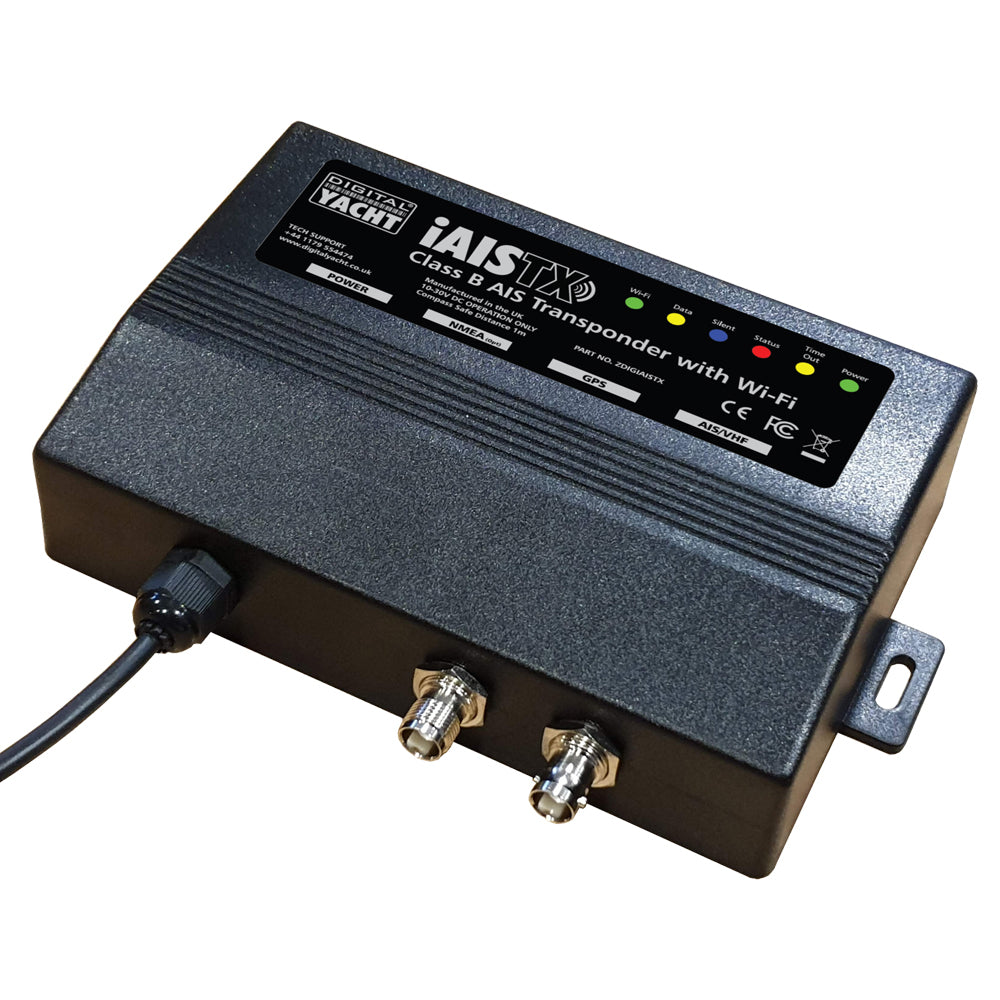

Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder Product Description
There are a growing number of boaters that use an iPad or Android tablet for their navigation tasks and thus the iAISTX Plus was designed specifically for their needs.
This full function Class B AIS transponder with wireless interface and NMEA 2000, is able to send your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This allows popular apps to display received data from other AIS equipped vessels. This PLUS model with an NMEA 2000 interface (with integral drop cable) can integrate with modern plotters, instruments and multi-function displays to therefore provide AIS functionality. iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more.
These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach). The tabletâs browser (Safari, Chrome, etc.) provides a simple, embedded web interface for one time programming of the boatâs identity and physical dimensions, required of all AIS transponders.
Silencing the transmission and setting up wireless parameters such as passwords can also be done via this web interface. Installation is simple â just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boatâs existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.
iAISTX Plus Class B Wireless & NMEA 2000 Transponder
iAISTX Plus has been designed specifically for the growing number of boaters who use an iPad or Android tablet for their navigation tasks. As a full function Class B transponder, it sends your boat position and identity data to other AIS equipped vessels as well as providing a wireless interface for mobile devices with popular apps to display received data from other AIS equipped vessels.
This PLUS model also has a NMEA 2000 interface (with integral drop cable) so that it can integrate with modern plotters, instruments and multi-function displays to provide AIS functionality.
iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach).
AIS transponders require one time programming with the boats identity and physical dimensions and this is done through a simple, embedded web interface via the tablets browser (Safari, Chrome, etc.). This can also be used to silence the transmission and set up wireless parameters such as passwords. Installation is simple just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boats existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.
Features:
- Class B AIS transponder with a wireless interface for phones, tablets, iPads and PCs
- NMEA 2000 interface for plotter and multi function display AIS compatability
- Support for all the latest target types such as ATONs and AIS MOB devices
- Latest HF AIS technology for superior performance
- UDP and TCP/IP protocols supported for up to 7 connected devices
- Password protected, secure wireless connection
- Internal wifi antenna will typically footprint a boat up to 60ft in length
- Supplied with external GPS antenna and 10m (33ft) cable which can be deck mounted or fitted to standard 1 mount
- Compatible with 100s apps. See our reviews at www.digitalyacht.net
- LED status indicators for wireless connection, data, status, time out, power and silent mode
- Easy embedded web interface for programming
- Measures just 20 x 14 x 4.5cm
- 12/24V operation and ultra-low 2W consumption
This nautical iAISTX plus b-class wireless and NMEA 2000 transponder is very practical, practical and convenient, and can complete your main and auxiliary basic marine accessories and tools. This is an ideal gift for outdoor lovers. Designed according to your needs, this excellent accessory can become your best ally, and enjoy a fun and exciting outdoor experience anytime, anywhere! Features: practical and necessary marine accessories. A practical and valuable gift for outdoor lovers. Recommended outdoor size: 3" H x 8" W x 12" D Material: Metal
Frequently Asked Questions (FAQ) About Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder
Who is the Digital Yacht?
Digital Yacht are leaders in innovation in the supply of marine PC systems for both sail and power, from 30ft up to superyacht. The range of compact computers are compatible with the latest PC software and the flexible architecture means they can be easily configured to suit your exact needs. For larger applications Digital Yacht offers a range of 42in rack-mounted systems that can be custom built to run even the most complex systems.
How to describe Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder?
There are a growing number of boaters that use an iPad or Android tablet for their navigation tasks and thus the iAISTX Plus was designed specifically for their needs.
This full function Class B AIS transponder with wireless interface and NMEA 2000, is able to send your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This allows popular apps to display received data from other AIS equipped vessels. This PLUS model with an NMEA 2000 interface (with integral drop cable) can integrate with modern plotters, instruments and multi-function displays to therefore provide AIS functionality. iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more.
These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach). The tabletâs browser (Safari, Chrome, etc.) provides a simple, embedded web interface for one time programming of the boatâs identity and physical dimensions, required of all AIS transponders.
Silencing the transmission and setting up wireless parameters such as passwords can also be done via this web interface. Installation is simple â just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boatâs existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.
- Compatible with your iPad or Android tablet
- Supports Class B AIS data transmissions
- Compatible with NMEA 2000
- Class B transponder for use with an iPad or Android tablet
- Transmits your boat's position, speed, heading and depth wirelessly to your device
- Allows you to easily monitor and control your boat from anywhere on the vessel
The Digital Yacht iAISTX Plus Class B AIS Transponder with wireless interface and NMEA 2000 Model: ZDIGIAISTXPLClass B AIS transponder with wireless interface and NMEA 2000 is the perfect solution for a boat owner who wants to be able to see all the other boats in their vicinity. This state-of-the-art device has an integrated wireless interface that allows it
What is the manufacturer notes about Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder?
There are a growing number of boaters that use an iPad or Android tablet for their navigation tasks and thus the iAISTX Plus was designed specifically for their needs.
This full function Class B AIS transponder with wireless interface and NMEA 2000, is able to send your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This allows popular apps to display received data from other AIS equipped vessels. This PLUS model with an NMEA 2000 interface (with integral drop cable) can integrate with modern plotters, instruments and multi-function displays to therefore provide AIS functionality. iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more.
These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach). The tabletâs browser (Safari, Chrome, etc.) provides a simple, embedded web interface for one time programming of the boatâs identity and physical dimensions, required of all AIS transponders.
Silencing the transmission and setting up wireless parameters such as passwords can also be done via this web interface. Installation is simple â just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boatâs existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.
- Compatible with your iPad or Android tablet
- Supports Class B AIS data transmissions
- Compatible with NMEA 2000
- Class B transponder for use with an iPad or Android tablet
- Transmits your boat's position, speed, heading and depth wirelessly to your device
- Allows you to easily monitor and control your boat from anywhere on the vessel
- Wireless interface and NMEA 2000 network protocol
- AIS compatability with plotters and multi function displays
- The Digital Yacht IAISTX Plus Class B AIS Transponder with wireless interface and NMEA 2000 Model: ZDIGIAISTXPLClass B AIS transponder with wireless interface and NMEA 2000 NMEA 2000 interface for plotter and multi function display AIS compatability allows for a seamless integration of your vessel's position into the navigation system.
- It is an excellent choice if you are looking to upgrade from a traditional Class A or Class B transponder, or if you are looking to add an integrated
Save
$228 when you buy the
Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder for only
$670 from NVN Marine! Same day shipping before 3pm.
Digital Yacht iAISTX Plus Class B Wireless & NMEA 2000 Transponder Technical Specifications
| Type: |
|
| Vendor: |
Digital Yacht
|
| Weight: |
2.85 lb
|
