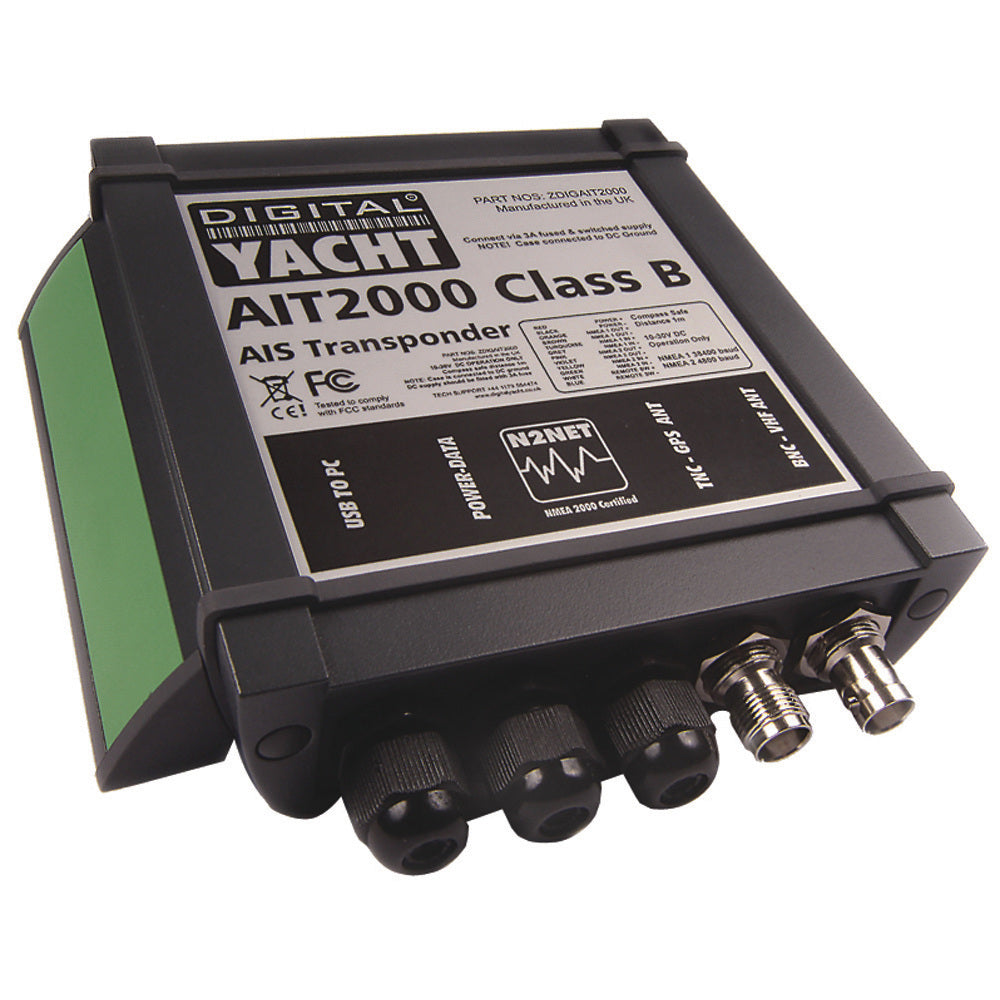

Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee Product Description
The AIT2000 is an AIS transponder class B. It uses the latest AIS Transponder technology. Therefore squeezing more performance and interfacing options in to a housing that is half the size of our previous generation transponder.
This ultra-compact Class B Transponder has three outputs; NMEA 0183, NMEA 2000 and USB connection, therefore allowing it to work with every AIS compatible chart plotter or software package on the market today. The AIT2000 features a remote silence button option, two NMEA 0183 Inputs and Outputs, four status LEDs and rugged vibration-proof mounting brackets. The AIT2000 is the third generation of Digital Yacht AIS transponder and replaces the very popular AIT1000.
For permanent USB connection to a PC or MAC, we recommend adding one of our NMEA to USB Adaptor cables. Hence providing an extra level of electrical isolation/protection against ground differences and static discharge.
Configuration of your vessels fixed data, such as MMSI, call sign, boat name, dimensions etc. is made easy with the included Windows and Mac compatible proAIS2 software*. Once configured, the unit will provide AIS data to a PC or Mac running suitable navigation software or a dedicated chart plotter, such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units.
As well as transmitting your own vessels position so that other AIS equipped vessels know where you are, the AIT2000, when connected to an existing VHF antenna (via a splitter) or dedicated AIS antenna, will receive all AIS targets within range of your boat typically up to 30NM
With two industry standard NMEA 0183 outputs, our own N2Net connector for plugging in to an NMEA 2000 network and a simple plug and play USB connection to a PC, the AIT2000 is therefore the perfect AIS transponder solution for all light marine vessels up to 300 tons.
For optimum AIS performance on sailing yachts, we also recommend the SPL2000 Splitter featuring Zero Loss technology which allows you to use your boats existing VHF antenna at the top of the mast for maximum range.
* Except US where dealer programming required
AIT2000 Class B
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form. **
.
The AIT2000 uses the latest AIS Transponder technology to squeeze more performance and interfacing options in to a housing that is half the size of our previous generation transponder.
This ultra-compact Class B Transponder has three outputs; NMEA 0183, NMEA 2000 and USB connection, allowing it to work with every AIS compatible chart plotter or software package on the market today. Featuring a remote silence button option, two NMEA 0183 Inputs and Outputs, four status LEDs and rugged vibration-proof mounting brackets, the AIT2000 is the third generation of Digital Yacht AIS transponder and replaces the very popular AIT1000.
Configuration of your vessel's fixed data, such as MMSI, call sign, boat name, dimensions etc. is made easy with the included Windows and Mac compatible proAIS2 software. Once configured, the unit will provide AIS data to a PC or Mac running suitable navigation software or a dedicated chart plotter, such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units.
As well as transmitting your own vessel's position so that other AIS equipped vessels know where you are, the AIT2000, when connected to an existing VHF antenna (via a splitter) or dedicated AIS antenna, will receive all AIS targets within range of your boat - typically up to 30NM.
With two industry standard NMEA 0183 outputs, our own N2Net connector for plugging in to an NMEA 2000 network and a simple plug and play USB connection to a PC, the AIT2000 is the perfect AIS transponder solution for all light marine vessels up to 300 tons.
Features:
- Latest generation AIS technology - featuring a brand new AIS transponder (Class B) design
- Ideal for use with existing plotter and radar systems
- Built-in high performance 50 channel GPS receiver (ideal also as a backup GPS)
- USB Interface for simple plug and play connection to a PC or Mac
- Includes N2Net interface and cable for connection to NMEA 2000 network
- High speed NMEA output (38,400 baud) - compatible with industry standard plotters
- Comes complete with GPS antenna with integral 1"x14TPI thread monut
- Requires VHF antenna or dedicated AIS antenna (available as optional accessory) or splitter (SPL250)
- Remote Silence Switch option
- Easy to install black box solution
NOTE - AIS target range, like VHF range is dependent upon a number of installation factors such as; antenna gain, antenna height and size of ground plane. Ranges in excess of 20 miles should be possible if all of these factors are perfect.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Digital Yacht·GPS·Outdoor·VHF·Navigation·Digital, with GPS sensor. A dedicated VHF antenna that is 50% smaller than Ait1000 is required. With Nmea 0183, NMEA2000 input and USB output functions, as well as PC programming software and SmarterTrack lite. With 12v and 24v functions, the power consumption is only 5w.
Frequently Asked Questions (FAQ) About Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee
Who is the Digital Yacht?
Digital Yacht are leaders in innovation in the supply of marine PC systems for both sail and power, from 30ft up to superyacht. The range of compact computers are compatible with the latest PC software and the flexible architecture means they can be easily configured to suit your exact needs. For larger applications Digital Yacht offers a range of 42in rack-mounted systems that can be custom built to run even the most complex systems.
How to describe Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee?
The AIT2000 is an AIS transponder class B. It uses the latest AIS Transponder technology. Therefore squeezing more performance and interfacing options in to a housing that is half the size of our previous generation transponder.
This ultra-compact Class B Transponder has three outputs; NMEA 0183, NMEA 2000 and USB connection, therefore allowing it to work with every AIS compatible chart plotter or software package on the market today. The AIT2000 features a remote silence button option, two NMEA 0183 Inputs and Outputs, four status LEDs and rugged vibration-proof mounting brackets. The AIT2000 is the third generation of Digital Yacht AIS transponder and replaces the very popular AIT1000.
For permanent USB connection to a PC or MAC, we recommend adding one of our NMEA to USB Adaptor cables. Hence providing an extra level of electrical isolation/protection against ground differences and static discharge.
Configuration of your vessels fixed data, such as MMSI, call sign, boat name, dimensions etc. is made easy with the included Windows and Mac compatible proAIS2 software*. Once configured, the unit will provide AIS data to a PC or Mac running suitable navigation software or a dedicated chart plotter, such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units.
As well as transmitting your own vessels position so that other AIS equipped vessels know where you are, the AIT2000, when connected to an existing VHF antenna (via a splitter) or dedicated AIS antenna, will receive all AIS targets within range of your boat typically up to 30NM
With two industry standard NMEA 0183 outputs, our own N2Net connector for plugging in to an NMEA 2000 network and a simple plug and play USB connection to a PC, the AIT2000 is therefore the perfect AIS transponder solution for all light marine vessels up to 300 tons.
For optimum AIS performance on sailing yachts, we also recommend the SPL2000 Splitter featuring Zero Loss technology which allows you to use your boats existing VHF antenna at the top of the mast for maximum range.
* Except US where dealer programming required
What's the class of Automatic Identification System (AIS)?
What's the Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee package dimensions and weight?
9 (w) X 4 (h) X 13 (l) inches and the weight is: 3.75 lb.
Display included with the product?
Antenna is included with the product?
Is this product receive only or receive / transmit?
GPS included to this product?
What is the manufacturer notes about Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee?
The AIT2000 is an AIS transponder class B. It uses the latest AIS Transponder technology. Therefore squeezing more performance and interfacing options in to a housing that is half the size of our previous generation transponder.
This ultra-compact Class B Transponder has three outputs; NMEA 0183, NMEA 2000 and USB connection, therefore allowing it to work with every AIS compatible chart plotter or software package on the market today. The AIT2000 features a remote silence button option, two NMEA 0183 Inputs and Outputs, four status LEDs and rugged vibration-proof mounting brackets. The AIT2000 is the third generation of Digital Yacht AIS transponder and replaces the very popular AIT1000.
For permanent USB connection to a PC or MAC, we recommend adding one of our NMEA to USB Adaptor cables. Hence providing an extra level of electrical isolation/protection against ground differences and static discharge.
Configuration of your vessels fixed data, such as MMSI, call sign, boat name, dimensions etc. is made easy with the included Windows and Mac compatible proAIS2 software*. Once configured, the unit will provide AIS data to a PC or Mac running suitable navigation software or a dedicated chart plotter, such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units.
As well as transmitting your own vessels position so that other AIS equipped vessels know where you are, the AIT2000, when connected to an existing VHF antenna (via a splitter) or dedicated AIS antenna, will receive all AIS targets within range of your boat typically up to 30NM
With two industry standard NMEA 0183 outputs, our own N2Net connector for plugging in to an NMEA 2000 network and a simple plug and play USB connection to a PC, the AIT2000 is therefore the perfect AIS transponder solution for all light marine vessels up to 300 tons.
For optimum AIS performance on sailing yachts, we also recommend the SPL2000 Splitter featuring Zero Loss technology which allows you to use your boats existing VHF antenna at the top of the mast for maximum range.
* Except US where dealer programming required
Save
$215 when you buy the
Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee for only
$633 from NVN Marine! Same day shipping before 3pm.
Digital Yacht AIT2000 Class B Transponder w/GPS Antenna Includes Programming Fee Technical Specifications
| Type: |
|
| Vendor: |
Digital Yacht
|
| Weight: |
3.7 lb
|
| Antenna Included: |
No
|
| AIS Class: |
B
|
| Display Included: |
No
|
| Function: |
Receive/Transmit
|
| GPS Included: |
Yes
|
| Product Manual: |
|
