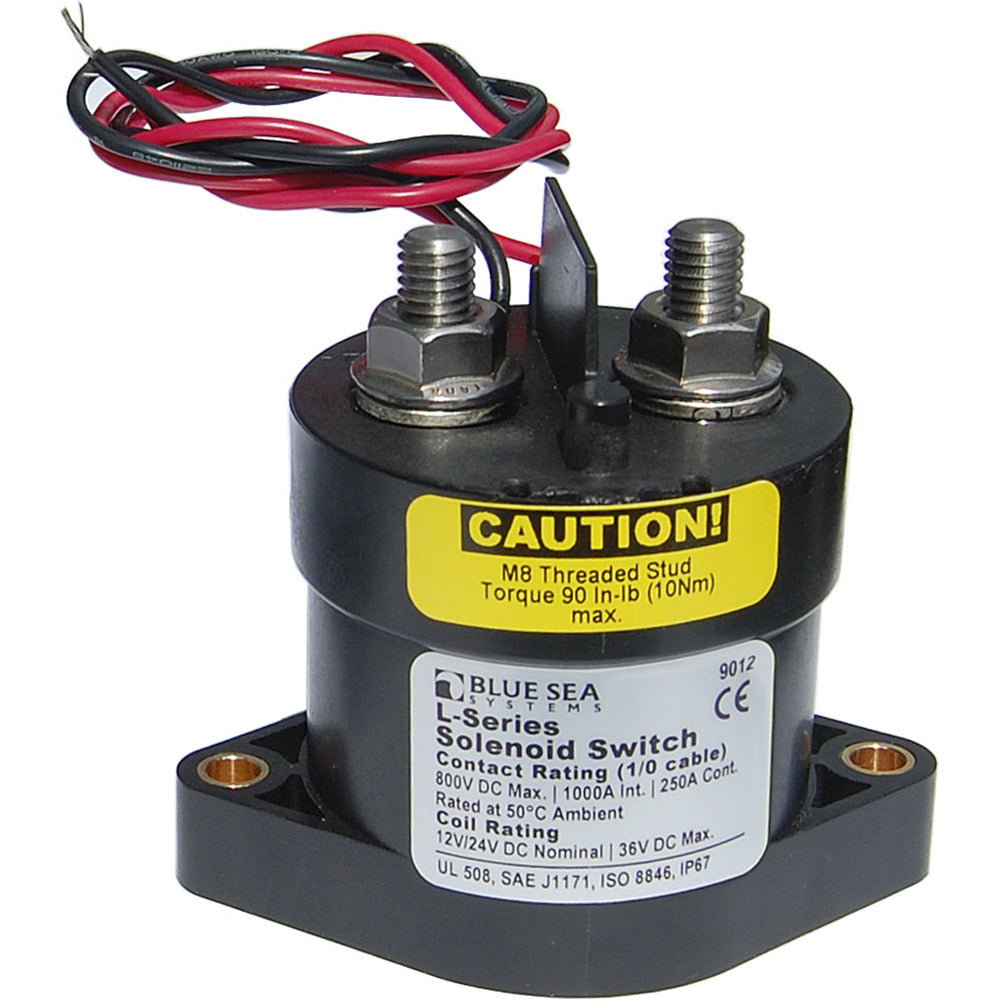

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

No reviews yet Write a Review
$296.64
SKU:
9012
UPC:
632085090128
Condition:
New
5 customers are viewing this product

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

$296.64

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A Product Description

Battery switches isolate the potentially destructive energy in the battery banks when the boat is not in use or during emergencies.

Blue Sea 9012BSS Attributes

  • Type: Key
  • Activation Type: Manual
  • Continuous Ampere Rating (A): 450 Amp
  • Surge Ampere Rating (A): 600 Amp
  • Base Diameter (IN): 2.3 Inch
  • Installation Type: Bolt-On

Blue Sea 9012BSS Features & Benefits

  • Hermetically Sealed Contacts / Vapour Proof
  • Integrated Coil Control Minimizes Heating And Amperage Draw
  • Designed For 12 Or 24 Volt Systems
  • Activated By A Low Amperage ON-OFF Switch Mounted Anywhere
  • Ignition Protected—safe For Installation Aboard Gasoline Powered Boats
  • No Supplier Warranty

Blue Sea 9012BSS Technical Bulletins


L Solenoid Switch - 12-24VDC - 250A

Features:

  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • Integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:

  • Control Circuit Connection: 20 AWG Tinned Wire
  • Nominal Voltage: 12V DC / 24V DC
  • Coil Function: Normally Open
  • Mounting: #10
  • Operating Amperage Current: 3.6A when changing state
  • Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
  • Terminal Stud Torque: 90 in-lb (10.17 Nm)
  • Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
  • Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
  • Cranking Rating 30 sec: 1,000A / 1000A DC
  • Contact Form: SPST-NO
  • Input Voltage: 9-36V DC
  • Inrush Rating: 0.25 sec (10 repeats): 2000A
  • Switching Cycles: 1,000,000
  • Terminal Stud: Serrated Flange Nut
  • Terminal Stud Length: 0.66" (16.76mm)
  • Terminal Stud Size: 5/16" (M8)
  • Weight: 1.00lb (0.45 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



Blue Sea Systems 12 / 24V DC L series solenoid switch with coil energy saver. Control high amperage switching tasks without having to lay heavy cables throughout the ship...







Frequently Asked Questions (FAQ) About Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A






Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A?

Blue Sea Systems 12 / 24V DC L series solenoid switch with coil energy saver. Control high amperage switching tasks without having to lay heavy cables throughout the ship...

What is the working voltage of the product?

12/24

What is the type of the product?

Key

What is the weight of the product?

0.75


Save $88 when you buy the Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A for only $186 from Anchor Sailor! Same day shipping before 3pm.

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

1.0 lb

Continuous Amperage:

450a

Product Manual:
