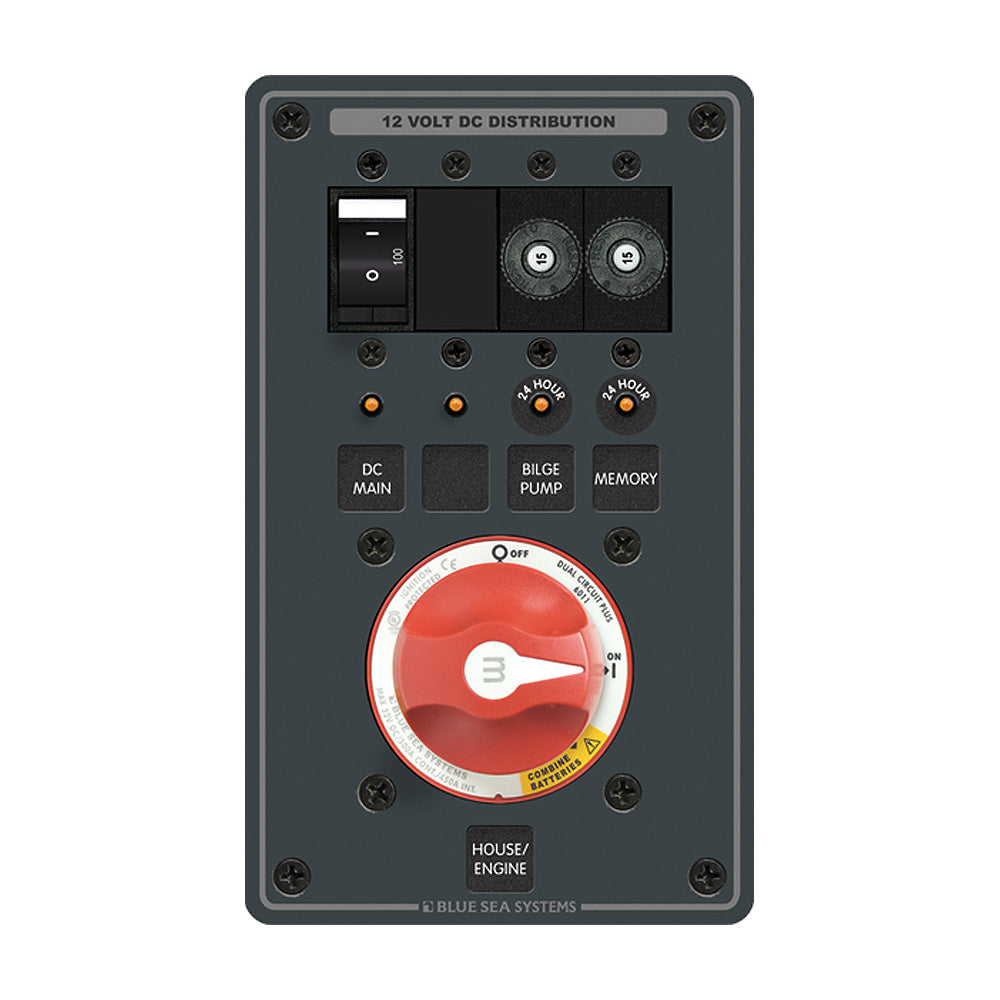

Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus

No reviews yet Write a Review
$255.71
SKU:
8686
UPC:
632085086862
Condition:
New
5 customers are viewing this product

Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus

$255.71

Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus Product Description

m-Series Dual Circuit Plus PN 6011


(1) 100A C-Series Flat Rocker Circuit Breaker
(2) 15A Push Button Thermal Circuit Breakers

  • Designed for twin engine configurations
  • Provides 24 hour circuit protection
  • Provides main DC circuit protection in addition to high ampere load protection
  • Protects electronics from sags and spikes caused by engine cranking
  • Allows emergency cross connect between isolated battery banks
  • Isolates the Engine circuit from the House circuit
  • Simplifies battery switch operation
  • Allows independent battery discharge
  • Addition of an Automatic Charging Relay automates charging both batteries
  • Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



The Blue Sea DC battery management panel is designed for a single engine configuration, which isolates the engine circuit from the internal circuit and allows independent battery control. Protect marine electronic equipment from sagging and spikes caused by engine starting. Allows emergency cross-connections between isolated battery packs. . The switch has ignition protection. Add an automatic charging relay [ACR] (sold separately) to automatically charge the dual battery pack. Including tags. Features: 2 24-hour LED indicators without switching circuit 1 spare aperture for additional Flat Rocker or push buttons; reset circuit breaker only; 1 C series flat rocker arm circuit breaker, 100A; 2 push button type reset circuit breakers only Adapter, 15A; 1 m series 6011 dual circuit plus battery switch.

Frequently Asked Questions (FAQ) About Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus











Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus?

The Blue Sea DC battery management panel is designed for a single engine configuration, which isolates the engine circuit from the internal circuit and allows independent battery control. Protect marine electronic equipment from sagging and spikes caused by engine starting. Allows emergency cross-connections between isolated battery packs. . The switch has ignition protection. Add an automatic charging relay [ACR] (sold separately) to automatically charge the dual battery pack. Including tags. Features: 2 24-hour LED indicators without switching circuit 1 spare aperture for additional Flat Rocker or push buttons; reset circuit breaker only; 1 C series flat rocker arm circuit breaker, 100A; 2 push button type reset circuit breakers only Adapter, 15A; 1 m series 6011 dual circuit plus battery switch.

What is the warranty policy for Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus?

Lifetime
  • Panels configured specifically for single or twin engine applications
  • Dual Circuit Plus batter switches simplify switching and maintain batter bank separation
  • Emergency crossover feature
  • Protects sensitive electronics from current surges caused by engine starts
  • Allows for independent battery control
  • Ignition protected for installation in gasoline powered boats
  • Provides 24 hour circuit protection for bilge pumps and other non-switched accessories
  • Replacement for discontinued Models 8687 and 8691 that used manual type selector switches.
  • Lifetime warranty

What is the working voltage of the product?

12/24 Volts DC

What is the type of the product?

Panel without Meters

How many switches exists on product?

1

What is the product amperage?

60 Amps

What is the dimensions of the product?

4 1/2" Width x 7 1/2" Height

Is this product for Above or Below deck?

Above Deck

What is the warranty policy of the product?

Lifetime warranty


Save $112 when you buy the Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus for only $161 from NVN Marine! Same day shipping before 3pm.

Blue Sea 8686 Dual-Battery m-Series, Dual Circuit Plus Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

2.0 lb

User Guide:

Product Manual:
