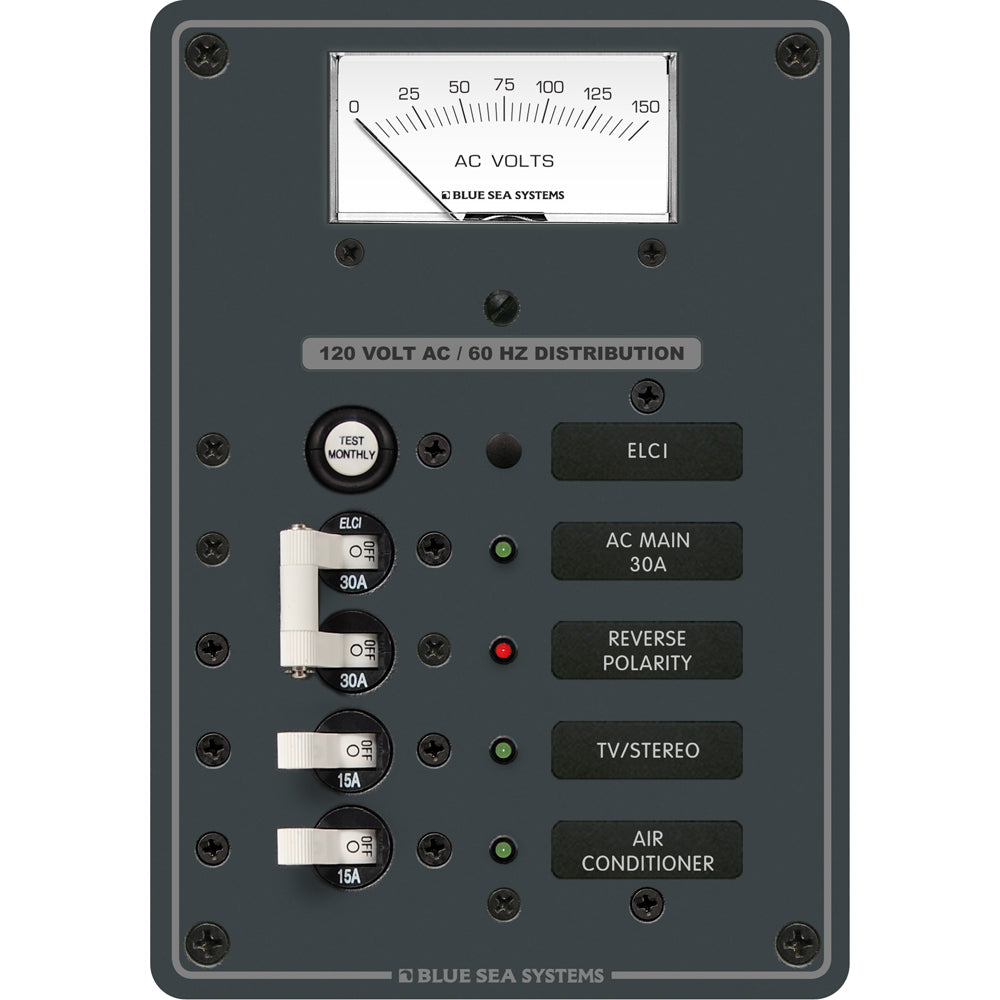

Blue Sea 8102 ELCI GFCI Panel AC 2 Position

No reviews yet Write a Review
$524.36
5 sold in last 36 hour
SKU:
8102
UPC:
632085081027
Condition:
New
5 customers are viewing this product

Blue Sea 8102 ELCI GFCI Panel AC 2 Position

$524.36

Blue Sea 8102 ELCI GFCI Panel AC 2 Position Product Description

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Positions 2
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



Blue Sea Systems 2 position ELCI Main 30A, 2 poles, with voltmeter. Protect passengers and swimmers by adding ELCI circuit breaker traditional metal panel equipment leakage circuit...





Frequently Asked Questions (FAQ) About Blue Sea 8102 ELCI GFCI Panel AC 2 Position













Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 8102 ELCI GFCI Panel AC 2 Position?

Blue Sea Systems 2 position ELCI Main 30A, 2 poles, with voltmeter. Protect passengers and swimmers by adding ELCI circuit breaker traditional metal panel equipment leakage circuit...

What is the warranty policy for Blue Sea 8102 ELCI GFCI Panel AC 2 Position?

Lifetime
  • Protects passengers and swimmers from accidental electric shock due to ground fault or faulty ground.
  • Pre-installed ELCI breaker for quick installation
  • Dimensions: 5 1/4"H x 7 1/2"W x 3 1/2"D
  • Approvals: UL1077, UL 1500, UL 943 A
  • Breaker has Trip-free feature and cannot be held in ON position when fault is detected
  • Meets ABYC E-11 regulation (when installed within guidelines)
  • Lifetime warranty
  • Amperage: 30A
  • Actuator Style: Toggle
  • Maximum Voltage:120V AC
  • Circuit Breaker Type: Magnetic Hydraulic- trip free
  • Interrupt Capacity: 5000A

What is the working voltage of the product?

120v

What is the type of the product?

Panel with Meters

How many switches exists on product?

2

What is the product amperage?

30 Amps

Is this product AC or DC?

AC

What is the dimensions of the product?

7 1/2" Width x 5 1/4" Height

What is the maximum breaker quantity for this product?

2

Is this product for Above or Below deck?

Below Deck

What is the warranty policy of the product?

Lifetime warranty


Save $296 when you buy the Blue Sea 8102 ELCI GFCI Panel AC 2 Position for only $476 from NVN Marine! Same day shipping before 3pm.

Blue Sea 8102 ELCI GFCI Panel AC 2 Position Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

2.3 lb

AC/DC:

AC

Max Breaker Quantity:

2

Voltage:

120v

User Guide:

Product Manual:
