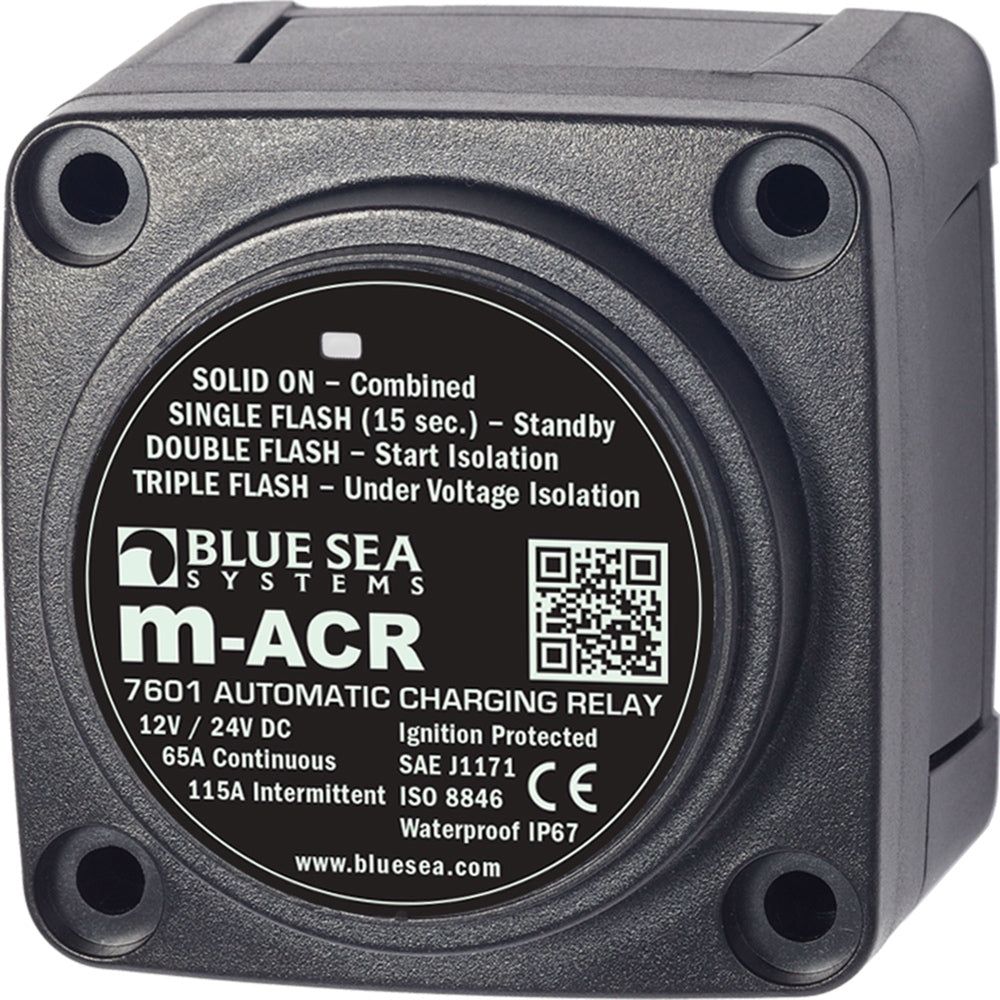

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

No reviews yet Write a Review
$68.52
SKU:
7601
UPC:
632085076016
Condition:
New
5 customers are viewing this product

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

$68.52

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp Product Description

7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:
  • 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
  • Compact case design allows surface and panel mounting
  • Senses charging on two battery banks
  • Snap-on cover insulates terminal connections
  • LED indicates ACR status
  • 1/4" x .032" male quick connect terminal for ground
  • 5/8" (16 mm) stud length to accept multiple cable terminals
  • 12V DC voltage input


Specifications:
  • Intermittent Rating: 5 min.: 115A
  • Terminal Stud Size: 1/4"-20
  • Relay Contact Position: Open (30 sec.): 12.75V DC
  • Continuous Rating: 65A
  • Maximum Torque: 75 in-lb (8.5 Nm)
  • Relay Contact Position - Open High: 16.0V DC
  • Amperage Operating Current: 175mA (Combine)
  • Relay Contact Position: Combine (30 sec.): 13.0V DC
  • Under Voltage Lockout: 9.5V DC
  • Amperage Operating Current: 15mA (Open)
  • Relay Contact Position: Combine (2 min.): 13.6V DC
  • Maximum Cable Size: 1/0 AWG
  • Relay Contact Position: Open (10 sec.): 12.35V DC

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



M series Acr-12 / 24V DC 65A M series Acr-12 / 24V DC 65A automatically combines two battery packs during charging, and isolates the batteries when discharging or starting to discharge.












Frequently Asked Questions (FAQ) About Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp









Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp?

M series Acr-12 / 24V DC 65A M series Acr-12 / 24V DC 65A automatically combines two battery packs during charging, and isolates the batteries when discharging or starting to discharge.

What is the warranty policy for Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp?

Lifetime
  • Allows two batteries to be efficiently charged from a single charging source without external regulators or isolators
  • Automatically isolates house battery during starts to protect electronics
  • Continuous Rating: 65A
  • Intermittent Rating: 115A for 2 min.
  • Cable Size to Meet Rating: 1/0AWG
  • Terminal Stud Size: 1/4"
  • Closing voltage: 6/27.2V (30 sec.)
  • Opening voltage:75/25.5V (30 sec.)
  • Over Voltage Lockout: 16V@ 12V,
  • Under Voltage Lockout: 5V@12V, 19V@ 24V
  • Dimensions: 2 7/8" x 2 7/8" x 2 5/8" D
  • Ignition protected; can be installed in engine rooms of gasoline powered boats
  • LED indicator light for ACR status
  • Compact design can be installed in space limited applications
  • Compatible with Blue Sea Systems 360 panels (using model 14122394)
  • Lifetime warranty
  • Nominal voltage: 12V, 24V
  • Start Isolation: Yes
  • Amperage Operating Current: 90mA (combined), 15mA (open)

What is the type of the product?

Charging Relays

What is the product amperage?

65 Amps

Is this product is ISO approved?

UL 1500 and SAE J1171 External Ignition Protection
IP67 for Immersion

What is the mounting hardware of the product and selling seperately?

Mounting Screws (Sold Separately)

What is the warranty policy of the product?

Lifetime warranty


Save $38 when you buy the Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp for only $62 from NVN Marine! Same day shipping before 3pm.

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

0.6 lb

Continuous Amperage:

65a

Product Manual:
