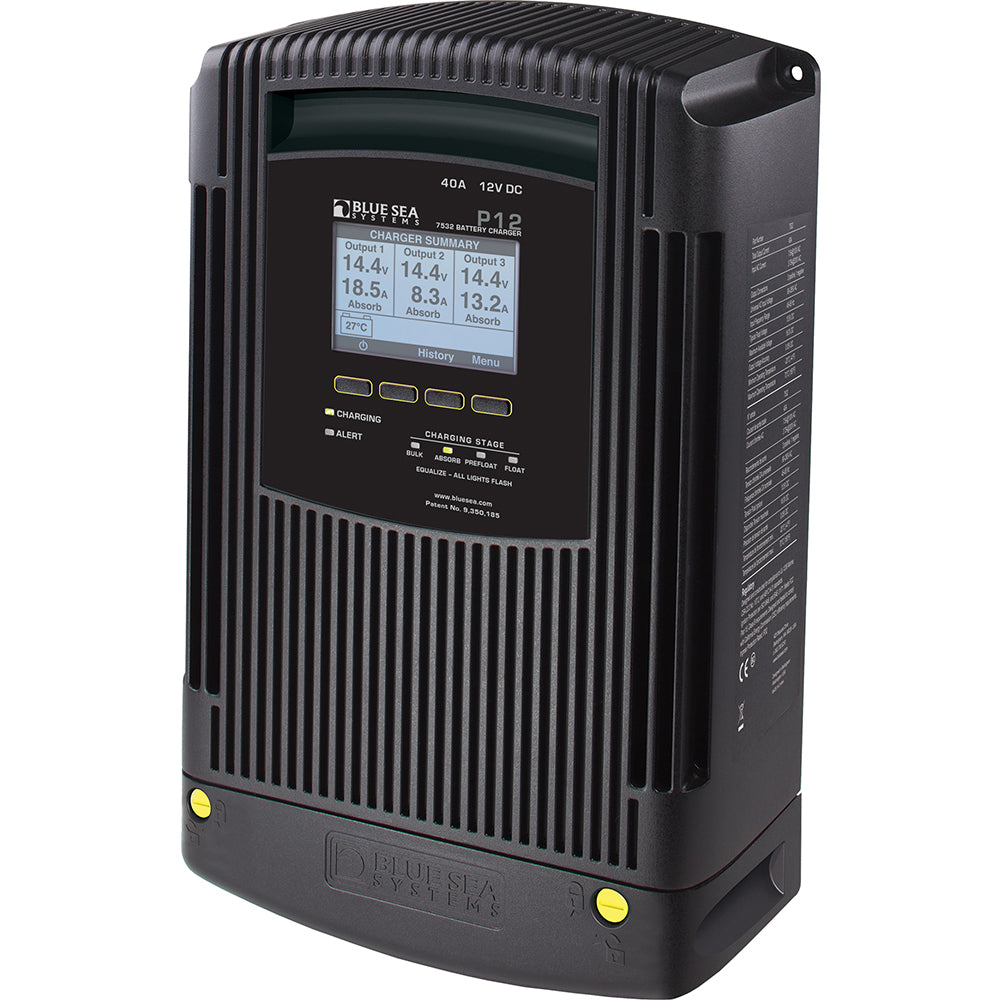

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

No reviews yet Write a Review
$776.59
SKU:
7532
UPC:
632085075323
Condition:
New
5 customers are viewing this product

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

$776.59

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank Product Description

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

  • Four stage, three output, dry mount design, for use in harsh environments.
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection

Specifications:

  • Total Output Current: 40A
  • Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
  • Maximum Output Voltage: 16V DC
  • Nominal Voltage: 12V DC
  • Ignition Protected: Yes
  • Number of Outputs: 1 negative / 3 positive
  • Universal AC Input Voltage: 90-265V AC
  • AC Input Frequency: 45-65Hz
  • Output Voltage Accuracy: 0.05V
  • Typical Float Voltage:13.5V DC
  • Minimum Operating Temperature: -20° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature: -30° C
  • Maximum Storage Temperature: 80° C
  • Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
  • Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
  • Warranty: 5 Year
  • Height: 13.03" (330.96 mm)
  • Width: 8.46" (214.88 mm)
  • Depth: 3.66" (92.96 mm)
  • Weight: 13.00lb (5.9 kg)

"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



The advanced 4-level battery charging function can charge up to 3 battery packs. Charging curves of overflow, gel, thin plate pure lead (TPPL) and absorption glass mat (AGM). Large and bright display with simple language words. Rugged aluminum case. The general line voltage is 90-265V AC. Directly replace the previous Type 7522. Four-level, three-output, dry installation design, used in harsh environments. Directly replace the previous Type 7522.

Frequently Asked Questions (FAQ) About Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank








Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank?

The advanced 4-level battery charging function can charge up to 3 battery packs. Charging curves of overflow, gel, thin plate pure lead (TPPL) and absorption glass mat (AGM). Large and bright display with simple language words. Rugged aluminum case. The general line voltage is 90-265V AC. Directly replace the previous Type 7522. Four-level, three-output, dry installation design, used in harsh environments. Directly replace the previous Type 7522.
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC

After years of research and development, Blue Sea Systems has created a charger that is powerful, efficient, and rugged. The P12 Gen2 is a 12vDC battery charger with an aluminum case. It is power factor corrected for efficient use of AC power and has intuitive diagnostic screens. The P12 Gen2 also has user defined charge profiles and customizable settings.

The Blue Sea 7532 P12 Gen2 is a 12-volt battery that can be used for many different purposes. This battery will work well in an AGM, flooded, or TPPL type system. It has a surge and short circuit protection and is 8.46 inches wide, 13.03 inches high, and 3.66 inches deep.

Is this product portable?

No
  • Rugged, finned aluminum case
  • PreFloat™ stage prevents over charging
  • Power factor corrected for efficient use of AC
  • The rugged, finned aluminum case is built to last.
  • Power factor corrected for efficient use of AC power.
  • Intuitive diagnostic screens make it easy to read your battery's state and condition.
  • User defined charge profiles and customizable settings save you time and effort.
  • Rugged, finned aluminum case for long life and efficient cooling.
  • Power factor corrected for efficient use of AC power.
  • Intuitive diagnostic screens to keep you informed about the status of your battery at all times.
  • User defined charge profiles and customizable to suit your needs.
  • Rugged, finned aluminum case to protect the delicate circuitry inside.
  • Power factor corrected for efficient use of AC power and helps reduce power consumption.
  • Intuitive diagnostic screens that make it easy to monitor battery condition and charging process.
  • User defined charge profiles and customizable settings for your needs.
  • AGM, Flooded, TPPL type
  • 12 Volt DC
  • 40 Amps
  • 8.46 Inch Width x 13.03 Inch Height x 3.66 Inch Depth
  • Surge and Short Circuit
  • The AGM/ Flooded/ TPPL type is a battery that offers a high charge capacity and is ideal for use in large, stationary applications.
  • 12 Volt DC ensures that your battery will work in any application.
  • 40 Amps ensures that you can power up quickly without worrying about overloading your battery.
  • This battery is a 12 Volt DC AGM Flooded type.
  • It can handle 40 Amps and has an 8.46 Inch Width x 13.03 Inch Height x 3.66 Inch Depth.
  • It's surge and short circuit protected, so it'll work great in any environment!

What is the output voltage?

12v

What is the output voltage?

40a

What is the input voltage?

120/240v

How many banks supporting for charge?

3


Save $203 when you buy the Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank for only $705 from NVN Marine! Same day free shipping before 3pm.

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

10.2 lb

Charging Banks:

3

Charger Output - Amps:

40a

Charger Output Voltage:

12v

Portable:

No

Charger Input - Voltage:

120/240v
