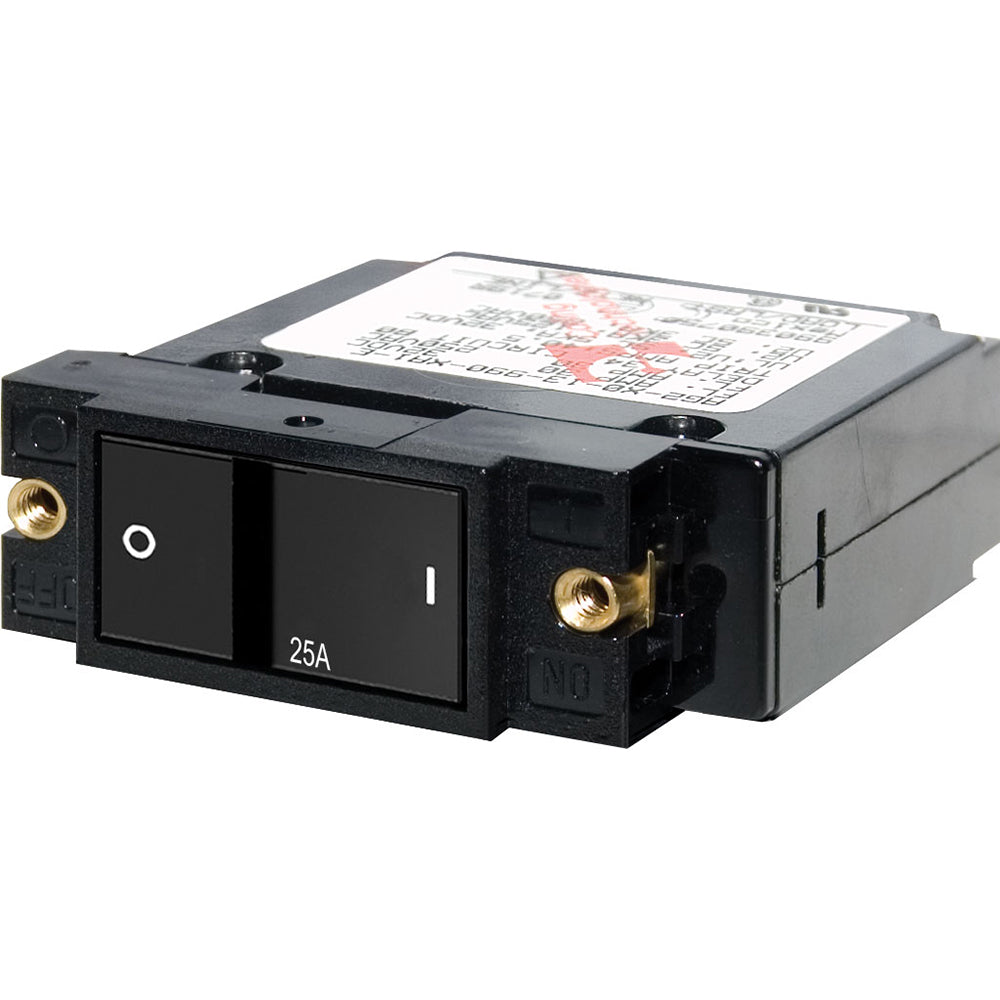

Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp

No reviews yet Write a Review
$15.94
SKU:
7405
UPC:
632085074050
Condition:
New
5 customers are viewing this product

Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp

$15.94

Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp Product Description

Single Pole Small Case 2" Flat Rocker Circuit Breaker

PN:   7405
Amperage:   25 Amp

Features:
  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition

Specifications
Circuit Breaker Type Magnetic Hydraulic - Trip Free
Maximum Voltage 250 Volts AC / 80 Volts DC
Rated Switch Cycles 10,000@rated amperage and voltage


"Warning"WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



Tailor-made circuit protection with a modern look rarely comes pre-installed on the circuit breaker panel with the exact circuit protection your system requires. Each electrical system is unique to the ship and the shipowner. Inevitably, the circuit breaker must be replaced to meet the demands of existing or changing electrical loads. Blue Sea Systems makes it simple. The A series circuit breaker combines circuit protection and switching into a flat rocker, designed to fit the Blue Sea Systems 360 panel and SMS panel housing. These modern-looking circuit breakers use the same mounting holes and can be quickly replaced with the correct protection device. All A series circuit breakers have now obtained CE certification and continue to comply with ABYC and USCG standards. These circuit breakers can handle short-start current surges that occur in motors and other appliances without tripping. To increase safety, the non-trip function prevents the toggle switch from being held in the ON position when a fault is detected. These single-pole circuit breakers can provide 2.5A-50A protection. There will be an application that matches your application and the circuit breaker panel. The key feature combines switch and circuit protection into one toggle switch. Compatible with AC or DC circuit industry standards, and compatible with Blue Sea Systems 360 electrical panels and SMS panel enclosures. The trip function can be easily changed. Means that the switch cannot remain ON in the event of a fault The position can detect the electromagnetic hydraulic delay trip mechanism, which can recognize the surge caused by the starting current and will not trip. Enhances the ability to interrupt higher currents without failure, and is suitable for 2.5A to 50A ratings.

Frequently Asked Questions (FAQ) About Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp









Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp?

Tailor-made circuit protection with a modern look rarely comes pre-installed on the circuit breaker panel with the exact circuit protection your system requires. Each electrical system is unique to the ship and the shipowner. Inevitably, the circuit breaker must be replaced to meet the demands of existing or changing electrical loads. Blue Sea Systems makes it simple. The A series circuit breaker combines circuit protection and switching into a flat rocker, designed to fit the Blue Sea Systems 360 panel and SMS panel housing. These modern-looking circuit breakers use the same mounting holes and can be quickly replaced with the correct protection device. All A series circuit breakers have now obtained CE certification and continue to comply with ABYC and USCG standards. These circuit breakers can handle short-start current surges that occur in motors and other appliances without tripping. To increase safety, the non-trip function prevents the toggle switch from being held in the ON position when a fault is detected. These single-pole circuit breakers can provide 2.5A-50A protection. There will be an application that matches your application and the circuit breaker panel. The key feature combines switch and circuit protection into one toggle switch. Compatible with AC or DC circuit industry standards, and compatible with Blue Sea Systems 360 electrical panels and SMS panel enclosures. The trip function can be easily changed. Means that the switch cannot remain ON in the event of a fault The position can detect the electromagnetic hydraulic delay trip mechanism, which can recognize the surge caused by the starting current and will not trip. Enhances the ability to interrupt higher currents without failure, and is suitable for 2.5A to 50A ratings.

What is the warranty policy for Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp?

Lifetime
  • Combine switching and circuit protection into single toggle switch
  • Compatible with AC or DC circuits
  • Voltage: 240V AC, 32V DC
  • Poles: 1
  • Breaker Type:Magnetic Hydraulic- trip free
  • Interrupt Capacity: 1500A @ 250V AC, 3000A @ 125V AC, 5000A @ 32V DC
  • Mounting Screw: #6-32
  • Terminal Screw: #10-32
  • Approvals: CE, ABYC, UL 1077, TUV certified, CSA certified
  • Industry standard and compatible with Blue Sea Systems 360 electrical panels and SMS panel enclosures for simple change
  • Trip-Free feature means switch cannot be held in ON position when a fault is detected
  • Magnetic-hydraulic delay trip mechanism recognizes surges caused by start-up currents and will not trip
  • Improved ability to interrupt higher current without failure
  • Available in 2.5A to 50A ratings
  • Color actuator indicates OFF position
  • Lifetime warranty
  • Amperage: 2.5A-50A AC, 2.5A-50A DC

What is the type of the product?

Circuit Breakers

What is the product amperage?

8 Amps

Is this product is ISO approved?

CE Marked
TUV Certified
CSA Certified
UL 1077 Recognized

What is the mounting hardware of the product and selling seperately?

Panel; Mounting Hardware (Sold Separately)

What is the warranty policy of the product?

Lifetime warranty


Save $18 when you buy the Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp for only $14 from NVN Marine! Same day shipping before 3pm.

Blue Sea 7405 Single Pole Small Case 2" Flat Rocker Circuit Breaker - 25 Amp Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

0.05 lb

Amperage:

25a
