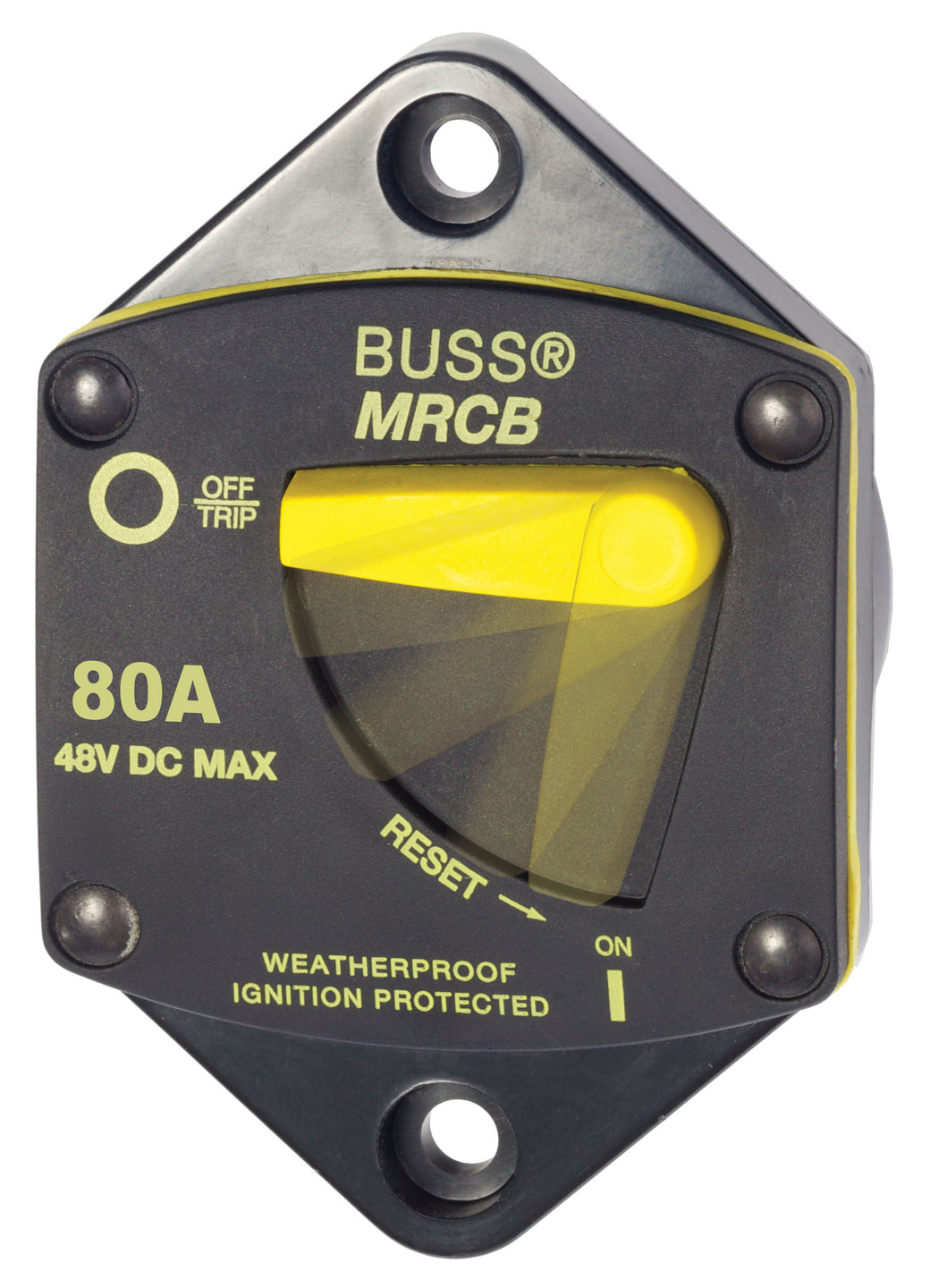

Blue Sea 7042 - 187-Series 80 Amp Circuit Breaker Panel Mount

No reviews yet Write a Review
$68.19
SKU:
7042-BSS
UPC:
632085070427
Condition:
New
5 customers are viewing this product

Blue Sea 7042 - 187-Series 80 Amp Circuit Breaker Panel Mount

$68.19

Blue Sea 7042 - 187-Series 80 Amp Circuit Breaker Panel Mount Product Description

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 80A

Model: 7042-BSS
  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • ""Trip Free"" design cannot be held ""ON"" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats

* Do not use as a switch where high inrush currents are expected.

Specifications
Amperage 80A
Maximum Voltage 48vDC
Mounting Panel Mount
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 75 in-lb (8.47 Nm)
Interrupt Capacity 5000A @ 12V
3000A @ 24V
1500A @ 42V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Case Material Thermoset Polyester
Circuit Breaker Class Type III - switchable/manual reset - trip free
Mounting Hole Accept #10 (M5) Screw
Terminal Stud Size 5/16"" - 18


Heavy-duty circuit protection when switching and circuit protection are required at the same time. Single lever operation is clearly visible. Ignition protection (in accordance with SAE J1171), can be safely installed on aerodynamic boats. Weather resistance. 5/16-18 terminal. The maximum voltage is 42 volts DC.

Save $41 when you buy the Blue Sea 7042 - 187-Series 80 Amp Circuit Breaker Panel Mount for only $61 from Anchor Sailor! Same day shipping before 3pm.

Blue Sea 7042 - 187-Series 80 Amp Circuit Breaker Panel Mount Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

0.5 lb
