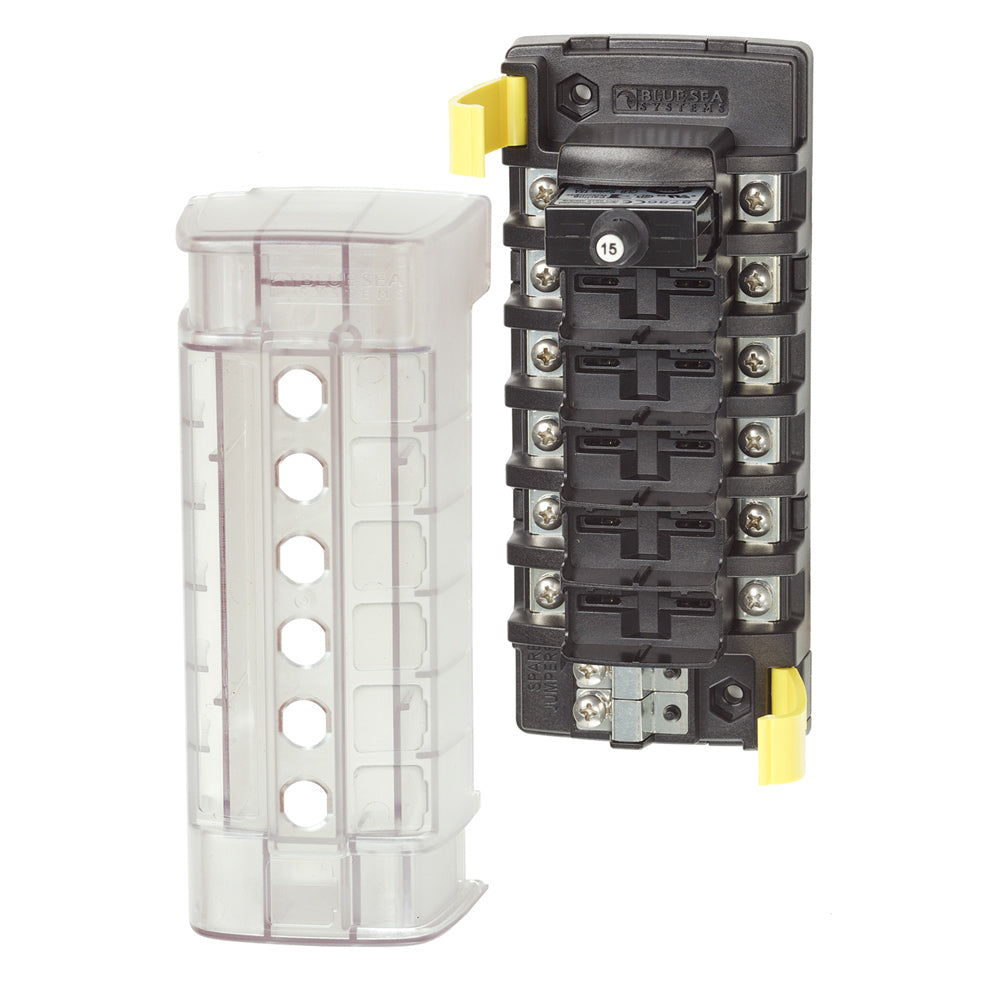

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position

No reviews yet Write a Review
$41.24
17 sold in last 24 hour
SKU:
5050
UPC:
632085050504
Condition:
New
5 customers are viewing this product

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position

$41.24

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position Product Description

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the Compact Design, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Blue Sea 5050BSS Attributes

  • Number Of Circuits: 6 Position Independent Source Without Ground Base
  • Ampere Rating: 32 Amp Per Circuit/ 40 Amp Per Jumped
  • Voltage Rating: 32 Volt DC
  • Operating Temperature: -10 Degree Celsius To 60 Degree Celsius
  • Mounting Type: Snap-In
  • With Insulating Cover: Yes

Blue Sea 5050BSS Features & Benefits

  • Quick Connect Clips Allow Circuit Breakers To Snap Easily Into Place
  • Tin-Plated Copper Busses And Screw Terminals
  • Clear Insulating Cover With Square Format Label Recesses, Satisfies ABYC/USCG Insulation Requirements
  • Easy To Open Clip On Cover
  • Breakouts Allow Wire Access In Two Directions
  • Accepts Ring Terminals
  • Optional Push Button Waterproof Boots Or Dress Nuts Can Be Installed Over Cover
  • Easy To Install
  • No Supplier Warranty

Blue Sea 5050BSS Technical Bulletins


ST CLB Circuit Breaker Block - 6 Position

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



The advantages of resettable circuit breakers over fuses are well known, but people find circuit breakers more expensive and difficult to install. ST CLB circuit breaker...













Frequently Asked Questions (FAQ) About Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position









Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position?

The advantages of resettable circuit breakers over fuses are well known, but people find circuit breakers more expensive and difficult to install. ST CLB circuit breaker...

What is the warranty policy for Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position?

Lifetime

What is the type of the product?

Circuit Breaker Blocks

What is the mounting type of the product?

Snap-In

What is the product amperage?

40 Amps

Is this product is ISO approved?

Satisfies ABYC/USCG Insulation Requirements

What is the mounting hardware of the product and selling seperately?

Includes #8-32 Fasteners


Save $23 when you buy the Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position for only $37 from NVN Marine! Same day shipping before 3pm.

Blue Sea 5050 ST CLB Circuit Breaker Block - 6 Position Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

0.8 lb

Amperage:

32/40a
