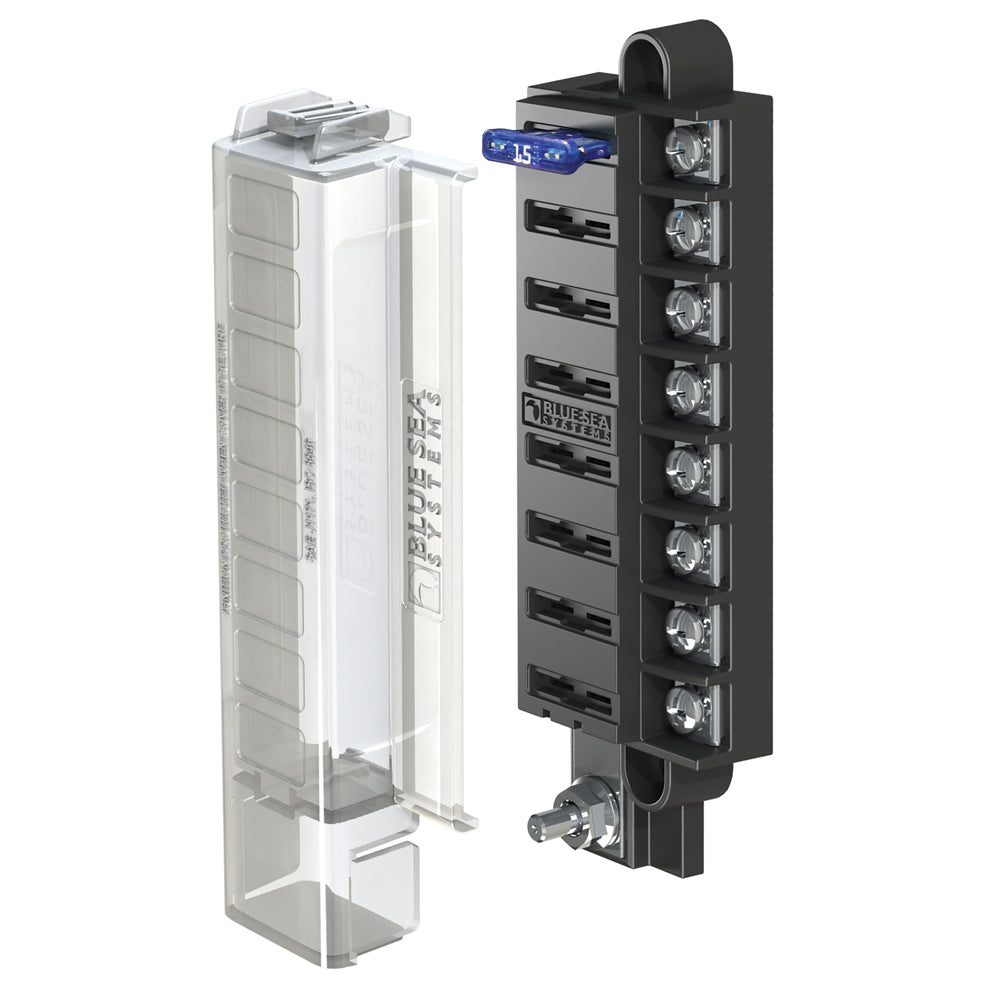

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

No reviews yet Write a Review
$40.69
26 sold in last 9 hour
SKU:
5046
UPC:
632085050467
Condition:
New
5 customers are viewing this product

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

$40.69

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover Product Description

Provides surface mount circuit protection for ATO ® and ATC ® Fuses in a compact footprint. Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment. Insulating cover meets ABYC/USCG insulation requirements.

Blue Sea 5046BSS Attributes

  • Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
  • Type: Water Resistant
  • Circuit Type: 8 Circuit Positions
  • Fuse Type: ATO/ ATC Blade
  • Status Indicator Type: No Status Indicator
  • Cover Style: Protective Cover
  • Includes Flashers: No
  • Includes Fuses: No
  • Includes Horn Relay: No
  • Includes Mounting Brackets: No
  • Includes Terminals: Yes

Blue Sea 5046BSS Features & Benefits

  • Tin-Plated Copper Buses And Fuse Clips
  • Single Side Design Allows Wire Entry From One Side To Minimize Footprint
  • Accepts Ring Or Snap Fork Type Terminals
  • Provides Surface Mount Circuit Protection
  • No Supplier Warranty

Blue Sea 5046BSS Technical Bulletins


ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
  • Compact common source fuse block
  • Accepts ATO® and ATC® fast acting blade fuses
  • Single side entry wiring
  • Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Small format standard and custom labels available


Specifications
  • Circuits:8
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting: #8 Screw (M4)
  • Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .



Blue Sea Systems ST Blade compact 8-circuit fuse box. The eight-circuit fuse box can be installed almost anywhere. It is an effective protection method for the fuse box to prevent...

Frequently Asked Questions (FAQ) About Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover











Who is the Blue Sea Systems?

Blue Sea Systems is committed to the improvement of marine electrical products and systems, such as panel systems, circuit breakers, connectors, and insulators. Blue Sea wants to satisfy their distributors, dealers and ultimately the retail customer by designing and manufacturing electrical products engineered to withstand the harsh marine environment.

How to describe Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover?

Blue Sea Systems ST Blade compact 8-circuit fuse box. The eight-circuit fuse box can be installed almost anywhere. It is an effective protection method for the fuse box to prevent...

What is the warranty policy for Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover?

Lifetime

What is the power rating of the product?

32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit

What is the type of the product?

Water Resistant

What is the weight of the product?

0.08

What is the product amperage?

100 Amps per Block; 30 Amps per Circuit

Is this product is ISO approved?

ISO 8846 Marine

What is the fuse type of the product?

ATO/ ATC Blade

What is the mounting hardware of the product and selling seperately?

Two #8 Screws (Sold Separately)


Save $23 when you buy the Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover for only $36 from NVN Marine! Same day shipping before 3pm.

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover Technical Specifications

Type:

Vendor:

Blue Sea Systems

Weight:

0.5 lb

Fuse Type:

ATO/ATC

Type:

Fuse Blocks
