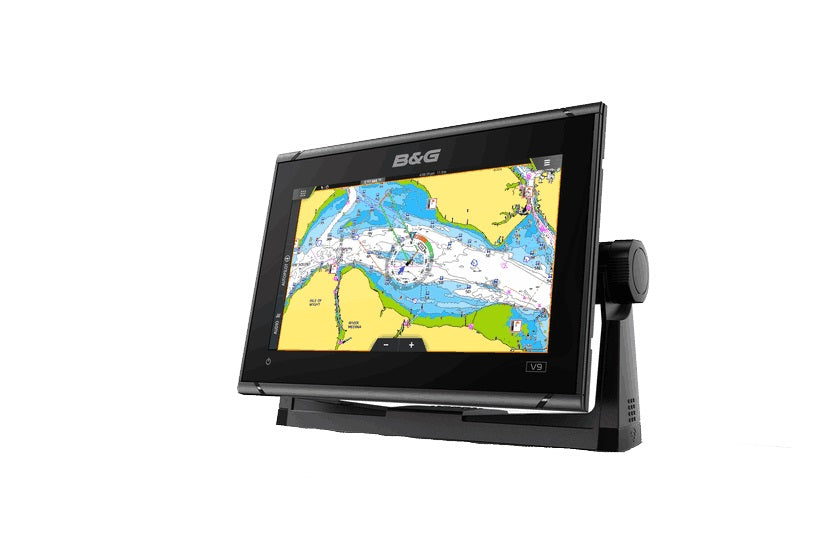

B&G Vulcan 9 FS 9"" Multifunction display
Model: 000-13214-001The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&Gs forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from its bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.
SpecificationsMechanical/Environmental | |
Casing | PC/ABS |
Operating temp | -15°C to +55°C (+5°F to +131°F) |
Water ingress | IPX6 and 7 |
Weight (excluding mounting hardware) | 1.315 kg (2.9 lbs) - GO9 XSE |
Screen brightness | 1200 nits |
Screen resolution | 480 x 800 (H x W) |
Viewing angle in degrees (typical value at contrast ratio = 10) | L/R: 70, top: 50, bottom: 60 |
Electrical | |
Operating voltage | 10 - 17 V DC |
Current draw at 13.6 V (sonar off, max B/L) | 1 A |
Low power standby mode | yes |
Protection | reverse polarity and temporary over-voltage to 36 V |
Alarm output current | 1 A max |
Processor | iMX61 single core |
NMEA 2000 (compliant) | 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) |
Card reader | Dual microSD |
Type: | |
---|---|
Vendor: |
B&G |
Weight: |
10.14 lb |
