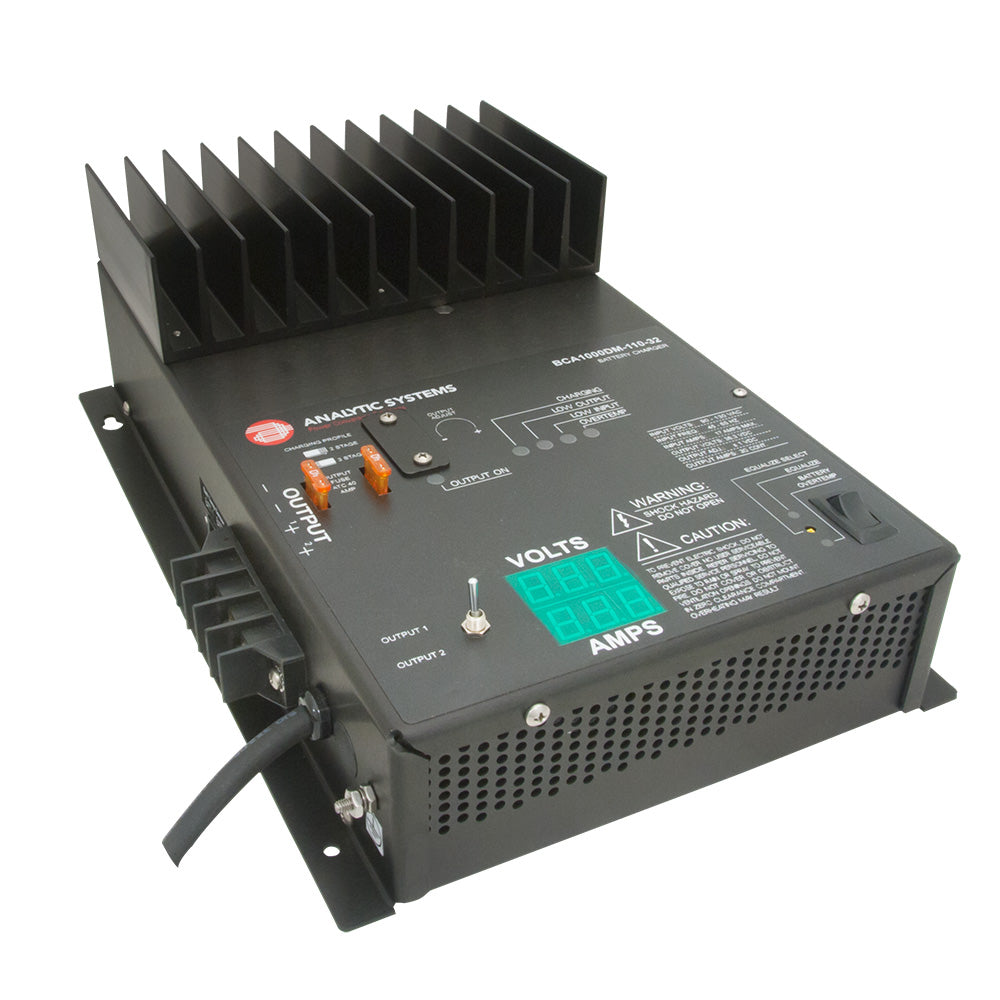

Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL

No reviews yet Write a Review
$1,297.99
SKU:
BCA1000-110-24
Condition:
New
5 customers are viewing this product

Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL

$1,297.99

Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL Product Description

AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL

This BCA1000 COTS AC-source battery charger is designed to charge a battery at 24VDC.

Internally, the single-board design incorporates a time-tested switch mode technology for unmatched efficiency and ultra-quiet operation. Additional stages of filtering on the outputs reduce conducted and radiated EMI noise to very low levels.

This unit features a user-selectable 2-stage or 3-stage charging profile, and the output voltage adjusts for optimum charging. Additionally, the equalization mode and voltage temperature compensation increase the lifetime of expensive battery systems.

Built for rugged duty, this unit is constructed from heavy-duty anodized extruded and billet machined aluminum with O-ring seals and all stainless-steel fasteners.

Reliability features of this product line include LED status indicators, over-temperature shutdown, current limiting, reverse polarity battery connection protection, output short circuit shutdown with automatic recovery, and output over-voltage protection.

Features:

  • Adjustable charging voltage
  • Single or two-bank charging
  • Ultra-quiet low EMI operation
  • Bright LED indicators
  • Equalize mode functionality
  • Rugged and reliable

Specifications:

Input:

  • Nominal Voltage: 110 VAC
  • Actual Voltage: 90-133 VAC
  • Frequency: 45-65
  • Input Amps (Max): 13 A
  • Input Fuse (Slow blow): MDA-20

Output:

  • Nominal Voltage: 24 VDC
  • Float Voltage: 27.2 VDC
  • Absorption Voltage: 28.8 VDC
  • Charging Amps: 40 A
  • Output Fuses (parallel): 2x ATC-30
  • Absorption to Float Switch: 6 Amps
  • Output Overvoltage Protection: 32 ± 1V
  • Temperature Compensation: -60mV/°C
  • Equalize Voltage: 31.0 VDC
  • Recommended Battery Size (Amp-hours): 160-240
  • Supported no. of Battery Banks: Charges up to two connected battery banks
  • Output Volt. Adjust: +/- 1.0 V
  • Charging Stages (Selectable): 2 Stage (CC-Float) or 3 Stage (CC-Absorption-Float), User-selectable
  • Output Ripple & Noise: <50 mV
  • Transient Response: <1V for 50% Surge
  • Regulation (Line & Load): < +/- 0.5%
  • Duty Cycle: Continuous (100% for 24 hours per day)
  • Efficiency: >75% @ Maximum Output

Mechanical:

  • Length: 14.5 in. / 36.8 cm
  • Width: 9.9 in. / 25.1 cm
  • Height: 5.0 in. / 12.7 cm
  • Clearance: 1.0 in. / 2.5 cm all around
  • Weight: 12.0 lb. / 5.5 kg (approximate)
  • Material and Finish: Black anodized marine-grade aluminum
  • Fasteners: 18-8 stainless steel
  • Input Connection: 3 m / 9.8ft 3xAWG14 power cord with NEMA 5-15 or CEE 7/VII compatible plug
  • Output Connection: Molex 4-pin BEAU Terminal Strip
  • Battery Temperature Sensor Connection: RJ45 ‘telephone jack’ connector

Environmental & Safety:

  • Operating Temperature: -25°C to +40°C @ maximum output. Derate linearly 2.5% per °C from +40°C
  • Storage Temperature: -40°C to +100°C
  • Humidity: 0 - 95% relative humidity (non-condensing) with standard conformal coating
  • Isolation: Input-Output & Input-Case: 1500 VDC; Output-Case: 500 VDC (1500 VDC @ 48 V Out)
  • Cooling: Two interior thermostatic cooling fans
  • Audible Noise: 0 dB @ 1 meter when the fan operating
  • Typical Service Life: > 10 years (87,600 hrs.)
  • Warranty: Three Years of Parts and Labor
  • Safety: Designed to meet UL458 & CSA 22.2.107.1
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.



Save $177 when you buy the Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL for only $1179 from Anchor Sailor! Same day free shipping before 3pm.

Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL Technical Specifications

Type:

Vendor:

Analytic Systems

Charging Banks:

2

Product Brochure:
