The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

1 kW

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

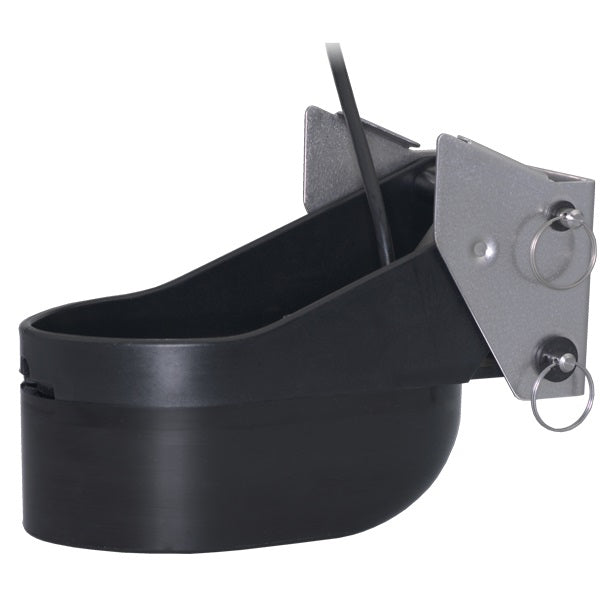

• Airmar TM265C Low/High CHIRP Transom Mount Transducer with Bare Wire Mix-N-Match Cable Model: TM265C-LH-08 Internal Broadband Ceramics Depth & fast response water temperature sensor Urethane housing and stainless steel mounting bracket Can retrofit
• This transducer is ideal for fishing, cruising and other recreational boating activities.
• The Airmar TM265C Low/High CHIRP Transom Mount Transducer features a high quality ceramic element that provides excellent depth

• Great for fishing enthusiasts and professional fishermen
• Low-frequency CHIRP sonar for a more detailed picture of the underwater environment
• Internal Broadband Ceramics Depth & fast response water temperature sensor
• Urethane housing and stainless steel mounting bracket

Airmar's TM265C-LH Low/High CHIRP Transom Mount Transducer is a versatile, high performance transducer that has a low profile and can be mounted on the transom. The TM265C-LH is a broadband transducer with a depth of -8' to 260'. The TM265C-LH has a fast response water temperature sensor and Urethane housing.

1 kW

• Airmar TM265C Low/High CHIRP Transom Mount Transducer with Bare Wire Mix-N-Match Cable Model: TM265C-LH-08 Internal Broadband Ceramics Depth & fast response water temperature sensor Urethane housing and stainless steel mounting bracket Can retrofit
• This transducer is ideal for fishing, cruising and other recreational boating activities.
• The Airmar TM265C Low/High CHIRP Transom Mount Transducer features a high quality ceramic element that provides excellent depth
• Great for fishing enthusiasts and professional fishermen
• Low-frequency CHIRP sonar for a more detailed picture of the underwater environment
• Internal Broadband Ceramics Depth & fast response water temperature sensor
• Urethane housing and stainless steel mounting bracket
• The TM265C-LH-08 has a maximum depth of 10,000 feet.
• It's equipped with an internal broadband ceramic sensor for fast response and accurate water temperature readings.
• Urethane housing protects the transducer from the elements and stainless steel mounting bracket allows for easy installation on any boat.
• Airmar's patented mix n' match cables allow you to customize your cable lengths to fit any application.
• The Airmar TM265C Low/High CHIRP Transom Mount Transducer with Bare Wire Mix-N-Match Cable Model: TM265C-LH-08 Internal Broadband Ceramics Depth & fast response water temperature sensor Urethane housing and stainless steel mounting bracket Can retrofit is a versatile, reliable, and high performance transducer that can be used in a variety of applications.
• The Airmar TM265C Low/High CHIRP Transom Mount Transducer with Bare Wire Mix-N

12-Pin Chirp

Depth, Temperature

USA

Urethane/Stainless Bracket

Low-High

8 (w) X 10 (h) X 12 (l) inches and the weight is: 11.19 lb.

MMC

Transom

CHIRP-Ready Dual-Band

Bare Wire

10 m (33')

0

Fishing, Commercial Fishing

Urethane

Low frequency- 914 m (3000'), High frequency- 304 m (1000')

3° to 21°

130-210 kHz

16°-11°

42-65 kHz (25° to 16° beamwidth)

25°-16°

No

Fiberglass, Wood, Metal

1 kW

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.
