Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin

No reviews yet Write a Review
$2,121.21
SKU:
TM185C-M-12G
Condition:
New
5 customers are viewing this product

Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin

$2,121.21

Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin Product Description

Airmar TM185C Transducer

Medium CHIRP With Garmin 12-Pin

Model: TM185-HW
  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz - Constant 25° beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency 200 kHz plus everything else in the bandwidth
  • High frequency band provides excellent shallow to mid-depth performance, bottom detail and fish target separation
  • High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column

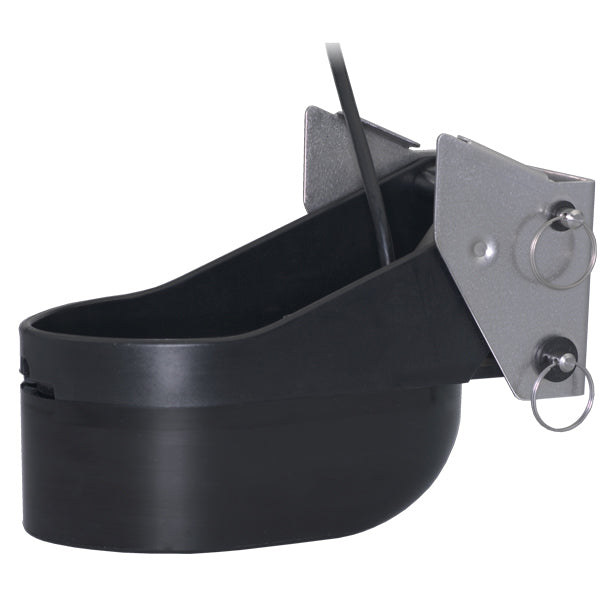

  • Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats
  • Recommended boat size: Up to 10 m (32')
  • Recommended for use on planing and displacement hulls in fiberglass or wood
  • Also available in thru-hull (B175HW) and in-hull (M285HW) models
  • Exclusive Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

Specifications
Weight 4.16 kg (9.17 lb)
Accommodates Transom Angles 3° to 21°
Acoustic Window Urethane
Urethane transom transducer with a stainless steel bracket
One internal broadband ceramic assembly

What's in the Box:
  • TM185C-HW-MM
  • MMC-12G


Airmar TM185C sensor, CHIRP model with Garmin 12-pin: TM185-HWDepth and fast response water temperature sensor 1 kW, maximum depth of 152 m (500') High frequency: 150 kHz to 250 kHz-constant 25°...

Frequently Asked Questions (FAQ) About Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin
























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin?

1 kW

Airmar’s TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1500') and gives ultra-clear target resolution.

  • Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin Model: TM185-HW
  • Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz - Constant 25& 176; beamwidth 100 kHz of total

The Airmar TM185C Transducer is a medium-frequency, 1 kW, 12-pin transducer with a maximum depth of 457 m (1,500') for fishing. It features 50 kHz of total bandwidth from one transducer and covers the depth range of 0 to 457 m (1,500').

What is the power rating of the product?

1 kW
  • Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin Model: TM185-HW
  • Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz - Constant 25& 176; beamwidth 100 kHz of total
  • Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin Model: TM185C-M
  • Depth and fast-response water temperature sensor 1 kW with a maximum depth of 457 m (1,500')
  • Medium frequency: 85 to 135 kHz
  • 50 kHz of total bandwidth from one transducer
  • The Airmar TM185C Transducer is a medium CHIRP with Garmin 12-pin model: TM185C-M.
  • It features a depth and fast-response water-temperature sensor and 1 kW with a maximum depth of 457 meters (1,500 feet).
  • It has 50 kHz of total bandwidth from one transducer and it covers the medium frequency of 85 to 135 kHz.

Which mix and match cable useful for this product?

12-Pin Chirp

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

How to define housing of Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin?

Urethane/Stainless Bracket

What is the frequency band of the product?

Medium

What's the Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin package dimensions and weight?

8 (w) X 10 (h) X 12 (l) inches and the weight is: 8.42 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin?

Transom

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the connector type of the product?

Garmin 12-Pin

What is the length of cable?

10 m (33')

What is the display connector of the product?

12G

What is the common use place of the product?

Leisure/Yachting, Fishing

What is the housing material of the product?

Urethane

What is the max depth of the product?

457 m (1500')

What is the transom angle of the product?

3° to 21°

This product has tilted element?

No

What is the medium frequency level of the product?

85-135 kHz

What is the medium frequency beamwidth of the product?

16°-11°

What is the manufacturer notes about Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin?

1 kW

Airmar’s TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1500') and gives ultra-clear target resolution.



Save $111 when you buy the Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin for only $1279 from NVN Marine! Same day shipping before 3pm.

Airmar TM185C Transducer Medium CHIRP With Garmin 12-Pin Technical Specifications

Type:

Vendor:

Airmar

Weight:

8.2 lb
