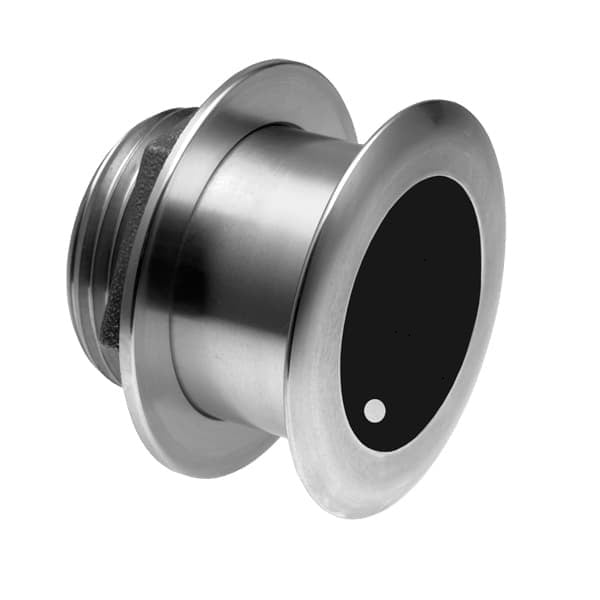

Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin

No reviews yet Write a Review
$2,022.85
SKU:
AIRSS175C12L9N
Condition:
New
5 customers are viewing this product

Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin

$2,022.85

Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Product Description

Airmar SS175C-12-L 12d Tilt

Low CHIRP with Navico 9-Pin

Model: SS175C-12-L
  • Depth and fast-response water-temperature sensor
  • 1 kW
  • Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32° to 21° beamwidth
  • Great deep water performance
  • High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
  • Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal
  • Recommended boat size: Up to 11 m (36')
  • Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls
  • Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Specifications
Weight 2.7 kg (6 lb)
Hull Deadrise Up to 24°
Acoustic Window Urethane
Hole Size 98 mm (3-7/8"")
Seven internal broadband ceramic assemblies


Model: SS175C-12-L depth and fast response water temperature sensor 1 kW low frequency: 40 k-Hz to 60 k-Hz, maximum depth performance up to 762 m (2500') 32° ??to 21° beam width large deep water performance high performance , Low-profile hull shell, if installed correctly, can provide good speed resolution. Stainless steel shell, can be used for glass fiber, wood or metal stepped, sliding or shifting hulls. Recommended hull size: up to 11 m (36'). Bronze hull (B175L) models for fiberglass and wood hulls are also available. The exclusive Xducer ID technology Airmar's low-profile Chirp-ready sensor model is a perfect complement to small boats such as medium-sized consoles. The low frequency band is for deep-water performers, providing excellent coverage and tracking at deeper depths. The SS175L sensor can provide up to 20 k-Hz total bandwidth with only one installation and has excellent deep water performance. The ceramic element of the tilt transducer is fixed in the transducer housing at an angle of 20°, 12° or 0°. The transducer is installed almost flush with the hull, and the tilting element corrects the dead angle of the hull by directly directing the beam downward. This ensures that the greatest degree of echo is returned to the transducer and a more accurate depth reading is obtained. -Specification weight 2.7 kg (6 lbs) heavy hull-Sound insulation windows up to 24°-Urethane hole size 98 mm (3-7/8 inch") seven internal broadband ceramic components

Frequently Asked Questions (FAQ) About Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin




Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin?

Model: SS175C-12-L depth and fast response water temperature sensor 1 kW low frequency: 40 k-Hz to 60 k-Hz, maximum depth performance up to 762 m (2500') 32° ​​to 21° beam width large deep water performance high performance , Low-profile hull shell, if installed correctly, can provide good speed resolution. Stainless steel shell, can be used for glass fiber, wood or metal stepped, sliding or shifting hulls. Recommended hull size: up to 11 m (36'). Bronze hull (B175L) models for fiberglass and wood hulls are also available. The exclusive Xducer ID technology Airmar's low-profile Chirp-ready sensor model is a perfect complement to small boats such as medium-sized consoles. The low frequency band is for deep-water performers, providing excellent coverage and tracking at deeper depths. The SS175L sensor can provide up to 20 k-Hz total bandwidth with only one installation and has excellent deep water performance. The ceramic element of the tilt transducer is fixed in the transducer housing at an angle of 20°, 12° or 0°. The transducer is installed almost flush with the hull, and the tilting element corrects the dead angle of the hull by directly directing the beam downward. This ensures that the greatest degree of echo is returned to the transducer and a more accurate depth reading is obtained. -Specification weight 2.7 kg (6 lbs) heavy hull-Sound insulation windows up to 24°-Urethane hole size 98 mm (3-7/8 inch") seven internal broadband ceramic components
  • The Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Model: SS175C-12-LDepth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32& 176; to 21& 176; beamwidth Great
  • This is a high power, low frequency instrument that features a depth and fast response water temperature sensor. It has a maximum depth performance of 762 m (2500
  • Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Model: SS175C-12-LDepth and fast-response water-temperature sensor
  • - 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500')
  • - 32& 176; to 21& 176; beamwidth Great for fishing, boating, or any application requiring a wider coverage area

What is the hole size of the product?

98 mm (3-7/8"")
  • The Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Model: SS175C-12-LDepth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32& 176; to 21& 176; beamwidth Great
  • This is a high power, low frequency instrument that features a depth and fast response water temperature sensor. It has a maximum depth performance of 762 m (2500
  • Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Model: SS175C-12-LDepth and fast-response water-temperature sensor
  • - 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500')
  • - 32& 176; to 21& 176; beamwidth Great for fishing, boating, or any application requiring a wider coverage area
  • The Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Model: SS175C-12-LDepth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32& 176; to 21& 176; beamwidth Great
  • is a high quality marine transducer that can measure the depth of objects beneath the surface of the water. It is a great addition for any boat or ship.
  • 12-inch (305mm) diameter, 3.65-inch (93mm) height, and 2.5-inch (63mm) depth for a sleek design
  • 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500')
  • 32& 176; to 21& 176; beamwidth
  • Depth and fast response water temperature sensor


Save $271 when you buy the Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin for only $1759 from NVN Marine! Same day free shipping before 3pm.

Airmar SS175C-12-L 12d Tilt Low CHIRP with Navico 9-Pin Technical Specifications

Type:

Vendor:

Airmar

Weight:

11.0 lb
