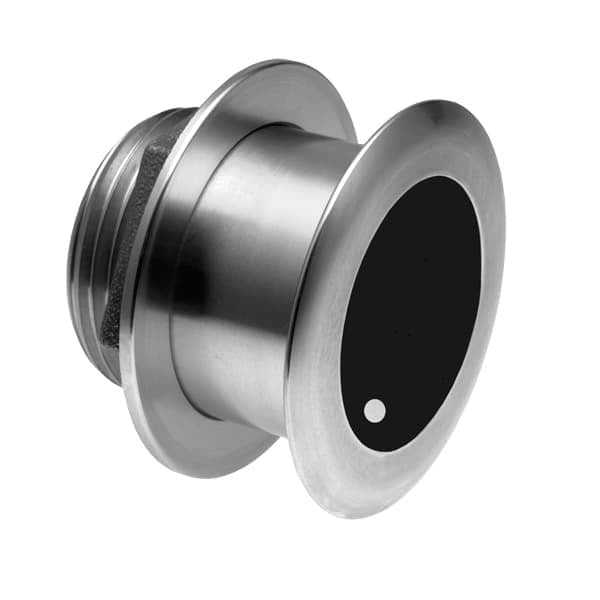

Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector

No reviews yet Write a Review
$1,907.85
SKU:
AIRSS175C0HW0
Condition:
New
5 customers are viewing this product

Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector

$1,907.85

Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Product Description

Airmar SS175C-0-HW 0d Tilt

High Wide CHIRP With No Connector

Model: SS175C-0-HW
  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • High frequency provides superior shallow water performance, bottom detail and fish target separation
  • High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
  • Low-profile thru-hull housing provides good resolution at speed when installed properly
  • Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal
  • Recommended boat size: Up to 11 m (36')
  • Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models
  • Exclusive Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications
Weight 2.7 kg (6 lb)
Hull Deadrise Up to 24°
Acoustic Window Urethane
Hole Size 98 mm (3-7/8"")
One internal ceramic assembly


Model: SS175C-0-HW 1 kW with a maximum depth of 152 m (500') High frequency: 150 k-Hz to 250 k-Hz = constant 25° beam width 100 k-the total bandwidth of a sensor Hz popular 200 k -Hz fishing frequency and all other information in the bandwidth. The high frequency provides excellent shallow water performance. The bottom detail and fish target separation. The high beam width provides greater coverage under the boat and is used to detect the correct installation of the fish in the upper water column. Later, the hull shell can provide good speed resolution. Stainless steel shell can be used for stepped, sliding or shifting hulls made of fiberglass, wood or metal. Recommended hull size: maximum 11 m (36'). Beams are also available Install (TM185HW), hull (M285HW) and bronze shell (B175HW) exclusive Xducer ID technology. Through Airmar's unique wide beam, high frequency Chirp-ready transducer, your ship has a larger coverage area. The high frequency band operates in the frequency range of 150 to 250 k-Hz and has a fixed 25° beam at all frequencies. The high frequency band provides excellent resolution. Compared with most high-frequency narrow-beam transducer options, the constant wide beam width provides twice the coverage under the ship and has excellent fish arches on the display. The height and width are ideal for offshore and offshore fishing, because the resolution and maximum coverage must be as low as 500'. The tilted element transducer has elements fixed in the transducer housing at an angle of 20°, 12° or 0°. Because the installation position of the transducer is almost flush with the hull, when the transducer is installed, the inclination can correct the dead angle of the hull and orient the ceramic element horizontally to ensure the maximum return of the echo to the transducer. -Specification weight 2.7 kg (6 lbs) heavy hull-Sound insulation windows up to 24°-Polyurethane hole size 98 mm (3-7/8 inch") an internal ceramic component

Frequently Asked Questions (FAQ) About Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector




Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector?

Model: SS175C-0-HW 1 kW with a maximum depth of 152 m (500') High frequency: 150 k-Hz to 250 k-Hz = constant 25° beam width 100 k-the total bandwidth of a sensor Hz popular 200 k -Hz fishing frequency and all other information in the bandwidth. The high frequency provides excellent shallow water performance. The bottom detail and fish target separation. The high beam width provides greater coverage under the boat and is used to detect the correct installation of the fish in the upper water column. Later, the hull shell can provide good speed resolution. Stainless steel shell can be used for stepped, sliding or shifting hulls made of fiberglass, wood or metal. Recommended hull size: maximum 11 m (36'). Beams are also available Install (TM185HW), hull (M285HW) and bronze shell (B175HW) exclusive Xducer ID technology. Through Airmar's unique wide beam, high frequency Chirp-ready transducer, your ship has a larger coverage area. The high frequency band operates in the frequency range of 150 to 250 k-Hz and has a fixed 25° beam at all frequencies. The high frequency band provides excellent resolution. Compared with most high-frequency narrow-beam transducer options, the constant wide beam width provides twice the coverage under the ship and has excellent fish arches on the display. The height and width are ideal for offshore and offshore fishing, because the resolution and maximum coverage must be as low as 500'. The tilted element transducer has elements fixed in the transducer housing at an angle of 20°, 12° or 0°. Because the installation position of the transducer is almost flush with the hull, when the transducer is installed, the inclination can correct the dead angle of the hull and orient the ceramic element horizontally to ensure the maximum return of the echo to the transducer. -Specification weight 2.7 kg (6 lbs) heavy hull-Sound insulation windows up to 24°-Polyurethane hole size 98 mm (3-7/8 inch") an internal ceramic component
  • Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Model: SS175C-0-HW
  • Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz = Constant 25& 176; beamwidth 100 kHz of
  • Tilt sensor ensures accurate readings even in rough seas
  • Designed for high-frequency CHIRP sonar
  • High sensitivity and fast response time

The Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Model: SS175C-0-HWDepth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25& 176; beamwidth 100 kHz of

What is the hole size of the product?

98 mm (3-7/8"")
  • Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Model: SS175C-0-HW
  • Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz = Constant 25& 176; beamwidth 100 kHz of
  • Tilt sensor ensures accurate readings even in rough seas
  • Designed for high-frequency CHIRP sonar
  • High sensitivity and fast response time
  • Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Model: SS175C-0-HW
  • Depth and fast-response water-temperature sensor with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz = Constant 25& 176; beamwidth 100 kHz of
  • Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Model: SS175C-0-HWDepth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz = Constant 25& 176; beamwidth 100 kHz of


Save $431 when you buy the Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector for only $1659 from NVN Marine! Same day free shipping before 3pm.

Airmar SS175C-0-HW 0d Tilt High Wide CHIRP With No Connector Technical Specifications

Type:

Vendor:

Airmar

Weight:

11.0 lb
