Depth, Speed-Through-Water, Water Temperature, Boat Attitude
For a product to be considered âbreakthrough,â it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.
Besides water Temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar's powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensorânot in the displays.

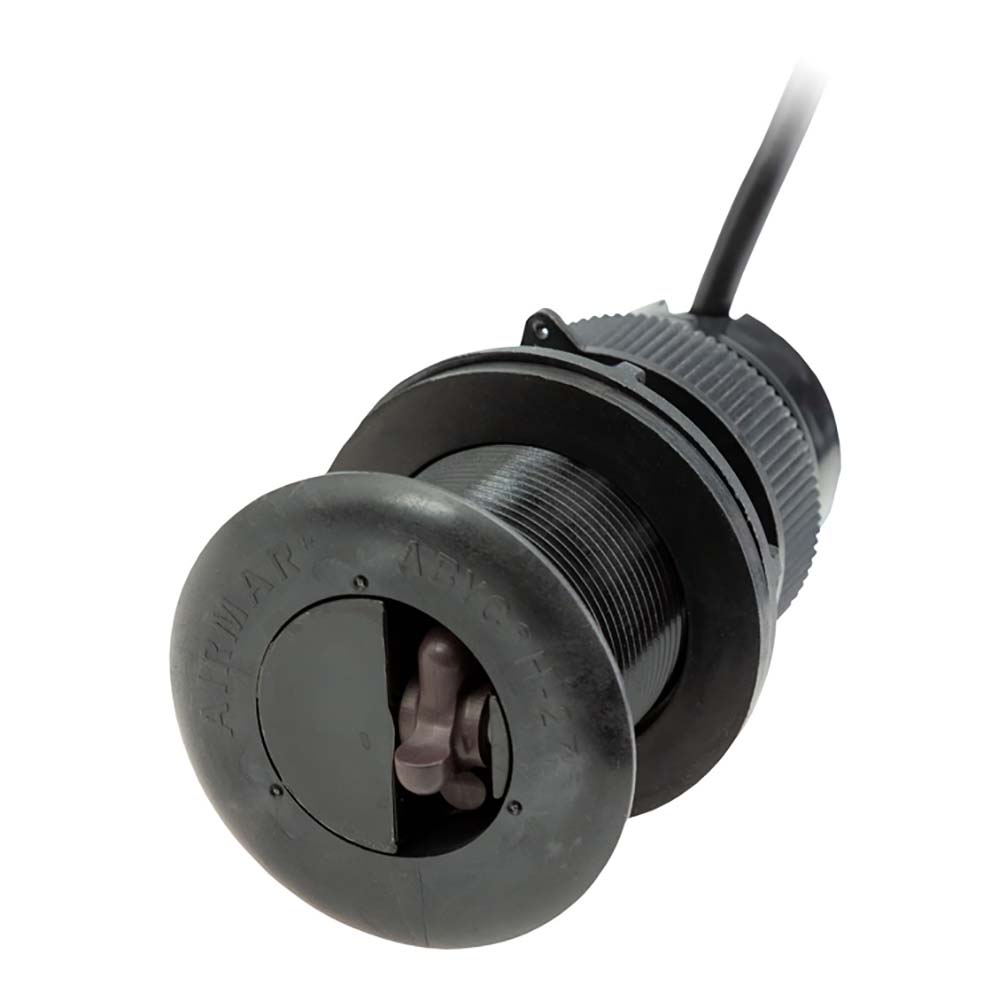

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth
Depth, Speed-Through-Water, Water Temperature, Boat Attitude
For a product to be considered a breakthrough, it has to vastly change conventional behavior and enhance abilities. The DST810 Smart Multisensor, together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.
Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmars powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensornot in the displays.
Features
5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting
Wireless connectivity to Airmar's CAST App has user-friendly benefits:
Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board
Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
Enable and disable PGNs and set offset and output rates
The Perfect Sensor for Every Use
SAILING
5 Hz speed output for visibly smoother speed data.
Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data.
DST810 stores configurations and delivers data to the NMEA 2000® network.
Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
POWERBOATS
5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument.
Simple depth offsets and corrected speed-through-water via Airmar's CAST App.
Popular depth sensor for shallow-water performance.
NEW â 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
NEW â Integrated attitude sensor for heel and trim benefits sailing and power boats
Simple attitude calibration to correct for off-center mounting
NEW â Wireless connectivity to Airmar's CAST App has new user-friendly benefits:
Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on board
Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
Enable and disable PGN's and set offset and output rates
The Perfect Sensor for Every Use
SAILING
New 5 Hz speed output for visibly smoother speed data.
Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data.
DST810 stores configurations and delivers data to the NMEA 2000 network.
Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
POWERBOATS
5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument.
Simple depth offsets and corrected speed-through-water via Airmar's CAST App.
Popular depth sensor for shallow water performance.
Frequently Asked Questions (FAQ) About Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth
Who is the Airmar?
The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.
How to describe Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth?
Depth, Speed-Through-Water, Water Temperature, Boat Attitude
For a product to be considered âbreakthrough,â it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.
Besides water Temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar's powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensorânot in the displays.
What is the working voltage of the product?
9 to 16 VDC
What is the power rating of the product?
100 W
What is the transducer functions of the product?
Depth, Speed, Temperature
In which country this product made in?
USA
What is the frequency band of the product?
235 kHz
What's the Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth package dimensions and weight?
8 (w) X 4 (h) X 10 (l) inches and the weight is: 2.05 lb.
How long is the product? (Feet)
100'
What is the gauge of the product?
16/4 AwG
Is this product single or dual frequency?
Conventional Single Frequency
How to mount or what is the mounting style of Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth?
What is the manufacturer notes about Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth?
Depth, Speed-Through-Water, Water Temperature, Boat Attitude
For a product to be considered âbreakthrough,â it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.
Besides water Temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar's powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensorânot in the displays.
Save $70 when you buy the Airmar DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth for only $371 from NVN Marine! Same day shipping before 3pm.
