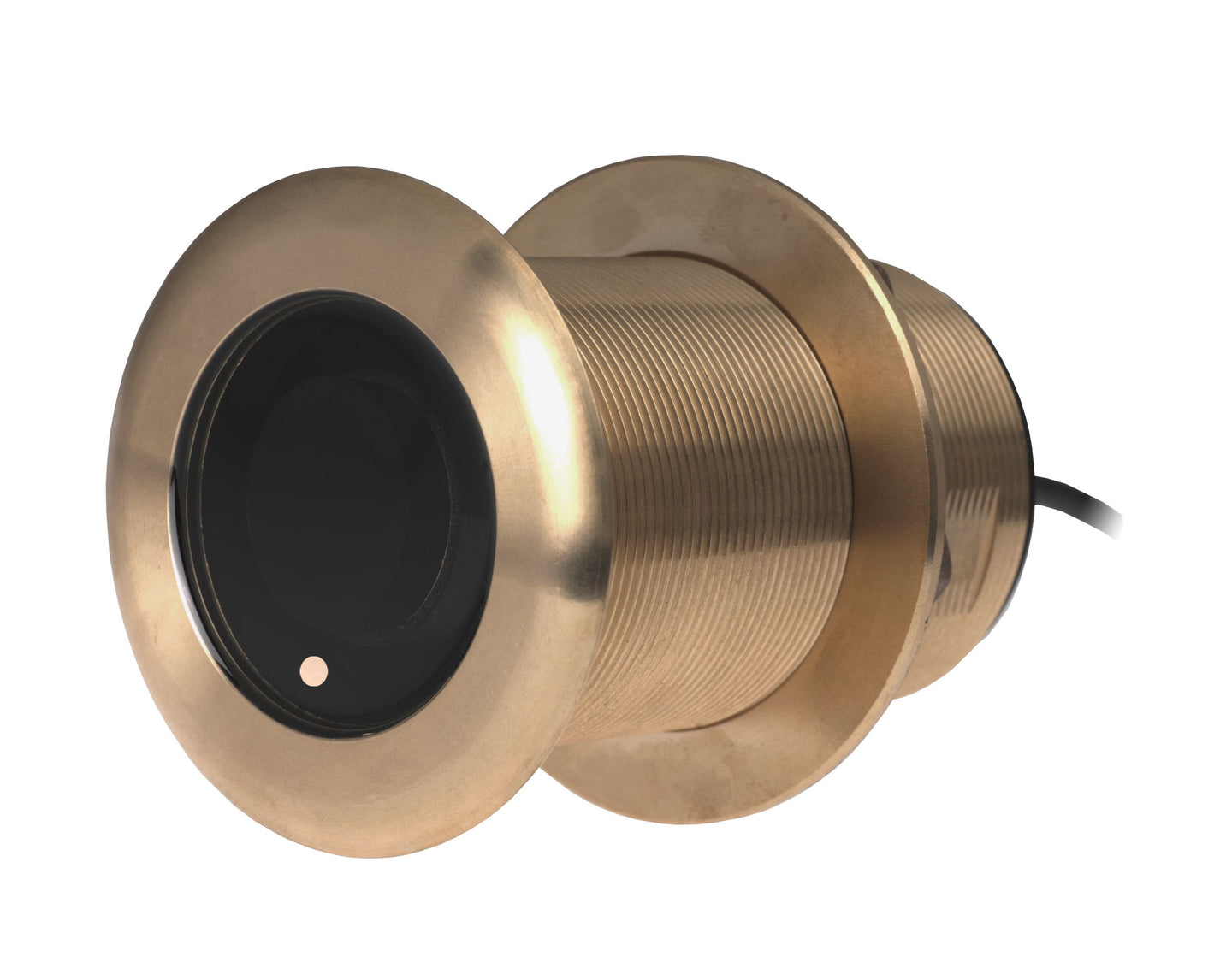

Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug

No reviews yet Write a Review
$982.10
SKU:
B75C-12-L-MM
Condition:
New
5 customers are viewing this product

Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug

$982.10

Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug Product Description

300 W

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

This Tilted Element transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75L is available in two Tilted Element models:

  • Fixed 12° tilted version for 0 to 24° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Airmar B75C-12-L 12d Tilt

Low CHIRP

Model: B75C-12-L-MM
  • Depth & fast-response water-temperature sensor
  • Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
  • Available in 0° and 12° tilted versions
  • 20 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 11 m (36’)
  • Hull Type: Fiberglass or wood
  • Exclusive Xducer ID® technology

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Sound waves will not present as clear a picture of the bottom on the display, but will sound down in very deep areas where high frequency sound waves cannot reach

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications
Hull Deadrise Up to 24°
Acoustic Window Urethane
Weight 1.4 kg (3 lb)

What's in the Box:
  • B75C-12-M-MM


Airmar B75C-12-L 12d tilt low CHIRP model: B75C-12-L-MM depth and fast response water temperature sensor Low-CHIRPS from 40 k Hz to 75 k Hz, beam width 32° to 21° is available in. ..

Frequently Asked Questions (FAQ) About Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug





























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug?

300 W

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

This Tilted Element transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75L is available in two Tilted Element models:

  • Fixed 12° tilted version for 0 to 24° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles
  • This sonar has a wide beamwidth and can be tilted for better results.
  • The sonar is capable of both deep and shallow water readings.
  • It's also available in both 0° and 12° tilted versions.
  • This is the best way to find fish.
  • The B75C-12-L has a depth and water temperature sensor, which makes it an ideal choice for anglers.
  • The 12d Tilt Low CHIRP Model: B75C-12-L-MM is available in both 0& 176; and 12& 176; tilted versions, so you can choose the one that suits your needs.

The Airmar B75C-12-L 12d Tilt Low CHIRP is a depth and fast-response water-temperature sensor. It is a low& 8212;CHIRP model with a beamwidth of 32& 176; to 21& 176; and a frequency range of 40 kHz to 75 kHz. It is available in both 0& 176; and 12& 176; tilted versions. It has

Which mix and match cable useful for this product?

12-Pin Chirp
  • This sonar has a wide beamwidth and can be tilted for better results.
  • The sonar is capable of both deep and shallow water readings.
  • It's also available in both 0° and 12° tilted versions.
  • This is the best way to find fish.
  • The B75C-12-L has a depth and water temperature sensor, which makes it an ideal choice for anglers.
  • The 12d Tilt Low CHIRP Model: B75C-12-L-MM is available in both 0& 176; and 12& 176; tilted versions, so you can choose the one that suits your needs.
  • The Airmar B75C-12-L 12d Tilt Low CHIRP Model: B75C-12-L-MM Depth & Fast Response Water Temperature Sensor is a versatile and high performance sonar that can be used in many different environments.
  • The Airmar B75C-12-L 12d Tilt Low CHIRP Model: B75C-12-L-MM Depth & Fast Response Water Temperature Sensor can be tilted to 12 degrees or 0 degree.
  • Low& 8212;CHIRPS from 40 kHz to 75 kHz, 32& 176; to 21& 176; beamwidth
  • Depth & fast-response water-temperature sensor
  • 20 kHz of total bandwidth

What is the power rating of the product?

300 W

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

Low

What's the Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug package dimensions and weight?

8 (w) X 5 (h) X 12 (l) inches and the weight is: 6.16 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug?

Tilted Element Thru-Hull

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the tilt angle of the product?

12°

What is the display connector of the product?

Cable Required

What is the common use place of the product?

Fishing

What is the connector type of the product?

Airmar 12-Pin (MMC)

What is the length of cable?

9 m (30')

What is the housing material of the product?

Bronze

What is the max depth of the product?

366 m (1200')

What is the deadrise range of product?

8° to 24°

What is the hole size of the product?

70 mm (2-13/16")

What is the low frequency beamwidth of the product?

32°-21°

What is the low frequency level of the product?

40-75 kHz

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

95 mm (3.75")

What is the max deadrise angle of the product?

24°

What is the max deadrise of the product?

Up to 24°

What is the manufacturer notes about Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug?

300 W

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

This Tilted Element transducer has the ceramic element fixed at either a 12° or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B75L is available in two Tilted Element models:

  • Fixed 12° tilted version for 0 to 24° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Buy with the best price Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug for only $854 from NVN Marine! Same day shipping before 3pm.

Airmar B75C-12-L 12d Tilt Low CHIRP With Mix-n-Match Plug Technical Specifications

Type:

Vendor:

Airmar

Weight:

5.95 lb

User Guide:

Product Manual:

Product Brochure:

Product Installation:
