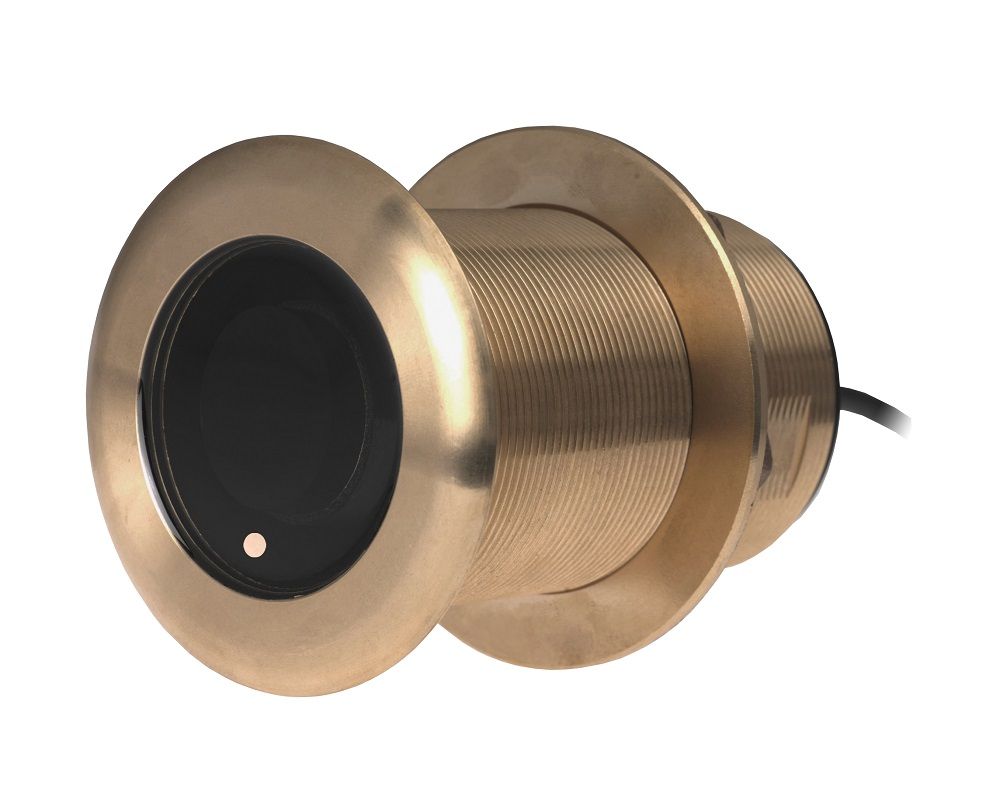

Airmar B75C 0° tlted element Medium CHIRP Bronze Thru Hull with Furuno 10-Pin Mix-N-Match Cable
Model: B75C-0-M-10FAirmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').
When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.
SpecificationsDeadrise Range | 0° to 7° |
Hole Size | 70 mm (2-13/16"") |
Housing Material | Bronze |
Deadrise | 0° to 7° |
Maximum depth | 900ft |
Medium Frequency | 80 to 130 kHz |
Type: | |
---|---|
Vendor: |
Airmar |
Weight: |
5.0 lb |
