Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M

No reviews yet Write a Review
$1,953.85
SKU:
B285C-HW-14HB
Condition:
New
5 customers are viewing this product

Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M

$1,953.85

Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M Product Description

1 kW

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

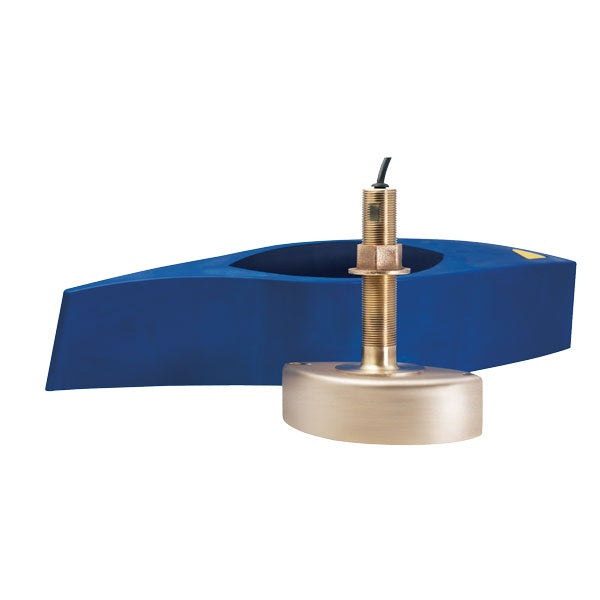

Airmar B285C High Wide 1Kw CHIRP Bronze Thru Hull with Humminbird 14-Pin Mix-N-Match Cable

Model: B285C-HW-14HB
  • Depth & temperature
  • Bronze housing
  • Exclusive Xducer ID® technology

Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Specifications
CHIRP Frequency 150-250kHz
Beam width Constant 25°
Maximum depth 500'

What's in the Box:
  • B285C
  • High Speed Fairing Block
  • MMC-14HB


Airmar B285C height and width 1Kw CHIRP bronze straight-through hull, with Humminbird 14-pin hybrid N-type matching cable-Model: B285C-HW-14HB depth and temperature-bronze shell-exclusive Xducer ID...

Frequently Asked Questions (FAQ) About Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M




























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M?

1 kW

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Which mix and match cable useful for this product?

12-Pin Chirp

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

High Wide

What's the Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M package dimensions and weight?

18.5 (w) X 7 (h) X 25.5 (l) inches and the weight is: 19.27 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M?

Thru-Hull with Fairing

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the connector type of the product?

Humminbird 14-Pin

What is the length of cable?

10 m (33')

What is the display connector of the product?

14HB

What is the common use place of the product?

Fishing, Commercial Fishing

What is the housing material of the product?

Bronze

What is the max depth of the product?

150 m (500')

What is the deadrise range of product?

Up to 28° with fairing

What is the hole size of the product?

30 mm (1-3/16")

What is the high frequency level of the product?

150-250 kHz

What is the high-wide beamwidth of the product?

25°

This product has tilted element?

No

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

121 mm (4.75")

What is the max deadrise of the product?

Up to 26° with fairing

What is the max deadrise angle of the product?

26°

What is the manufacturer notes about Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M?

1 kW

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).



Buy with the best price Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M for only $1699 from NVN Marine! Same day free shipping before 3pm.

Airmar B285C-HW Thru-Hull With Humminbird 14-Pin Mix-N-M Technical Specifications

Type:

Vendor:

Airmar

Weight:

8.0 lb

User Guide:

Product Manual:

Product Brochure:

Product Installation:
